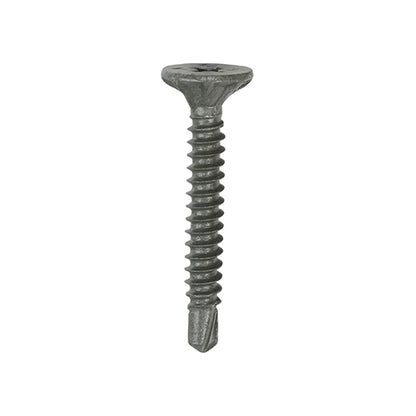

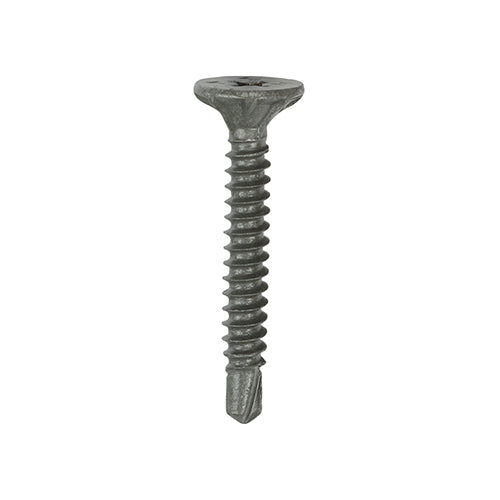

TIMCO Self-Drilling Cement Board Countersunk Exterior Silver Screws - 4.2 x 32

TIMCO Self-Drilling Cement Board Countersunk Exterior Silver Screws - 4.2 x 32

Product Code: 217154

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 22
• CE Standard Web: BS EN 14566:2008
• Colour: Grey
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: Specifically designed for fixing cement board steel dry-lining frames (max. 3.0mm). Self countersinking head for a secure and flush finish. Self-drilling point with a self-tapping thread. Exterior grade coating for superior corrosion resistance in damp or corrosive environments, when compared to standard fasteners.
• Diameter mm: 4.2
• Drill Tip Length mm: 5.00
• Driver Bit Size: PH2
• Effective Thread Length mm: 19
• Feature 1: Organic plating withstands 1,500 hours in salt spray test
• Feature 2: Self-drilling point for fixing to light section steel (Max. 3mm)
• Feature 3: Ribs under the head for improved countersinking
• Feature 4: Fire Classification - A1
• Finish: Exterior Plus
• Gauge: 8
• Head Dia. mm: 10.00
• Head Height mm: 4.00
• Head Type: Countersunk Wafer
• Included Items: PH2 S2 Bit (Qty 1)
• Inner Thread Dia. mm: 2.90
• Length inch: 1
• Length mm: 32
• Material: Carbon Steel
• Max Drilling Thickness mm: 3.0
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 92 x 72 x 58
• Pack Quantity: 200
• Pack Quantity Unit: Pieces

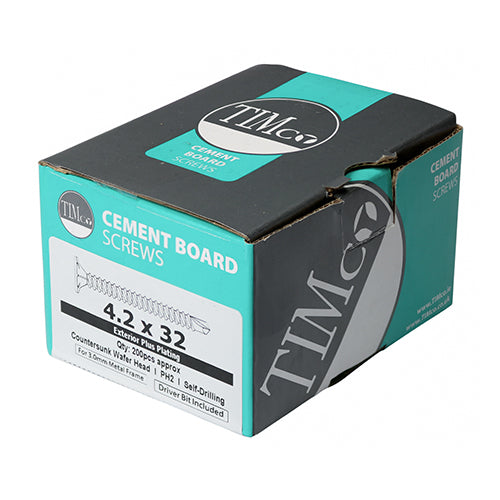

• Pack Type: Box
• Pack Weight kg: 0.585
• Pallet Qty Packs: 1,056
• Point Type: Self-Drilling
• Product Code: 217154
• Rec RPM: 1,800 - 2,500
• Recess Type: Phillips
• Size imp.: 8 x 1
• Size mm: 4.2 x 32
• SKU Barcode: 5056110815725
• Substrates: Cement Board, Steel
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 4.2
• Thread Length mm: 23
• Thread Type: 60° Self-Tapping
