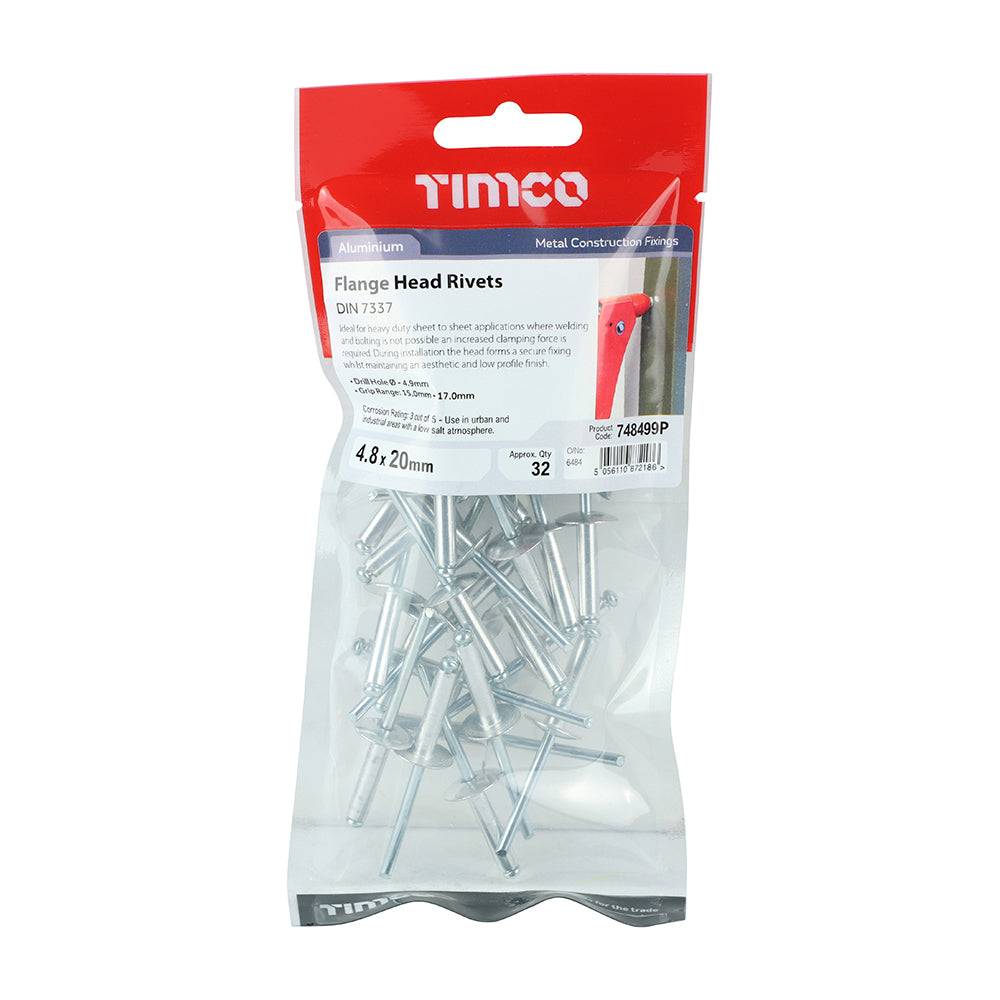

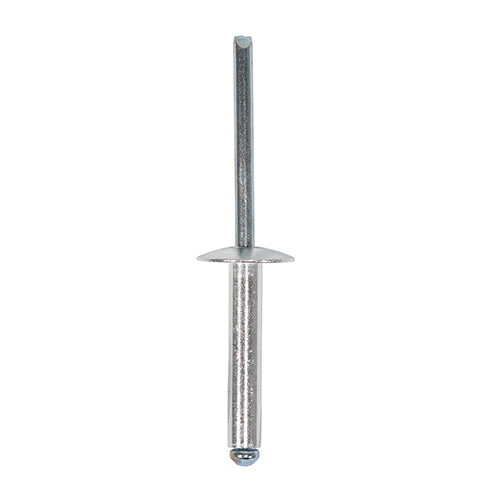

TIMCO Rivets Flange Head Aluminium - 4.8 x 20

TIMCO Rivets Flange Head Aluminium - 4.8 x 20

Product Code: 748499P

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 10
• Collar Dia. mm: 14.0
• Collar Thickness mm: 2.5
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: Ideal for heavy duty sheet to sheet applications where welding and bolting is not possible an increased clamping force is required. During installation the head forms a secure fixing whilst maintaining an aesthetic and low profile finish. The aluminium body ensures consistent performance and an enhanced resistance to corrosion.
• DIN Standard: DIN 7337
• Drill Hole Dia. mm: 4.9
• Feature 1: Aluminium body for an enhanced resistance to corrosion
• Finish: Zinc & Clear Cr3
• Head Dia. mm: 4.8
• Head Length mm: 20
• Head Type: Flange
• Mandrel Dia. mm: 2.70
• Mandrel Length mm: 27
• Material: Aluminium
• Max Grip Range mm: 17.0
• Min Grip Range mm: 15.0
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 15 x 90 x 198
• Pack Quantity: 32
• Pack Quantity Unit: Pieces
• Pack Type: TIMpac
• Pack Weight kg: 0.120
• Product Code: 748499P
• Size Head Dia. x L mm: 4.8 x 20
• SKU Barcode: 5056110872186
• Substrates: Steel, Aluminium, PVCu, Hard Plastic
