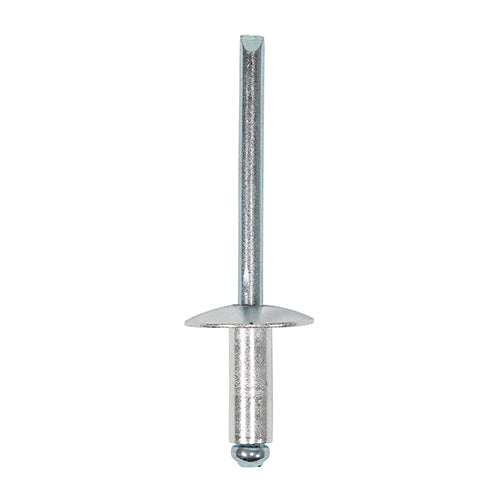

TIMCO Rivets Flange Head Aluminium - 4.8 x 12

TIMCO Rivets Flange Head Aluminium - 4.8 x 12

Product Code: 748918

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 10
• Collar Dia. mm: 14.0
• Collar Thickness mm: 2.5
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: Ideal for heavy duty sheet to sheet applications where welding and bolting is not possible an increased clamping force is required. During installation the head forms a secure fixing whilst maintaining an aesthetic and low profile finish. The aluminium body ensures consistent performance and an enhanced resistance to corrosion.
• DIN Standard: DIN 7337
• Drill Hole Dia. mm: 4.9
• Feature 1: Aluminium body for an enhanced resistance to corrosion
• Finish: Zinc & Clear Cr3
• Head Dia. mm: 4.8
• Head Length mm: 12
• Head Type: Flange
• Mandrel Dia. mm: 2.70
• Mandrel Length mm: 27
• Material: Aluminium
• Max Grip Range mm: 8.0
• Min Grip Range mm: 6.0
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 122 x 116 x 90
• Pack Quantity: 250
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 0.840
• Pallet Qty Packs: 360
• Product Code: 748918
• Size Head Dia. x L mm: 4.8 x 12
• SKU Barcode: 5056110829142
• Substrates: Steel, Aluminium, PVCu, Hard Plastic
