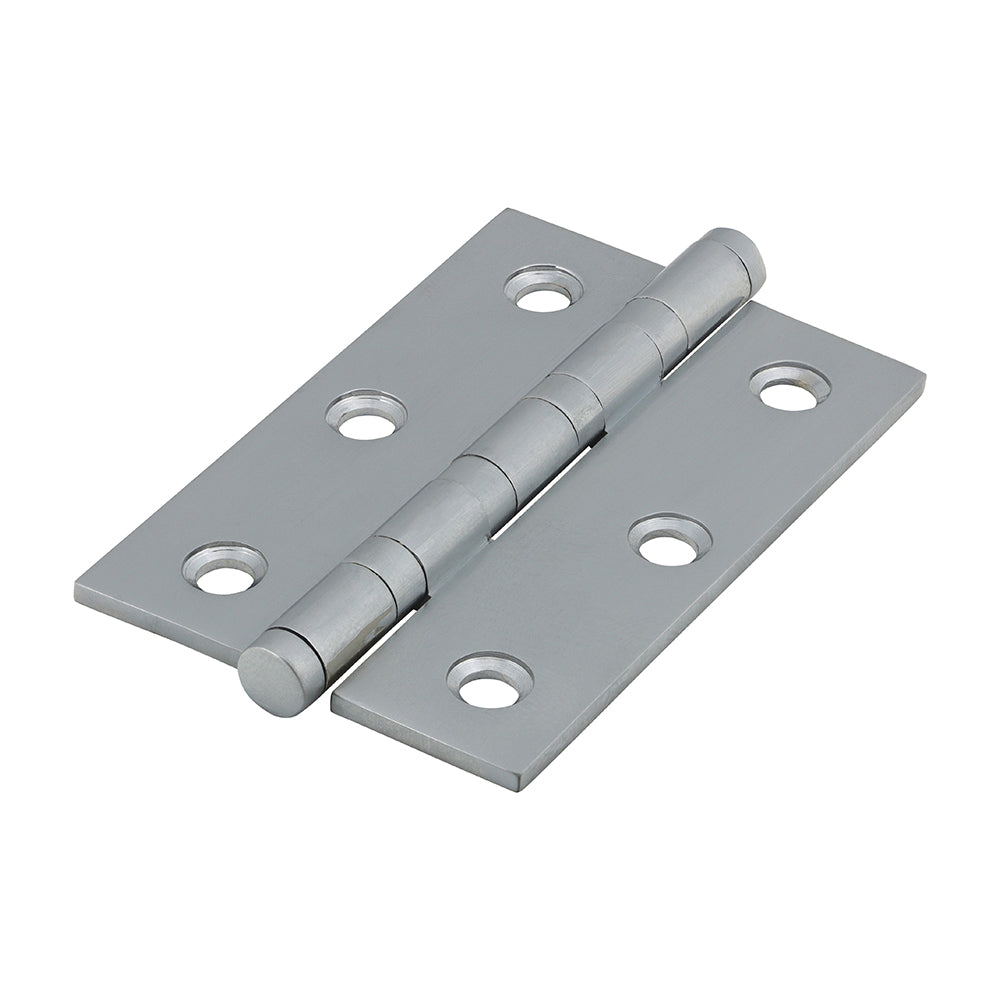

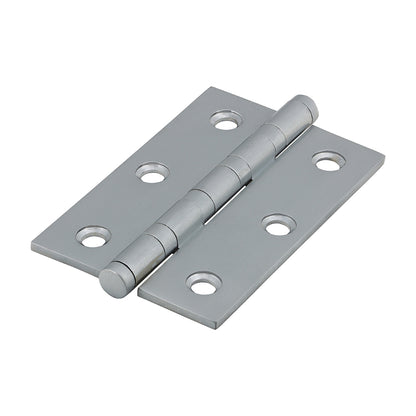

TIMCO Performance Ball Race Hinge - Solid Brass - Satin Chrome - 76 x 50

TIMCO Performance Ball Race Hinge - Solid Brass - Satin Chrome - 76 x 50

Product Code: 234444

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Bearing Type: Brass Ball Bearing
• Brand: TIMCO
• Carton Qty Packs: 80
• Corner Type: Square
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• Description: Ideal for heavy, high quality doors in domestic applications.
• Feature 1: Four ball bearing raced knuckles to prevent wear and provide a lifetime of silent, smooth door operation
• Feature 2: Button tip for improved aesthetics
• Feature 3: Manufactured from solid brass to guarantee no rust and a superior finish
• Feature 4: Available in a variety of finishes
• Finish: Satin Chrome
• Hole Dia. mm: 5.2
• Knuckle Dia. mm: 8.0
• Knuckle Type: Ball Bearing
• Length inch: 3
• Length mm: 76
• Material: Solid Brass
• MOQ: 1
• MOQ Increment: 1
• No. of CSK Screws: 12
• Offers: Clearance
• Open Width mm: 50
• Pack Dimensions L x W x H mm: 120 x 42 x 20
• Pack Quantity: 1
• Pack Quantity Unit: Pairs
• Pack Type: Box
• Pack Weight kg: 0.220
• Pin Material: Brass
• Product Code: 234444
• Rec Screw Dia. mm: 4.0
• Rec Screw Gauge imp.: 8
• Screw Size imp.: 8 x 1
• Screw Size mm: 4.0 x 25
• Screws Required Per Pair: 12
• Size imp.: 3
• Size L x W mm: 76 x 50
• SKU Barcode: 5056110823515
• Thickness mm: 2.50
