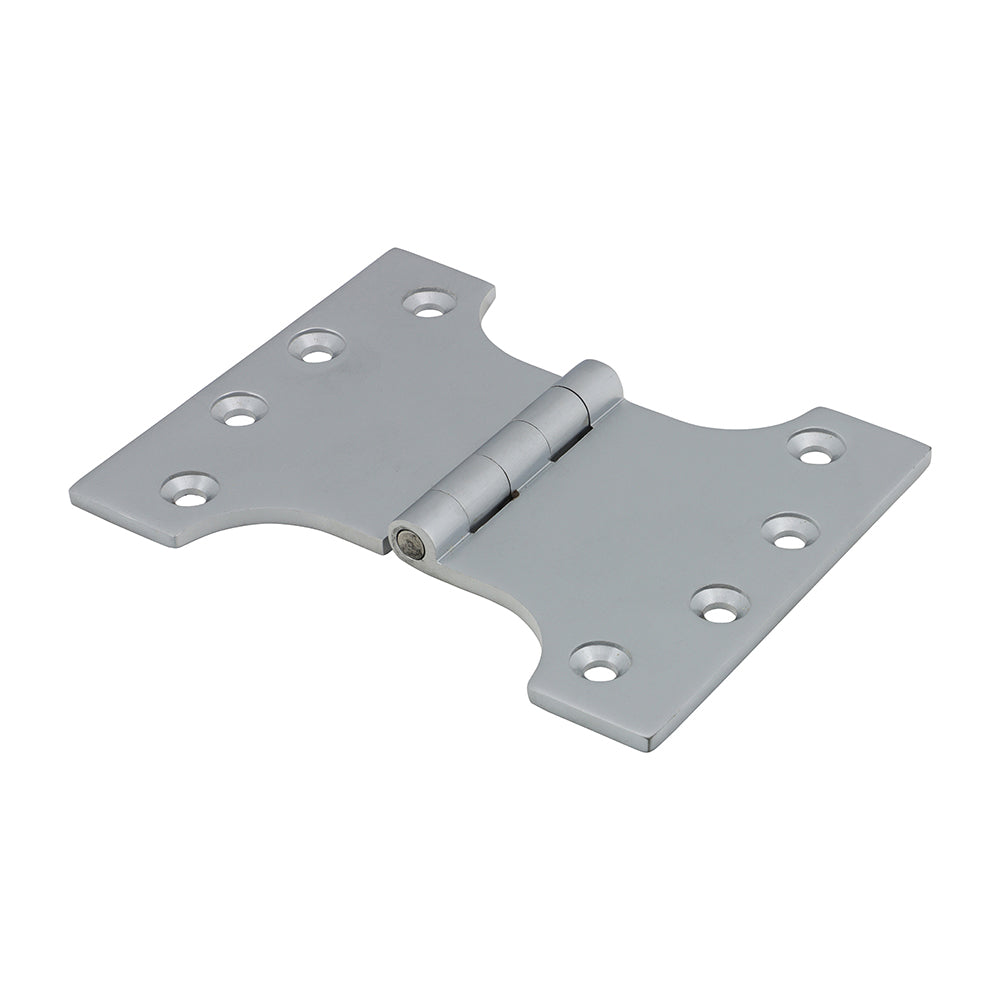

TIMCO Parliament Hinge (488) - Solid Brass - Satin Chrome - 102 x 125

TIMCO Parliament Hinge (488) - Solid Brass - Satin Chrome - 102 x 125

Product Code: 234500

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 20
• Corner Type: Square
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• Description: Commonly used when projecting architraves prevent the door from opening fully.
• Feature 1: Projecting knuckle allows the door to open to 180° maximising doorway and room space
• Feature 2: Manufactured from high quality extruded brass to guarantee no rust and a superior finish
• Feature 3: Available in a variety of finishes
• Finish: Satin Chrome
• Hole Dia. mm: 6.0
• Knuckle Dia. mm: 11.0
• Knuckle Type: Plain
• Length inch: 4
• Length mm: 102
• Material: Solid Brass
• MOQ: 1
• MOQ Increment: 1
• No. of CSK Screws: 16
• Open Width mm: 125
• Pack Dimensions L x W x H mm: 150 x 106 x 34
• Pack Quantity: 1
• Pack Quantity Unit: Pairs
• Pack Type: Box
• Pack Weight kg: 0.800
• Pin Material: Brass
• Product Code: 234500
• Projection mm: 75
• Rec Screw Dia. mm: 5.0
• Rec Screw Gauge imp.: 10
• Screw Size imp.: 10 x 1
• Screw Size mm: 5.0 x 30
• Screws Required Per Pair: 16
• Size imp.: 4
• Size L x W mm: 102 x 125
• SKU Barcode: 5056110823607
• Thickness mm: 4.00
