TIMCO Multi-Functional Hangers Galvanised - 76 x 504 (Pack of 10)

TIMCO Multi-Functional Hangers Galvanised - 76 x 504

Product Code: 76504MFH

Brand: TIMCO

Category: Building Hardware & Supplies

Product Specifications:

• Approval: BS 5268
• Bearing mm: 85
• Brand: TIMCO
• Carton Qty Packs: 50
• Corrosion Rating: 2 - Occasionally damp/wet, rural and sheltered areas

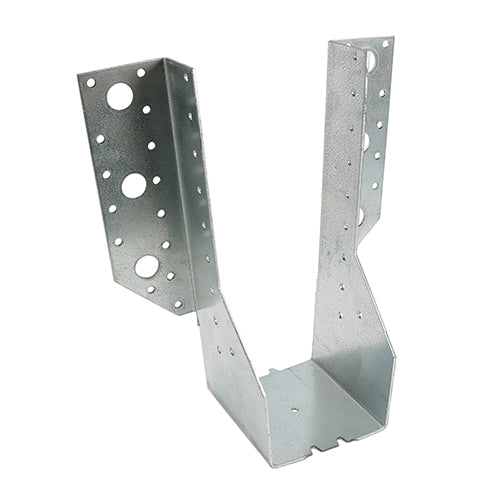

• Description: TIMCO’s Multi-Functional Hangers are designed for applications where additional strength is required or where access to the top of the timber or steel is not available. Designed for use with different fixings to give greater flexibility and improved performance. Manufactured from pre-galvanised steel to give a high level of corrosion resistance. NOTE: Total length refers to the length of the hanger when laid flat.
• Eurocode: 5
• Feature 1: Conforms to Eurocode 5 and service class 2
• Finish: Galvanised
• Height mm: 214
• Material: Carbon Steel
• MOQ: 10
• MOQ Increment: 10
• No. of Bolt Holes M10: 33
• No. of Nail Holes 3.75mm: 33
• Pack Dimensions L x W x H mm: 85 x 76 x 214
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Unit
• Pack Weight kg: 0.640
• Product Code: 76504MFH
• Safe Working Load Long Term kN: 10.45
• Safe Working Load Medium Term kN: 11.95
• Safe Working Load Short Term kN: 12.55
• Service Class: 2
• SKU Barcode: 5022456315779
• Thickness mm: 2.0
• Total Length mm: 504
• Type: Multi-Functional
• Width mm: 76
