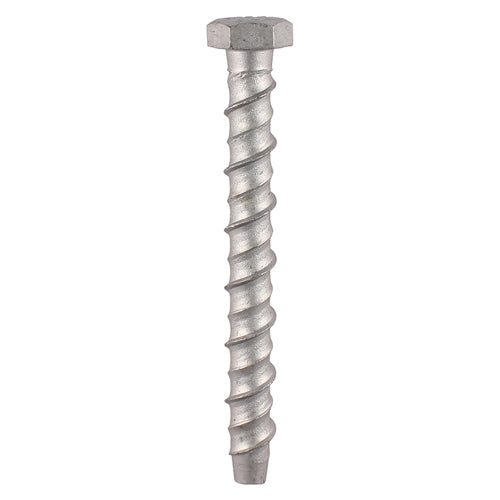

TIMCO Multi-Fix Bolts Hex Head Exterior Silver - 8.0 x 130

TIMCO Multi-Fix Bolts Hex Head Exterior Silver - 8.0 x 130

Product Code: MF8130

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Approval: BS 7671:2018
• Brand: TIMCO
• Carton Qty Packs: 6
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as throughbolts, shield, sleeve and drop-in anchors.
• Diameter mm: 8.0
• Drill Hole Dia. mm: 8.0
• Feature 1: Designed to replace traditional expansion anchors
• Feature 2: TIMCO micro plating technology gives a higher resistance to corrosion and enhances speed of installation
• Feature 3: High-Low parallel threads for ease of insertion and high pull-out values
• Feature 4: Removable & adjustable non-expansion through fixing
• Feature 5: Unique concave thread configuration
• Feature 6: All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
• Finish: Exterior (Silver Organic)
• Fixture Hole Diameter mm: 10.0
• Head Type: Hex
• Length mm: 130
• Max Fixture Thickness mm: 90
• Min Drill Hole Depth mm: 55
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 194 x 92 x 90
• Pack Quantity: 50
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 2.900
• Pallet Qty Packs: 240
• Point Type: Chamfered
• Product Code: MF8130
• Size Dia. x L mm: 8.0 x 130
• SKU Barcode: 5055331827357
• Socket Size mm: 15
• Substrates: Concrete, Brick, Stone, Block, Wood
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 8.0
• Thread Type: High-Low Parallel
