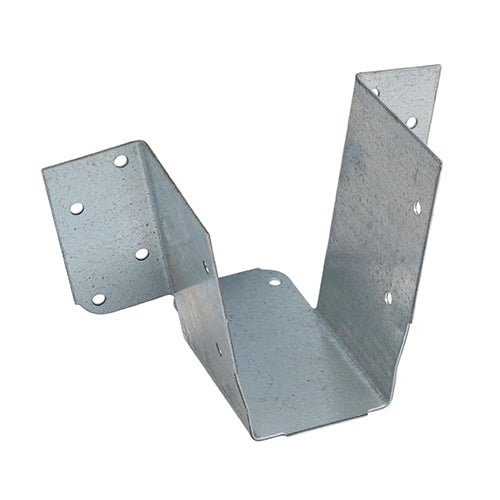

TIMCO Mini Timber Hangers Galvanised - 38 x 75 to 100 (Pack of 20)

TIMCO Mini Timber Hangers Galvanised - 38 x 75 to 100

Product Code: 38THM

Brand: TIMCO

Category: Building Hardware & Supplies

Product Specifications:

• Approval: BS 5268
• Bearing mm: 50
• Brand: TIMCO
• Carton Qty Packs: 100
• Corrosion Rating: 2 - Occasionally damp/wet, rural and sheltered areas
• Description: Designed to give a small and economic light weight timber to timber connection such as loft hatches and decking. Timber to timber joist hangers are suitable for light duty applications such as ceiling joists, decking and trimmers. Manufactured from pre-galvanised steel to give a high level of corrosion resistance. NOTE: Tag on base of the hanger helps avoid rotation.
• Eurocode: 5
• Feature 1: Conforms to Eurocode 5 and service class 2
• Finish: Galvanised
• Height mm: 72
• Joist Size W x H mm: 38 x 75 to 100
• Material: Carbon Steel
• MOQ: 20
• MOQ Increment: 20
• No. of Nail Holes 3.75mm: 14
• Pack Dimensions L x W x H mm: 50 x 38 x 72
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Unit
• Pack Weight kg: 0.090
• Product Code: 38THM
• Safe Working Load Long Term kN: 3.47
• Safe Working Load Medium Term kN: 3.97
• Safe Working Load Short Term kN: 4.17
• Service Class: 2
• SKU Barcode: 5022456313515
• Thickness mm: 1.0
• Type: Mini
• Width mm: 38
