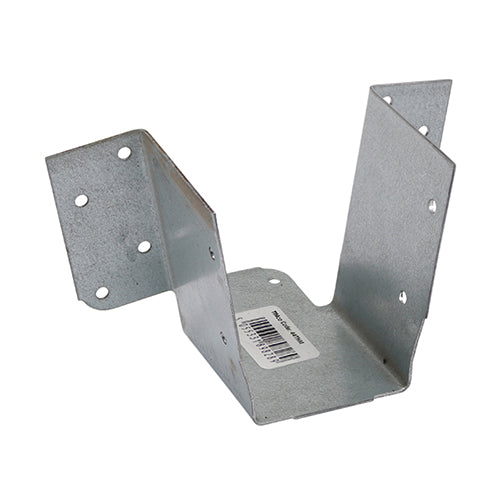

TIMCO Mini Timber Hangers A2 Stainless Steel - 44 x 75 to 100 (Pack of 10)

TIMCO Mini Timber Hangers A2 Stainless Steel - 44 x 75 to 100

Product Code: 44THMS

Brand: TIMCO

Category: Building Hardware & Supplies

Product Specifications:

• Approval: BS 5268
• Bearing mm: 50
• Brand: TIMCO
• Carton Qty Packs: 50
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• Description: Designed to give a small and economic light weight timber to timber connection such as loft hatches and decking. Timber to timber joist hangers are suitable for light duty applications such as ceiling joists, decking and trimmers. NOTE: Tag on base of the hanger helps avoid rotation. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material h
• Eurocode: 5
• Feature 1: Conforms to Eurocode 5 and service class 3
• Height mm: 97
• Joist Size W x H mm: 44 x 75 to 100
• Material: Austenitic Stainless Steel (A2-304)
• MOQ: 10
• MOQ Increment: 10
• No. of Nail Holes 3.75mm: 20
• Pack Dimensions L x W x H mm: 50 x 44 x 97
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Unit
• Pack Weight kg: 0.120
• Product Code: 44THMS
• Safe Working Load Long Term kN: 3.96
• Safe Working Load Medium Term kN: 4.53
• Safe Working Load Short Term kN: 4.75
• Service Class: 3
• SKU Barcode: 5022456321909
• Thickness mm: 1.0
• Type: Mini
• Width mm: 44
