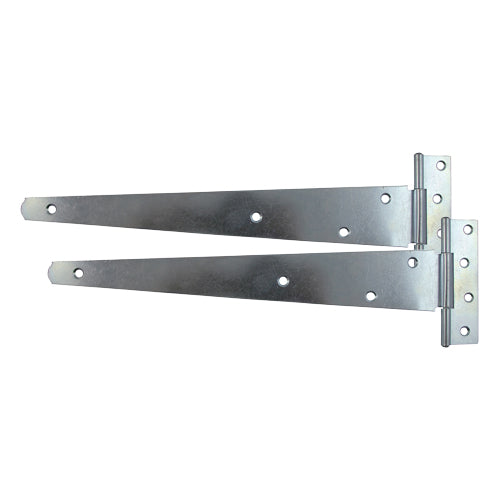

TIMCO Medium Tee Hinges Zinc - 14"

TIMCO Medium Tee Hinges Zinc - 14"

Product Code: MTH14ZB

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Band Length inch: 14
• Band Length mm: 350
• Band Thickness mm: 2.0
• Brand: TIMCO
• Carton Qty Packs: 30
• Corrosion Rating: 2 - Occasionally damp/wet, rural and sheltered areas
• Description: Ideal for medium weight regular use gates, shed and garage doors in domestic applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings not included.
• Finish: Zinc
• Knuckle Dia. mm: 9.5
• Leaf Size L x W mm: 115 x 25
• Material: Carbon Steel
• Max Gate Weight kg: 30
• MOQ: 1
• MOQ Increment: 1
• No. of Screw Holes: 14
• Pack Dimensions L x W x H mm: 160 x 20 x 460
• Pack Quantity: 1
• Pack Quantity Unit: Pairs
• Pack Type: Plain Bag
• Pack Weight kg: 0.630
• Product Code: MTH14ZB
• Rec Screw Dia. mm: 4.0
• Rec Screw Gauge imp.: 8
• SKU Barcode: 5055893356470
• To Suit Gate Width mm: 700 - 1050
