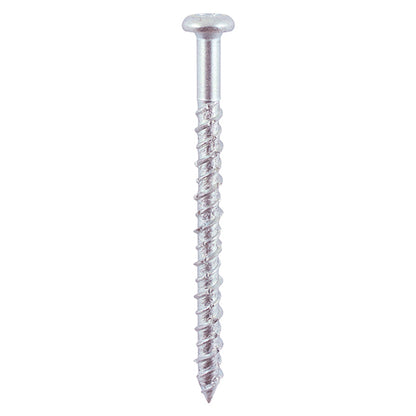

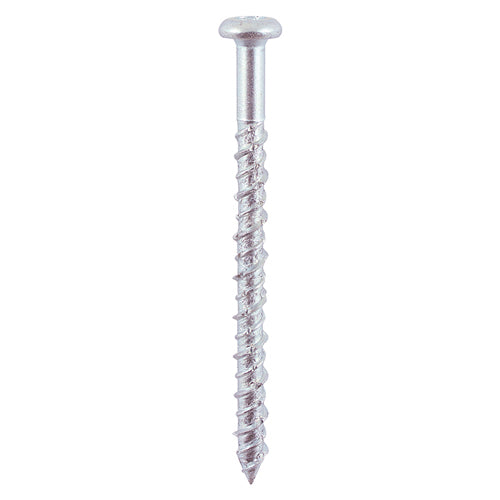

TIMCO Masonry Screws Pan Head Silver - 6.0 x 40

TIMCO Masonry Screws Pan Head Silver - 6.0 x 40

Product Code: 640MFPAN

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Approval: BS 7671:2018
• Brand: TIMCO
• Carton Qty Packs: 18
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: A rapid and effective light duty fixing ideal for attaching ironmongery to concrete, stone and brick without the need for nylon plugs. Pan head to improve clamping.
• Diameter mm: 6.0
• Drill Hole Dia. mm: 5.0
• Driver Bit Size: TX25
• Feature 1: TX25 TX Drive recess reduces wear & camming-out
• Feature 2: Serrated V-threads to achieve optimum insertion
• Feature 3: High-Low threads for ease of insertion
• Feature 4: All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire
• Finish: Zinc
• Fixture Hole Diameter mm: 6.5
• Head Type: Pan
• Included Items: TX25 S2 Bit (Qty 1)
• Length mm: 40
• Material: Carbon Steel
• Max Fixture Thickness mm: 15
• Min Drill Hole Depth mm: 35
• Min Embedment Depth mm: 25
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 92 x 82 x 80
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 0.640
• Pallet Qty Packs: 648
• Point Type: Sharp
• Product Code: 640MFPAN
• Recess Type: TX Drive
• Size Dia. x L mm: 6.0 x 40
• SKU Barcode: 5055893301845
• Substrates: Concrete, Brick, Wood
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 6.0
• Thread Type: High-Low with V Flutes
