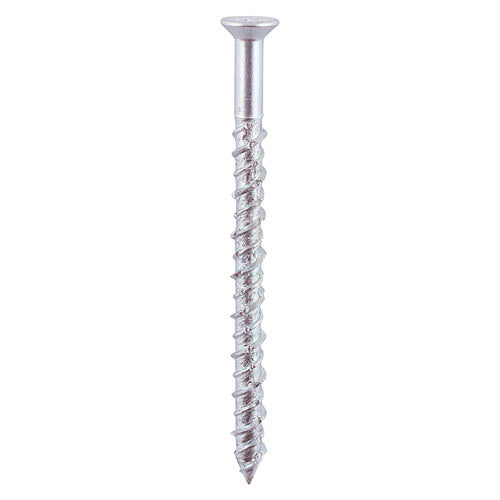

TIMCO Masonry Screws Countersunk Silver - 6.0 x 80

TIMCO Masonry Screws Countersunk Silver - 6.0 x 80

Product Code: 725010

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Approval: BS 7671:2018
• Brand: TIMCO
• Carton Qty Packs: 10
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: A rapid and effective light duty fixing ideal for attaching ironmongery to concrete, stone and brick without the need for nylon plugs. Countersunk head for a flush finish.
• Diameter mm: 6.0
• Drill Hole Dia. mm: 5.0
• Driver Bit Size: TX25
• Feature 1: TX25 TX Drive recess reduces wear & camming-out
• Feature 2: Serrated V-threads to achieve optimum insertion
• Feature 3: High-Low threads for ease of insertion
• Feature 4: All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire
• Finish: Zinc
• Fixture Hole Diameter mm: 6.5
• Head Type: Countersunk
• Length mm: 80
• Material: Carbon Steel
• Max Fixture Thickness mm: 55
• Min Drill Hole Depth mm: 35
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 15 x 90 x 163
• Pack Quantity: 8
• Pack Quantity Unit: Pieces
• Pack Type: TIMpac
• Pack Weight kg: 0.090
• Pallet Qty Packs: 6,000
• Point Type: Sharp
• Product Code: 725010
• Recess Type: TX Drive
• Size Dia. x L mm: 6.0 x 80
• SKU Barcode: 5056110802862
• Substrates: Concrete, Brick, Wood
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 6.0
• Thread Type: High-Low with V Flutes
