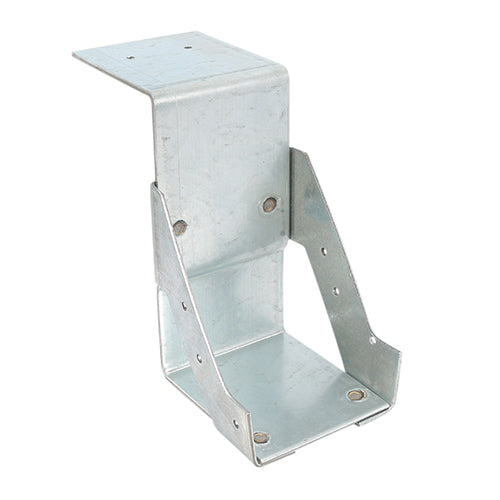

TIMCO Masonry Joist Hangers Galvanised - 75 x 150 (Pack of 10)

TIMCO Masonry Joist Hangers Galvanised - 75 x 150

Product Code: 75150WMH

Brand: TIMCO

Category: Building Hardware & Supplies

Product Specifications:

• Approval: BS 5628
• Bearing mm: 80
• Brand: TIMCO
• Carton Qty Packs: 50
• CE Standard Web: BS EN 845-1:2013+A1:2016
• Corrosion Rating: 2 - Occasionally damp/wet, rural and sheltered areas
• Description: The TIMCO Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.
• Eurocode: 6
• Feature 1: Conforms to Eurocode 6 and service class 2
• Finish: Galvanised
• Height mm: 140
• Joist Size W x H mm: 75 x 150
• Material: Carbon Steel
• MOQ: 10
• MOQ Increment: 10
• No. of Nail Holes 3.75mm: 6
• Pack Dimensions L x W x H mm: 140 x 75 x 80
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Unit
• Pack Weight kg: 0.590
• Product Code: 75150WMH
• Safe Working Load kN: 3.5
• Service Class: 2
• SKU Barcode: 5022456313256
• Thickness mm: 2.4
• Type: Welded
• Width mm: 75
