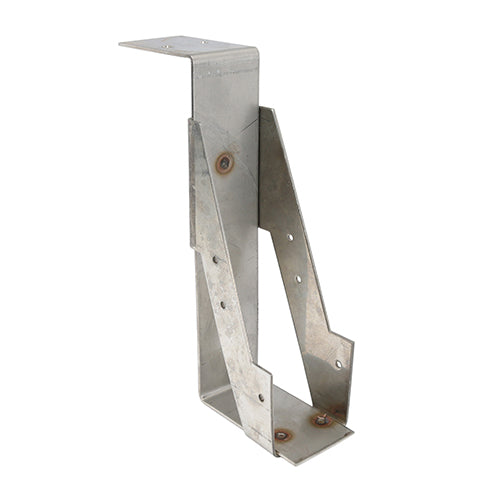

TIMCO Masonry Joist Hangers A2 Stainless Steel - 47 x 225 (Pack of 6)

TIMCO Masonry Joist Hangers A2 Stainless Steel - 47 x 225

Product Code: 47225WMHS

Brand: TIMCO

Category: Building Hardware & Supplies

Product Specifications:

• Approval: BS 5628
• Bearing mm: 80
• Brand: TIMCO
• Carton Qty Packs: 30
• CE Standard Web: BS EN 845-1:2013+A1:2016
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• Description: The TIMCO Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
• Eurocode: 6
• Feature 1: Conforms to Eurocode 6 and service class 3
• Feature 2: Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber
• Height mm: 215
• Joist Size W x H mm: 47 x 225
• Material: Austenitic Stainless Steel (A2-304)
• MOQ: 6
• MOQ Increment: 6
• No. of Nail Holes 3.75mm: 6
• Pack Dimensions L x W x H mm: 80 x 47 x 215
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Unit
• Pack Weight kg: 0.560
• Product Code: 47225WMHS
• Safe Working Load kN: 3.5
• Service Class: 3
• SKU Barcode: 5022456320728
• Thickness mm: 2.4
• Type: Welded
• Width mm: 47
