TIMCO Lipped Drop In Anchors Silver - M8

TIMCO Lipped Drop In Anchors Silver - M8

Product Code: 08LWA

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Anchor Length mm: 30
• Approval: BS 7671:2018
• Brand: TIMCO
• Carton Qty Packs: 12
• Centre Spacing mm: 90
• Corrosion Rating: 1 - Clean, dry & low humidity environments

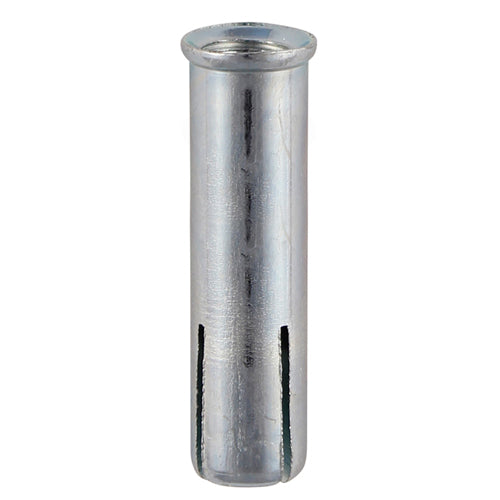

• Description: An internally threaded hammer set expansion anchor for heavy duty anchoring into concrete. The lip allows the anchor to sit flush against the surface, preventing the anchor from being inserted too far. Also known as wedge anchors.
• Drill Hole Dia. mm: 10.0
• Feature 1: All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
• Finish: Zinc
• Fixture Hole Diameter mm: 10.0
• Length mm: 30
• Material: Carbon Steel
• Min Drill Hole Depth mm: 30
• Min Thread Length mm: 14
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 122 x 38 x 90
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.185
• Pallet Qty Packs: 720
• Product Code: 08LWA
• Size Thread Dia. x L mm: M8 x 30
• SKU Barcode: 5055017563159
• Substrates: Concrete
• Thread Dia. mm: M8
• Thread Length mm: 14
• Thread Type: Metric
• Type: Lipped
