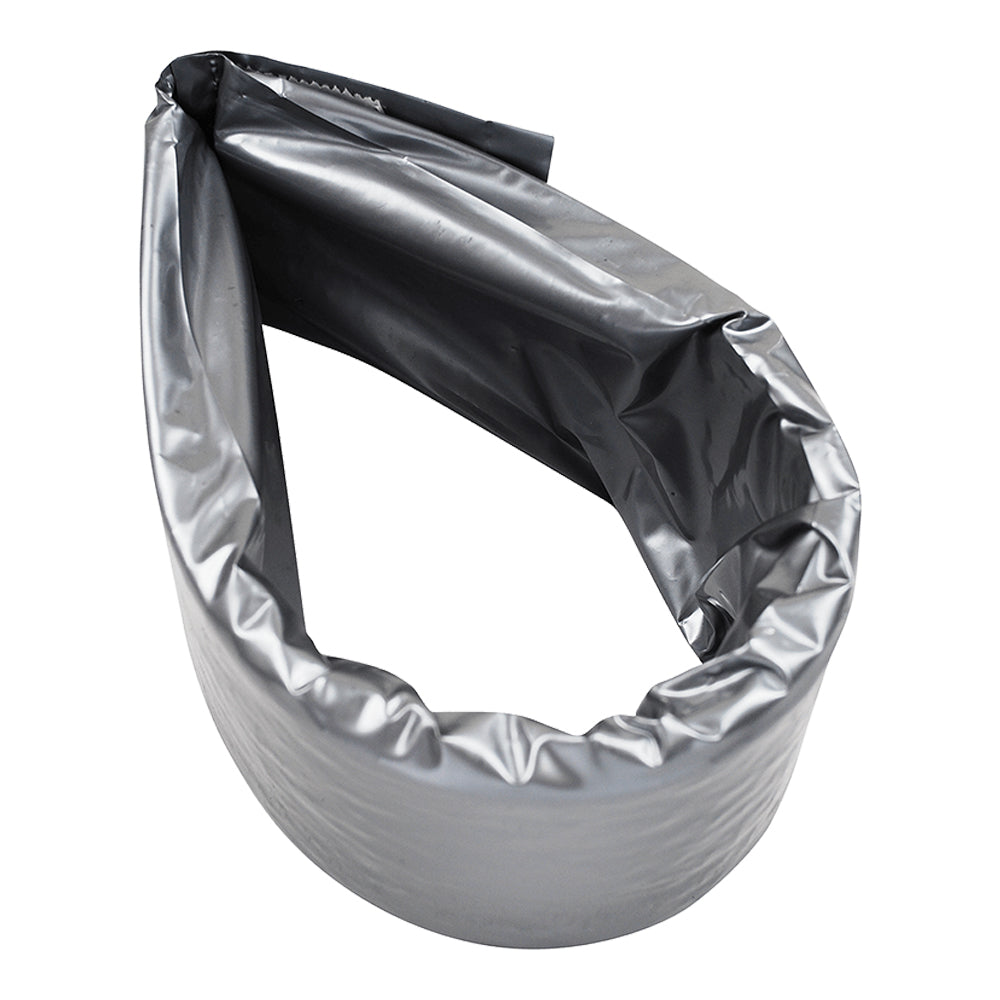

TIMCO Intumescent Pipe Wrap 400 Series (4hr) - to suit pipe size 82mm

TIMCO Intumescent Pipe Wrap 400 Series (4hr) - to suit pipe size 82mm

Product Code: 487289

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Approval: BS EN 1366-3, BS476 part 20 1987
• Brand: TIMCO
• CE Standard Web: CE Marked
• Certifire Number: CF635
• Description: For installation around plastic piping/trunking passing through fire resistant structures such as walls & doors. During the primary construction phase of projects, tolerance is in built to enable the fitting of a pipe wrap once the other services have been installed. In case of fire the intumescent material expands & crushes the pipe or trunking, sealing off this area & maintaining the integrity of the structural elements through which it passes
• Feature 1: Easy to place around pipes and trunking to slide into position
• Feature 2: Intumescent material unaffected by water, non-flaking and difficult to tear
• Feature 3: Soil, waste and drainage 'above ground' applications
• Feature 4: Can be used with concrete and masonry walls and concrete floor constructions
• Feature 5: 4 hour fire rating in vertical & horizontal applications
• Feature 6: 10 year guarantee
• Fire Rating: 240 Minutes
• Length mm: 285
• Material: Graphite
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 356 x 96 x 12
• Pack Quantity: 1
• Pack Quantity Unit: Each

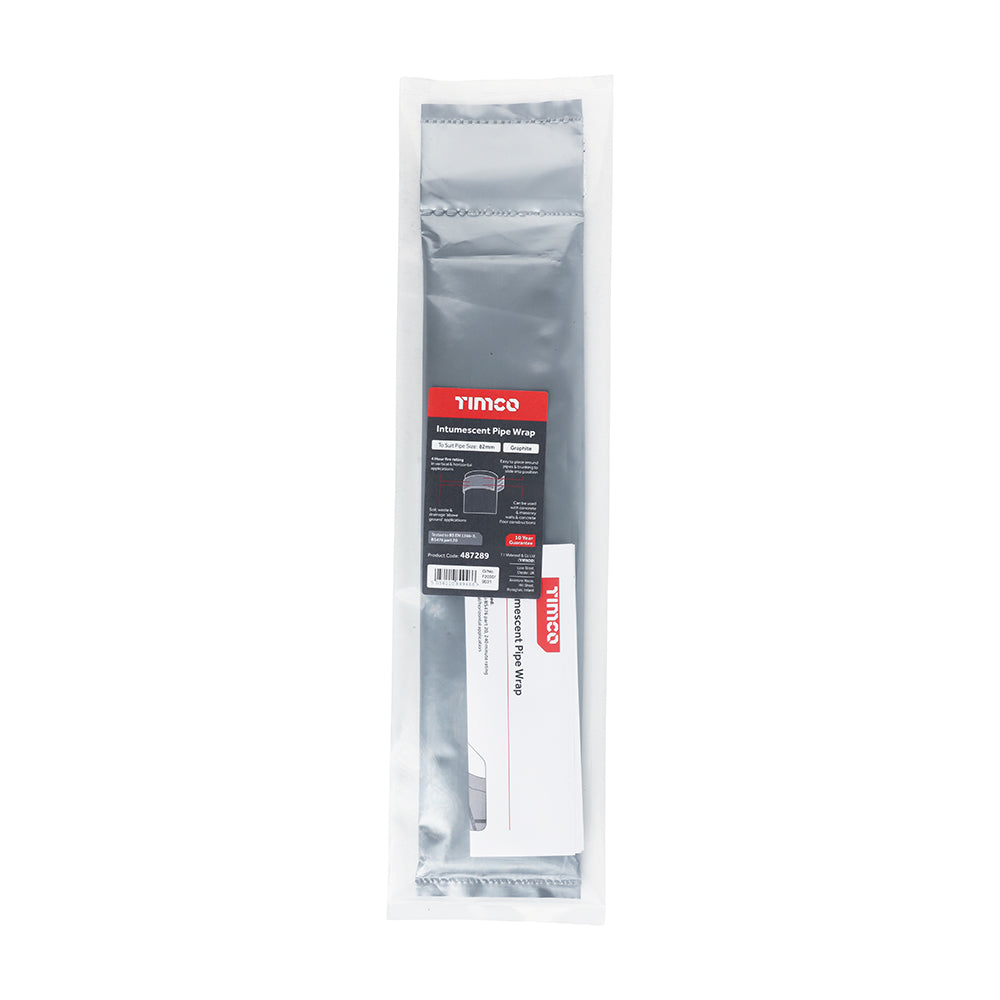

• Pack Type: Bag
• Pack Weight kg: 0.160
• Product Code: 487289
• Size mm: 285 x 80 x 5
• SKU Barcode: 5056110899466
• Thickness mm: 5
• To Suit Pipe Size mm: 82
• Width mm: 80
