TIMCO Intumescent Pipe Collar 400 Series (4hr) - to suit pipe size 82mm

TIMCO Intumescent Pipe Collar 400 Series (4hr) - to suit pipe size 82mm

Product Code: 487566

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Approval: BS EN 1366-3, BS476 part 20 1987
• Brand: TIMCO
• Carton Qty Packs: 10
• CE Standard Web: CE Marked
• Certifire Number: CF635

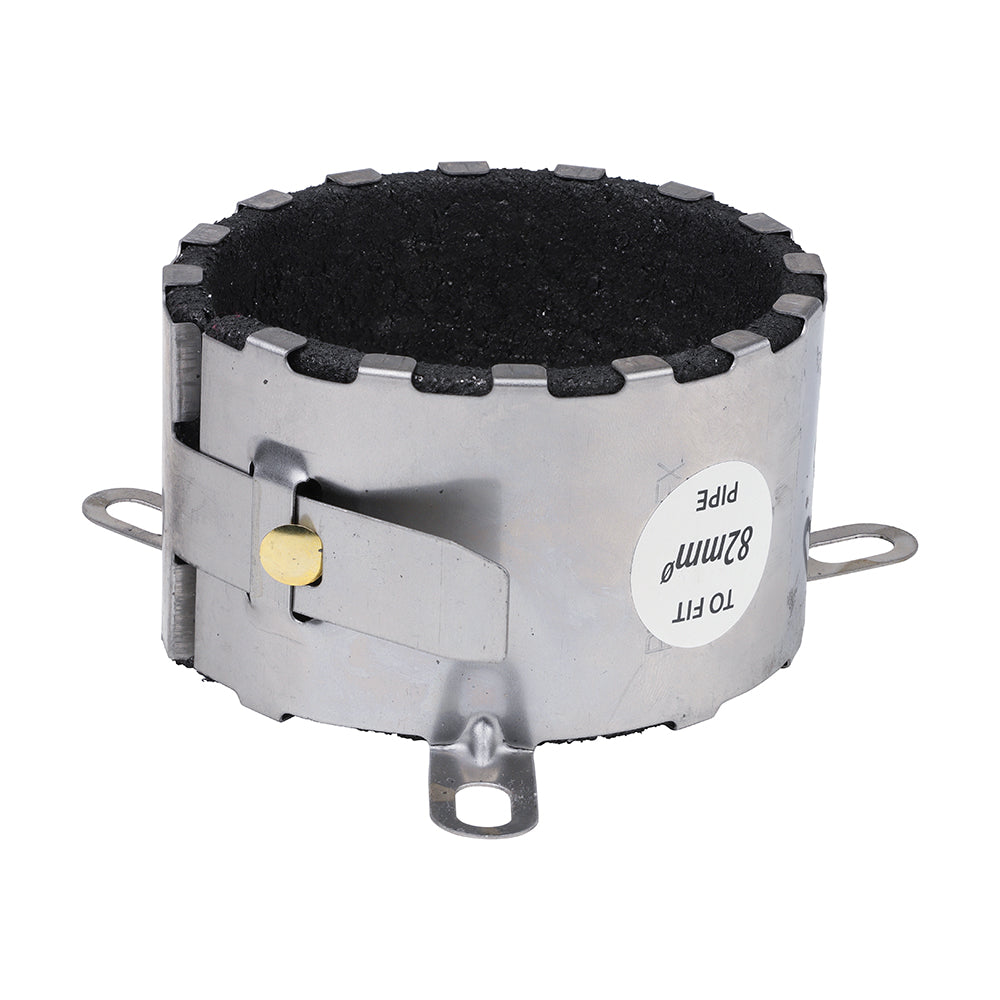

• Description: Designed for retro-fit to plastic piping or trunking where it passes through fire resistant structures such as walls or floors. In the event of a fire, the collar's intumescent core rapidly expands to crush the pipe or trunking, which seals off the area and maintains the fire integrity of the structural element.
• Diameter mm: 95
• Feature 1: Stainless Steel outer casing
• Feature 2: Tab closing device & welded lugs for quick & easy installation
• Feature 3: Can be face fixed in a wall or ceiling structure
• Feature 4: Intumescent material unaffected by water, non-flaking and difficult to tear
• Feature 5: Suitable for use on concrete, masonry and plasterboard partitions (PPC25 - PPC160 only)
• Feature 6: Soil, waste and drainage 'above ground' applications
• Feature 7: 4 hour fire rating in vertical & horizontal applications
• Feature 8: 10 year guarantee
• Fire Rating: 240 Minutes
• Height mm: 60
• Material: Graphite, Stainless Steel
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 155 x 151 x 69
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Bag
• Pack Weight kg: 0.240
• Pallet Qty Packs: 600
• Product Code: 487566
• Size mm: 95 x 60
• SKU Barcode: 5056110899428
• To Suit Pipe Size mm: 82
