TIMCO Heavy Locking Drop Down Bolt Hot Dipped Galvanised - 18"

TIMCO Heavy Locking Drop Down Bolt Hot Dipped Galvanised - 18"

Product Code: LDDB18GP

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Bolt Dia. mm: 14.0
• Bolt Length inch: 18
• Bolt Length mm: 450
• Brand: TIMCO
• Carriage Bolt Size mm: M6 x 50
• Carton Qty Packs: 10
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• CSK Screw Size mm: 4.0 x 30

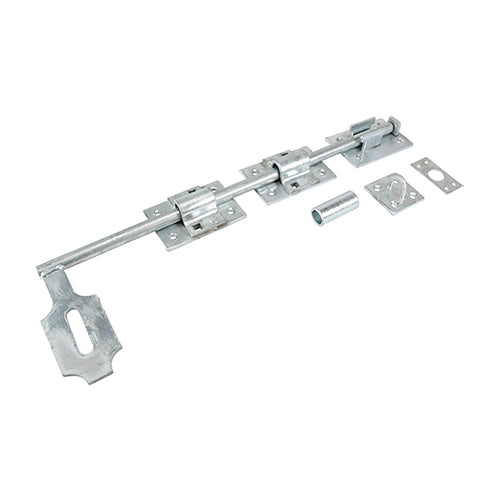

• Description: Ideal for securing the bottom of gates and doors in commercial and industrial applications. The bolts are pad-lockable and fixed with carriage bolts for added security. Extended bolt length for ease of operation and an adjustable bolt throw by moving the keep position. Fixings included.
• Finish: Hot Dipped Galvanised
• Flat Keep Hole Dia. mm: 20.0
• Flat Keep Size L x W mm: 60 x 29
• Included Items: M6 x 50mm Carriage Bolts (Qty 6) M6 Washers (Qty 6) M6 Hex Full Nuts (Qty 6) 4.0 x 30mm Countersunk Screws (Qty 16)
• Material: Carbon Steel
• Max Padlock Shackle Diameter mm: 16.0
• MOQ: 1
• MOQ Increment: 1
• No. of Bolt Holes: 4
• No. of Carriage Bolts: 6
• No. of CSK Screws: 16
• No. of Nuts: 6
• No. of Screw Holes: 16
• No. of Washers: 6
• Nut Size mm: M6
• Nut Type: Hex Full
• Pack Dimensions L x W x H mm: 40 x 160 x 530
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: TIMbag
• Pack Weight kg: 1.750
• Plate Size L x W mm: 95 x 64
• Product Code: LDDB18GP
• Rec Screw Dia. mm: 4.0
• Rec Screw Gauge imp.: 8
• SKU Barcode: 5055893366714
• Socket Keep Size Dia. x L mm: 19.0 x 50
• Staple Plate Size L x W mm: 65 x 55
• To Fit Carriage Bolt Dia. mm: M6
• Washer Size mm: M6
