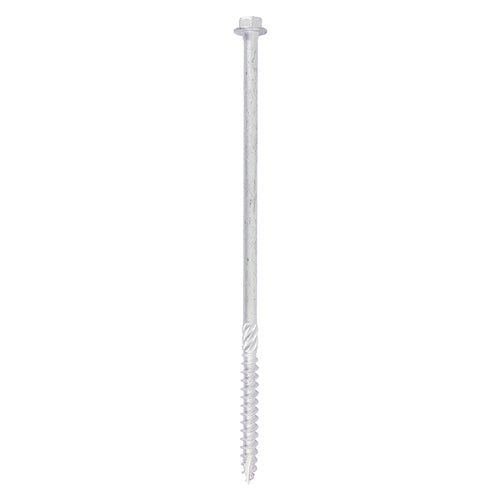

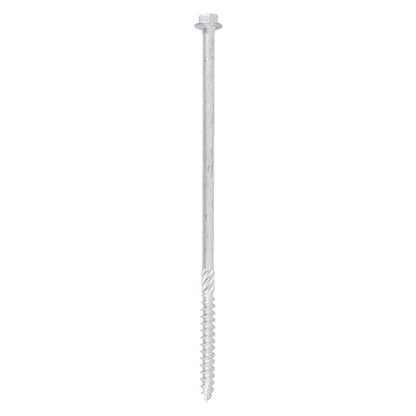

TIMCO Heavy Duty Timber Screws Hex Flange Head Exterior Silver - 10 x 200

TIMCO Heavy Duty Timber Screws Hex Flange Head Exterior Silver - 10 x 200

Product Code: 10200INI

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 5
• CE Standard Web: BS EN 14592:2008
• Colour: Silver
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: Designed as an alternative to the traditional coach screw. This heavy duty screw dramatically decreases installation time as it doesn’t require a pilot hole into most wood types. This screw is ideal for external applications or where extra strength is required. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test.
• Diameter mm: 10.0
• Feature 1: Hex head countersunk with a fixed washer
• Feature 2: Patented silver corrosion resistant plating
• Feature 3: 50° deep single thread to provide a secure fixing with high pull-out resistance
• Feature 4: Single slash point to reduce torque and the risk of timber splitting at low edge distance
• Feature 5: Helix removes debris and helps improve clamping
• Finish: Exterior (Silver Organic)
• Fixed Washer Dia. mm: 18.11
• Head Type: Hex Flange
• Included Items: Socket Driver (Qty 1)
• Inner Thread Dia. mm: 6.56
• Length mm: 200
• Material: Carbon Steel
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 20 x 130 x 290
• Pack Quantity: 10
• Pack Quantity Unit: Pieces
• Pack Type: TIMbag
• Pack Weight kg: 0.801
• Pallet Qty Packs: 600
• Point Type: 25° Sharp with Single Slash
• Product Code: 10200INI
• Recess Type: External Hex
• Shank Type: Helix
• Size mm: 10.0 x 200
• SKU Barcode: 5055893387443
• Socket Size mm: 13
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 10.0
• Thread Length mm: 60
• Thread Type: 50° Single Deep
