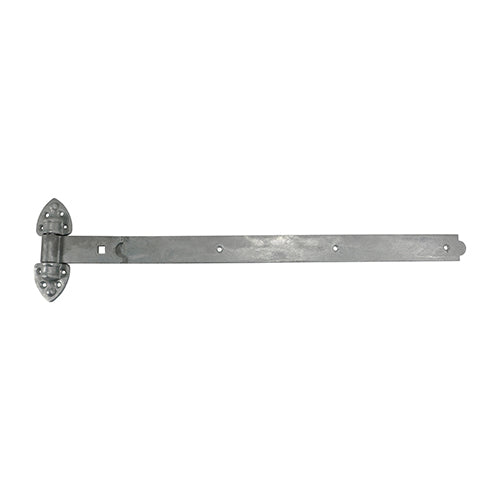

TIMCO Heavy Duty Reversible Hinges Hot Dipped Galvanised - 1050mm

TIMCO Heavy Duty Reversible Hinges Hot Dipped Galvanised - 1050mm

Product Code: HRH1050G

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Band Length inch: 42
• Band Length mm: 1050
• Band Thickness mm: 5.6
• Band Width mm: 50
• Brand: TIMCO
• Carriage Bolt Size mm: M10 x 100
• Carton Qty Packs: 2 Pairs
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• CSK Screw Size mm: 6.0 x 40
• Description: Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
• Finish: Hot Dipped Galvanised
• Included Items: M10 x 100mm Carriage Bolts (Qty 2) M10 Hex Full Nuts (Qty 2) M10 Washers (Qty 2) 6.0 x 40mm Countersunk Screws (Qty 26)
• Material: Carbon Steel
• MOQ: 1
• MOQ Increment: 1
• No. of Bolt Holes: 2
• No. of Carriage Bolts: 2
• No. of CSK Screws: 26
• No. of Nuts: 2
• No. of Screw Holes: 30
• No. of Washers: 2
• Nut Size mm: M10
• Nut Type: Hex Full
• Pack Dimensions L x W x H mm: 152 x 30 x 1219
• Pack Quantity: 1
• Pack Quantity Unit: Pairs
• Pack Type: Plain Bag
• Pack Weight kg: 6.420
• Pallet Qty Packs: 88 Pairs
• Pin Dia. inch:
• Pin Dia. mm: 19.0
• Product Code: HRH1050G
• Rec Screw Dia. mm: 6.0
• Rec Screw Gauge imp.: 12
• SKU Barcode: 5055893360798
• To Fit Carriage Bolt Dia. mm: M10
• To Suit Gate Width mm: 2100 - 3150
• Type: Reversible
• Washer Size mm: M10
