TIMCO FIX-PA Insulation Fixings - 10.0 x 160

TIMCO FIX-PA Insulation Fixings - 10.0 x 160

Product Code: PA160

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Application: Facade Insulation Systems, External Thermal Insulation Composite Systems (ETICS)
• Approval: Regulation (EU) 305/2011
• Benefit 1: rigid polyamide pin provides a reliable fixing.
• Benefit 2: double anchoring zones (35mm & 70mm) meaning one dowel can be used in different insulation thicknesses.
• Benefit 3: for easier installation of softer materials such as insulation wool.
• Benefit 4: when used with the 67mm disc cutter (ZPFS) and styrofoam insulation discs (ZB100).
• Benefit 5: CE approved to Regulation (EU) 305/2011 and third-party tested (ETA-19/0573).
• Brand: Ziel-Plast
• Carton Qty Packs: N/A
• Colour: White

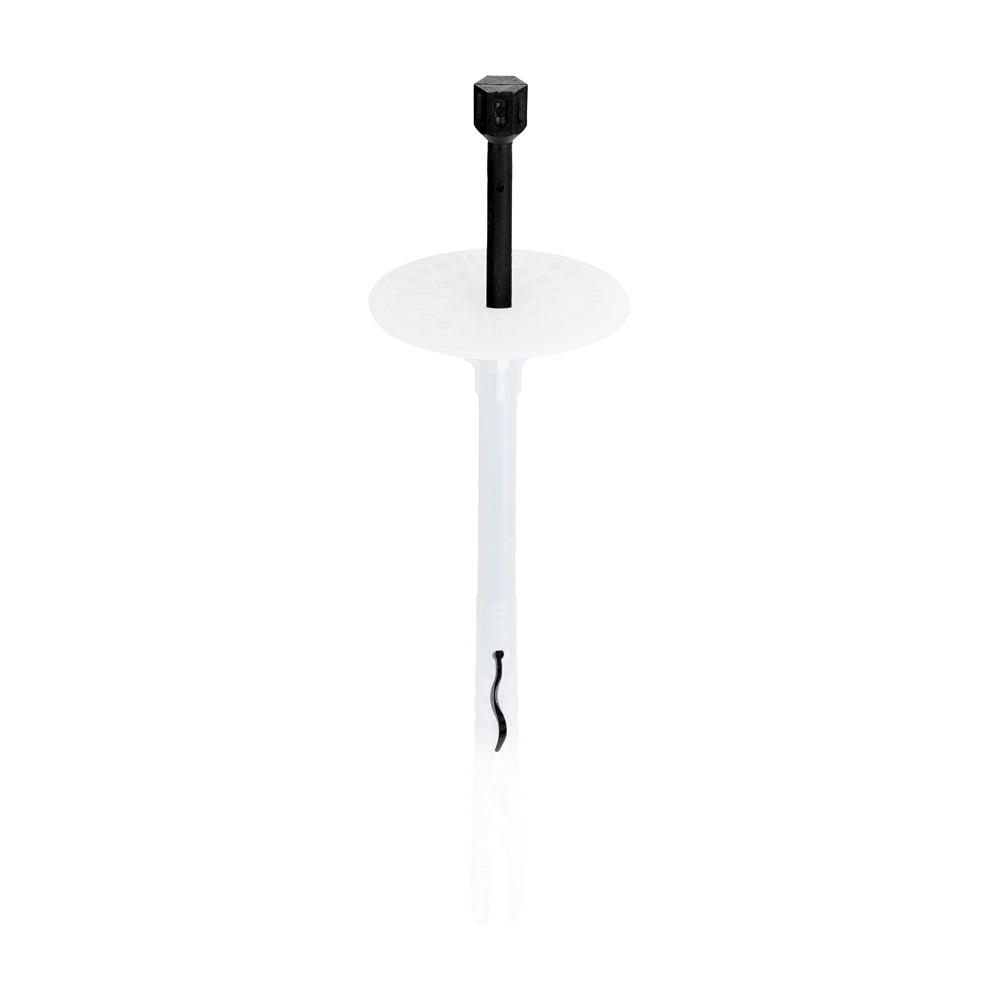

• Description: Hammer-in insulation fixing with a polyamide pin for fixing external thermal insulation (ETICS) into concrete or masonry.
• Diameter mm: 10.0
• Drill Hole Dia. mm: 10.0
• Feature 1: Impact Resistant - rigid polyamide pin provides a reliable fixing.
• Feature 2: Versatile - double anchoring zones (35mm & 70mm) meaning one dowel can be used in different insulation thicknesses.
• Feature 3: Compatible with TDW110 Insulation Fixing Washer - for easier installation of softer materials such as insulation wool.
• Feature 4: Surface or Recessed Mounting - when used with the 67mm disc cutter (ZPFS) and styrofoam insulation discs (ZB100).
• Feature 5: Quality Confirmed - CE approved to Regulation (EU) 305/2011 and third-party tested (ETA-19/0573).
• Head Dia. mm: 60

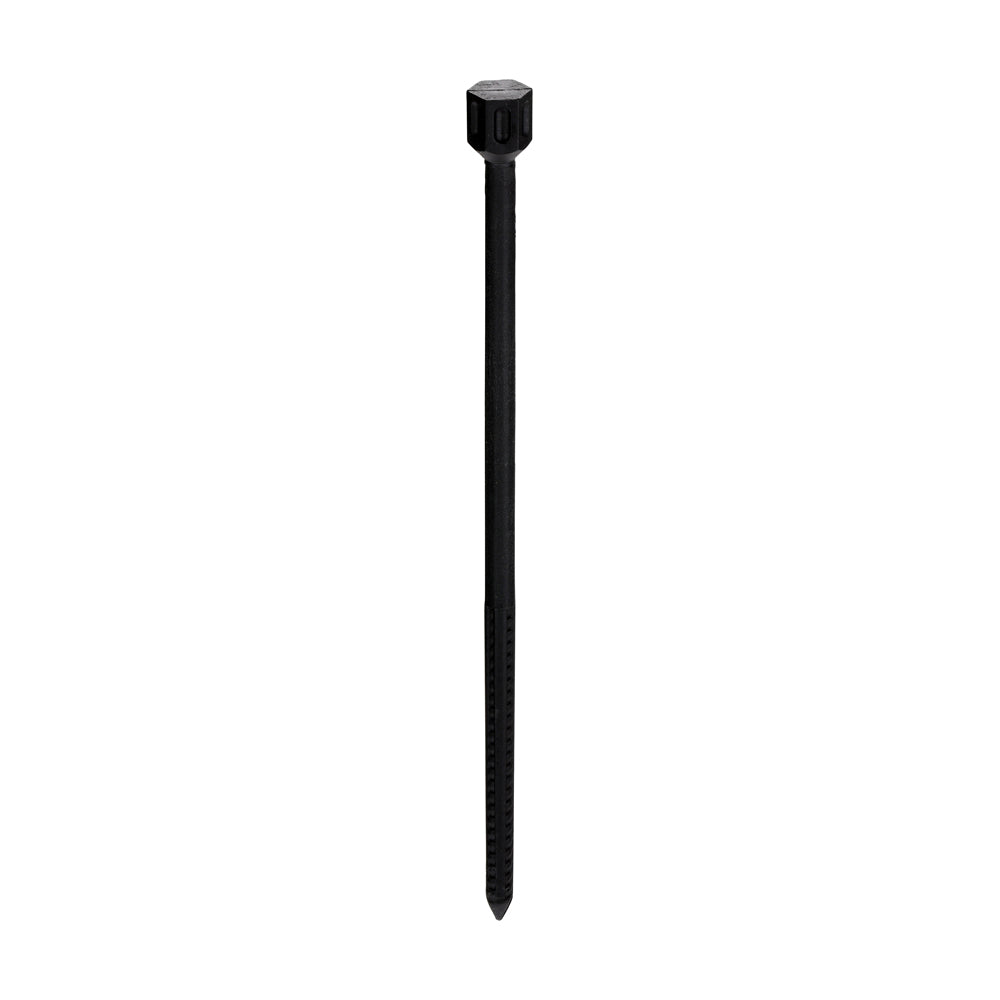

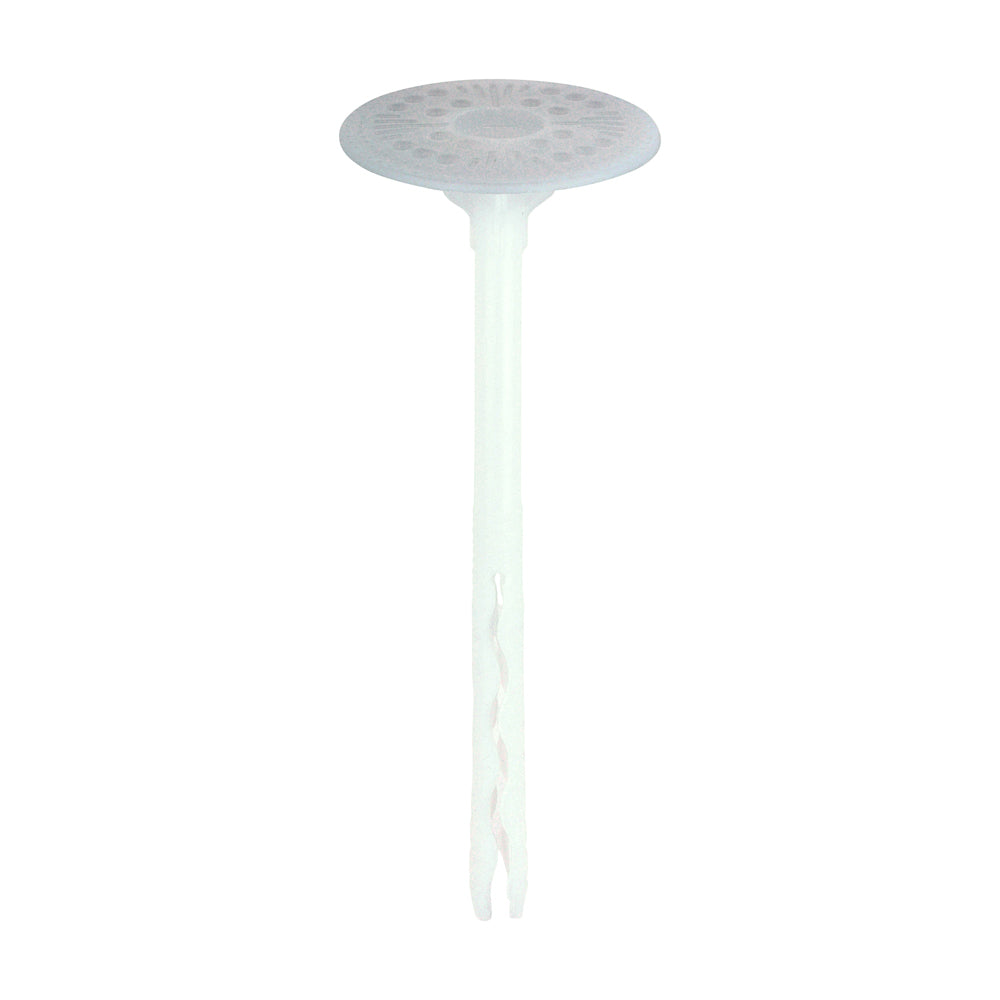

• Material: Polypropylene (PP) Sleeve, Polyamide Pin
• Max Embedment Depth mm: 70
• Max Fixture Thickness mm: 125
• Min Drill Hole Depth mm: 45 or 80
• Min Embedment Depth mm: 35
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 402 x 242 x 168
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.920
• Pallet Qty Packs: 100
• Product Code: PA160
• Size: 10.0 x 160mm
• Size Dia. x L mm: 10.0 x 160
• SKU Barcode: 5908275918318
• Substrates: Concrete, Brick, Block
• Type: Plastic Pin
