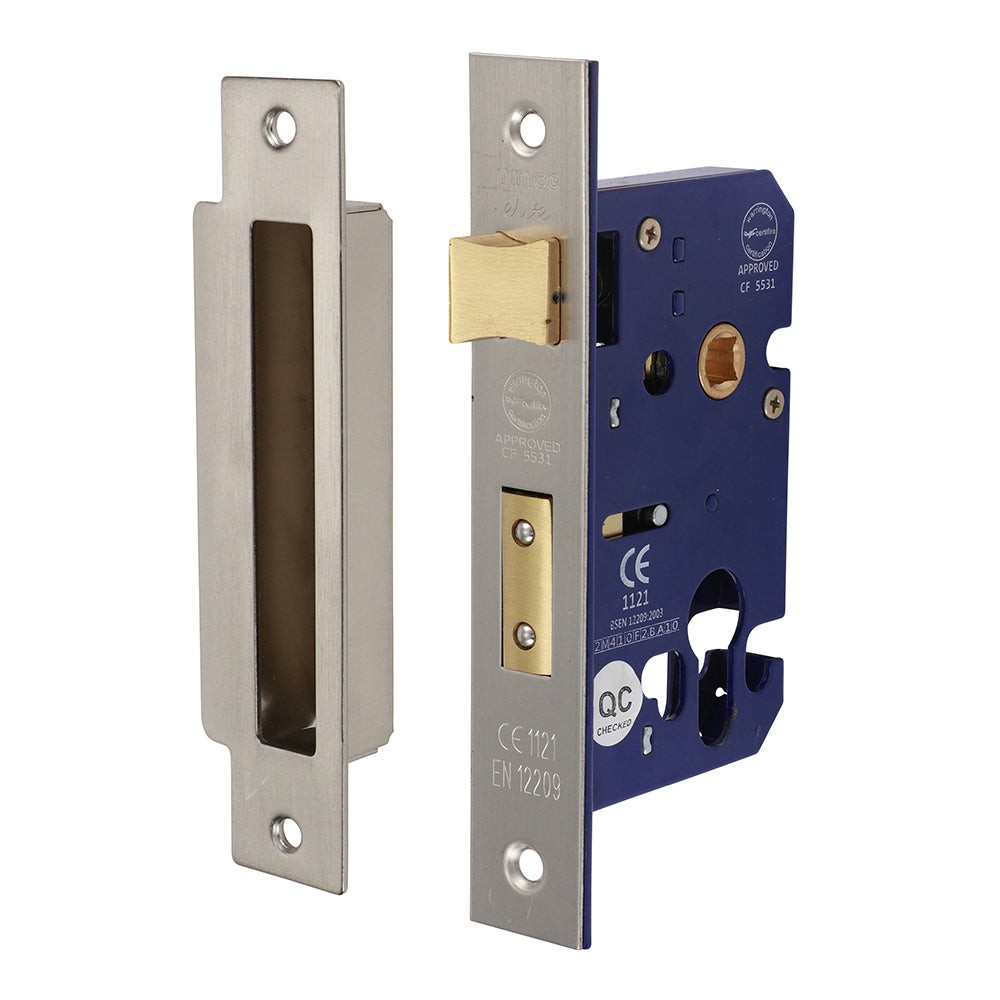

TIMCO Euro Sashlock Satin Nickel - 66mm

TIMCO Euro Sashlock Satin Nickel - 66mm

Product Code: 675020

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Backset mm: 45.5
• Bolt Throw mm: 15
• Brand: TIMCO
• BS EN Classification: 2M410F2BA10
• Carton Qty Packs: 10
• CE Standard Web: BS EN 12209:2003
• Centres mm: 47.5
• Certifire Number: CF5531
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: Ideal for medium to high security doors in domestic and commercial applications. The lock features a heavy duty spring and can be used with both sprung and unsprung door handles and in conjunction with a euro profile cylinder.
• Faceplate Size H x W mm: 155 x 25
• Faceplate Type: Square
• Finish: Satin Nickel
• Fire Rating: 30 & 60 Minutes
• Keep Size H x W mm: 152 x 29
• Lock Case Depth mm: 66
• Lock Case Height mm: 110
• Lock Case Size H x D mm: 110 x 66
• Lock Case Width mm: 15.5
• Lock Follower Backset mm: 45.5
• MOQ: 1
• MOQ Increment: 1
• No. of CSK Screws: 4
• Pack Dimensions L x W x H mm: 180 x 120 x 34
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Box
• Pack Weight kg: 0.580
• Pallet Qty Packs: 680
• Product Code: 675020
• Rec Screw Dia. mm: 4.0
• Rec Screw Gauge imp.: 8
• Screw Size imp.: 8 x 1
• Screw Size mm: 4.0 x 25
• Screws Required Per Pair: 4
• Size mm: 66 / 45.5
• SKU Barcode: 5056110837420
