TIMCO ETX-M Insulation Fixings - 8.0 x 215

TIMCO ETX-M Insulation Fixings - 8.0 x 215

Product Code: EM215

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Application: Facade Insulation Systems, External Thermal Insulation Composite Systems (ETICS)
• Approval: Regulation (EU) 305/2011
• Benefit 1: prevents the formation of a thermal bridge.
• Benefit 2: offers shorter anchoring zones of 25mm & 45mm.
• Benefit 3: specifically designed to reduce installation time.
• Benefit 4: for easier installation of softer materials such as insulation wool.
• Benefit 5: CE approved to Regulation (EU) 305/2011 and third-party tested (ETA-23/0351).
• Brand: Ziel-Plast
• Carton Qty Packs: N/A
• Colour: White

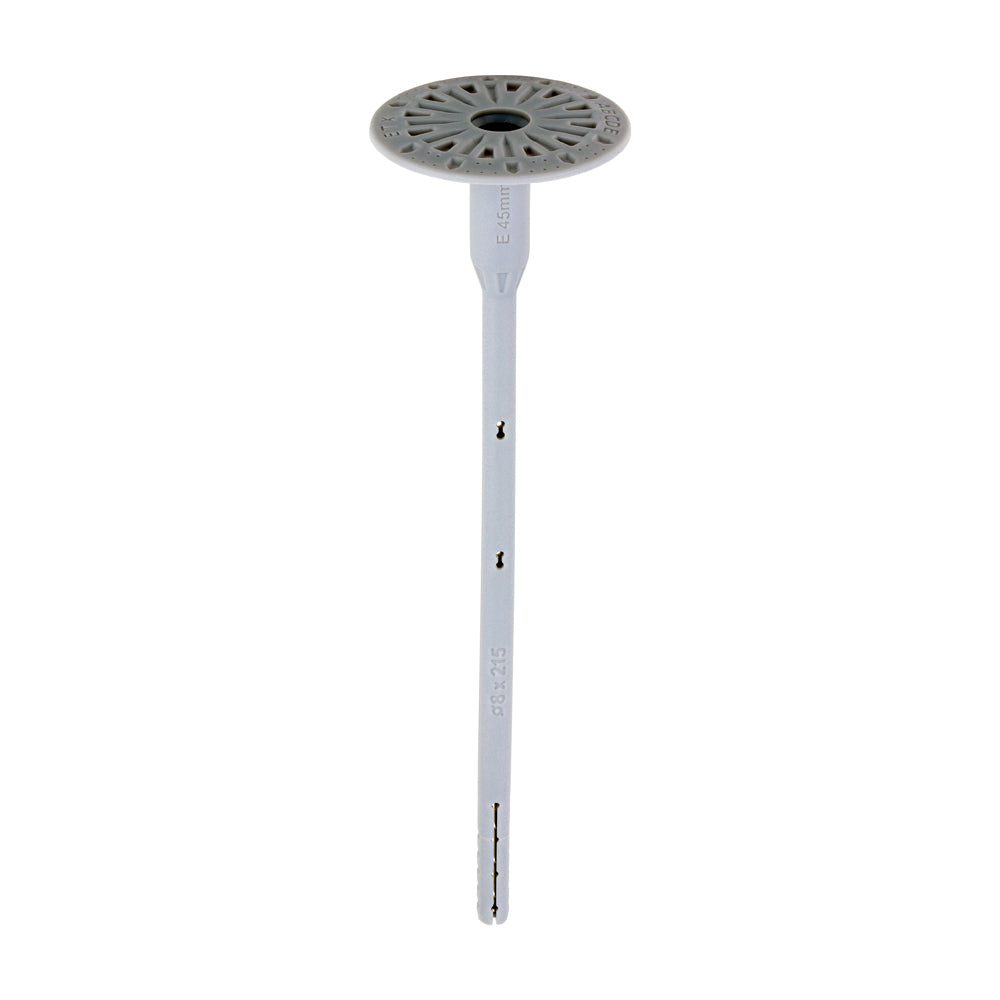

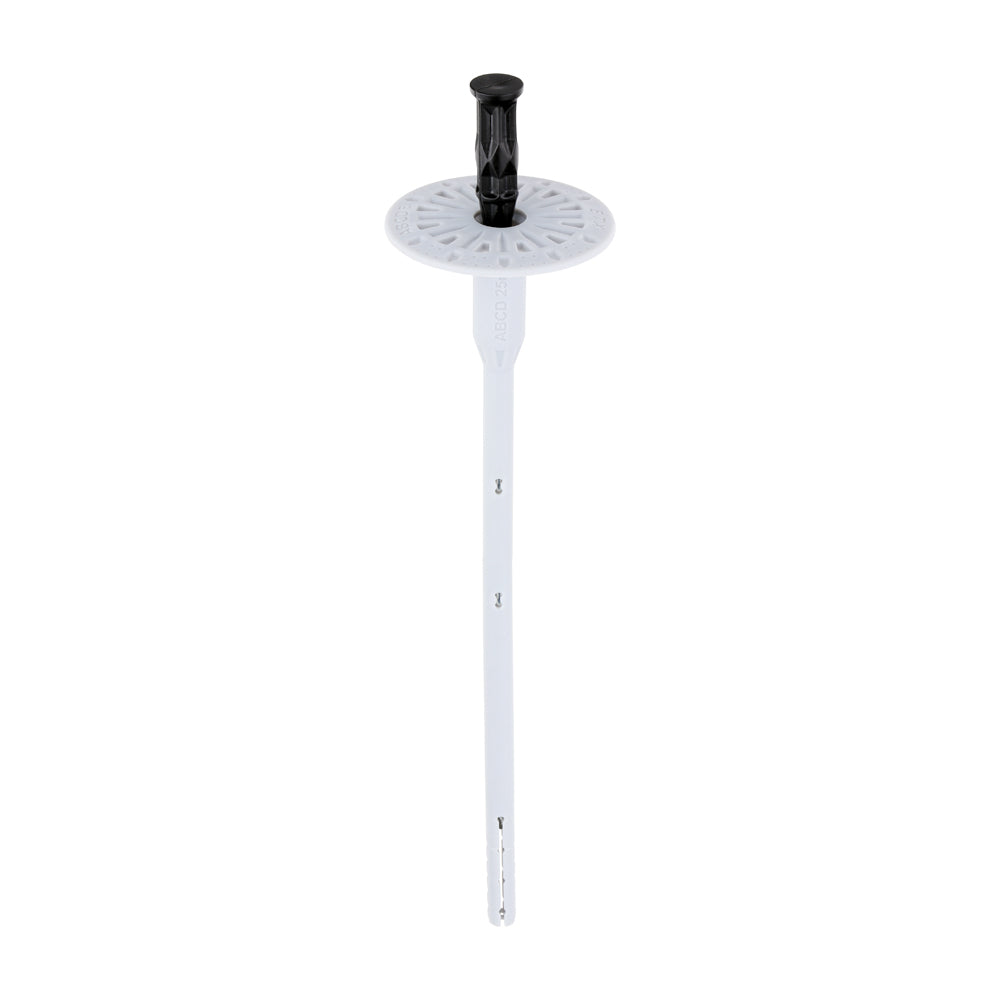

• Description: Advanced hammer-in insulation fixing with a steel pin and an impact resistant head for fixing external thermal insulation (ETICS) into concrete and masonry.
• Diameter mm: 8.0
• Drill Hole Dia. mm: 8.0

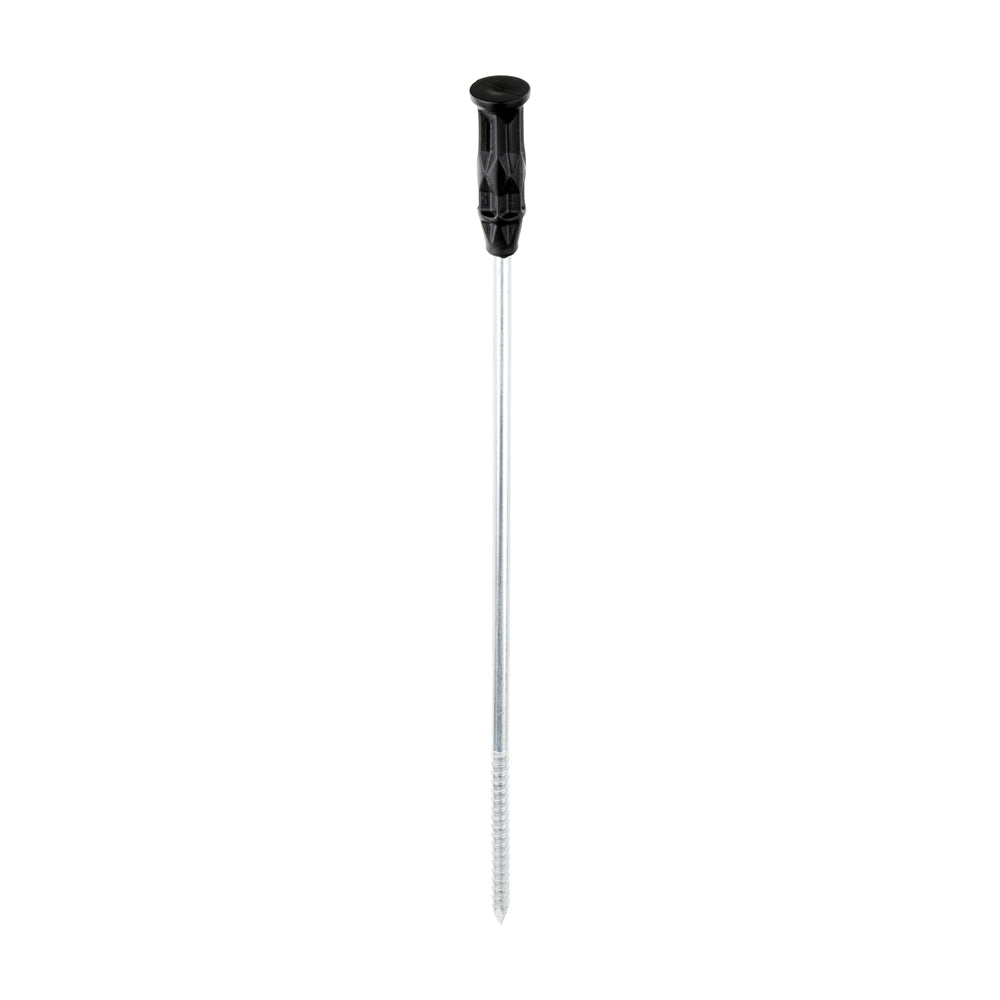

• Feature 1: Steel Pin with Plastic Insulator - prevents the formation of a thermal bridge.
• Feature 2: Quicker Installation - offers shorter anchoring zones of 25mm & 45mm.
• Feature 3: Quick Installation - specifically designed to reduce installation time.
• Feature 4: Compatible with TDW110 Insulation Fixing Washer - for easier installation of softer materials such as insulation wool.
• Feature 5: Quality Confirmed - CE approved to Regulation (EU) 305/2011 and third-party tested (ETA-23/0351).
• Head Dia. mm: 60
• Material: Polypropylene (PP) Sleeve, Galvanised Steel Pin
• Max Embedment Depth mm: 45
• Max Fixture Thickness mm: 190
• Min Drill Hole Depth mm: 35 or 55
• Min Embedment Depth mm: 25
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 300 x 266 x 240
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 3.840
• Pallet Qty Packs: 84
• Product Code: EM215
• Size: 8.0 x 215mm
• Size Dia. x L mm: 8.0 x 215
• SKU Barcode: 5907812671211
• Substrates: Concrete, Brick, Block
• Type: Steel Pin
