TIMCO Drop In Anchors Silver - M10

TIMCO Drop In Anchors Silver - M10

Product Code: 10WA

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Anchor Length mm: 40
• Approval: BS 7671:2018
• Brand: TIMCO
• Carton Qty Packs: 12
• Centre Spacing mm: 120
• Corrosion Rating: 1 - Clean, dry & low humidity environments

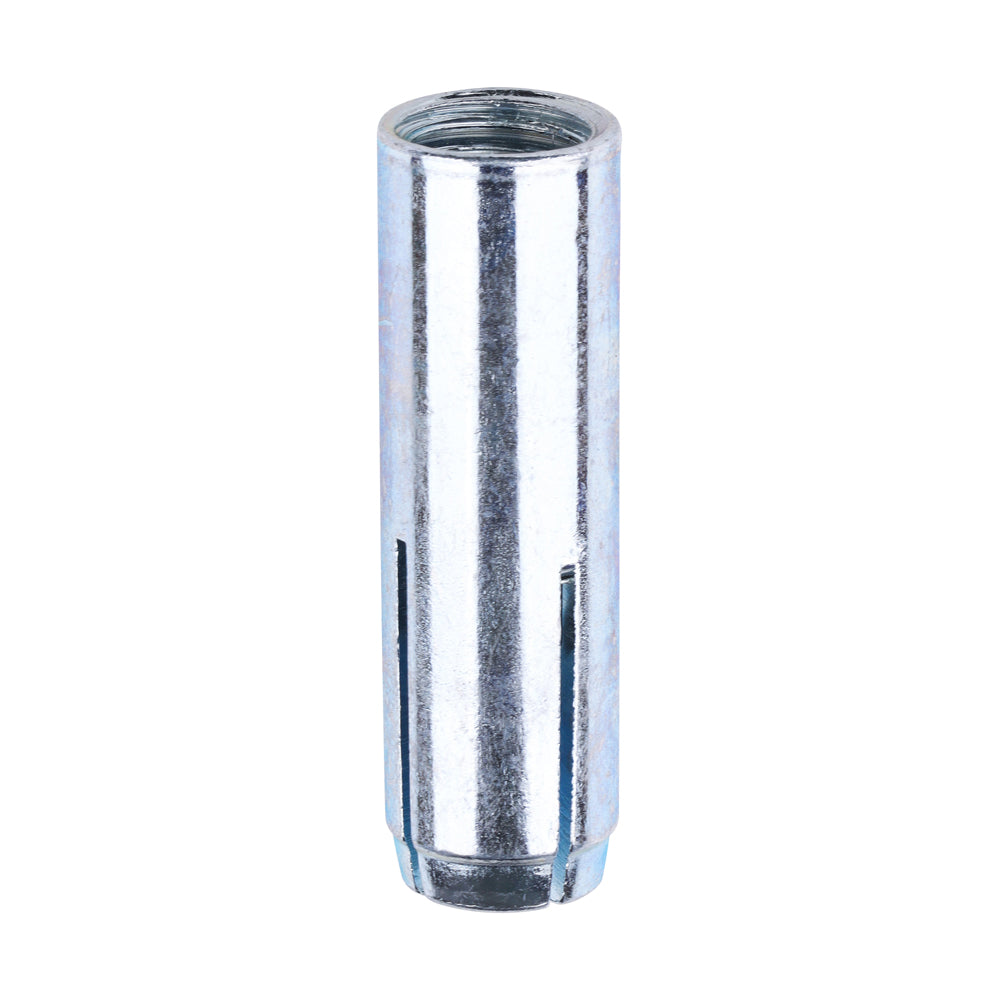

• Description: An internally threaded hammer set expansion anchor for heavy duty anchoring into concrete. This standard version can be inserted below the surface. Also known as wedge anchors.
• Drill Hole Dia. mm: 12.0
• Feature 1: All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
• Finish: Zinc
• Fixture Hole Diameter mm: 12.0
• Length mm: 40
• Material: Carbon Steel
• Min Drill Hole Depth mm: 40
• Min Thread Length mm: 15
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 132 x 46 x 70
• Pack Quantity: 50
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.099
• Pallet Qty Packs: 816
• Product Code: 10WA
• Size Thread Dia. x L mm: M10 x 40
• SKU Barcode: 5055017563104
• Substrates: Concrete
• Thread Dia. mm: M10
• Thread Length mm: 15
• Thread Type: Metric
• Type: Not Lipped
