TIMCO Double Strap Gate Hinge Set with Hook on Plate Hot Dipped Galvanised - 600mm

TIMCO Double Strap Gate Hinge Set with Hook on Plate Hot Dipped Galvanised - 600mm

Product Code: DSFH600G

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Bottom Strap L inch: 6
• Bottom Strap L mm: 150
• Brand: TIMCO
• Carriage Bolt Size mm: M10 x 95
• Carton Qty Packs: 4
• Coach Screw Size mm: M10 x 65

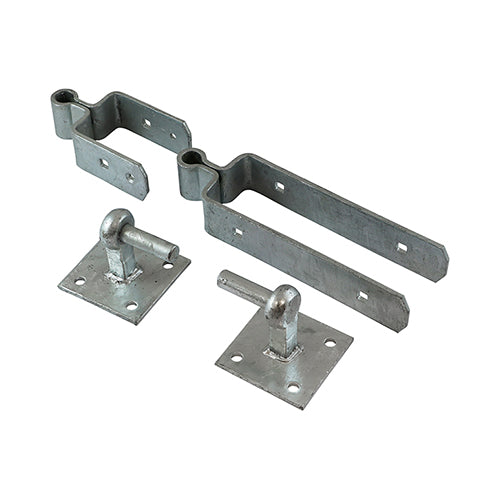

• Contents: 600mm Top Strap (Qty 1) ?150mm Bottom Strap (Qty 1) ?100 x 100mm Hook on Plates (Qty 2) ?M10 x 95mm Carriage Bolts (Qty 4) ?M10 Full Hex Nuts (Qty 4) ?M10 Washers (Qty 4) ?M10 x 65mm Coach Screws (Qty 8) ?6.0 x 40mm TIMco Exterior Woodscrews (Qty 2)
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• CSK Screw Size mm: 6.0 x 40
• Description: Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to firmly secure in place. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.
• Finish: Hot Dipped Galvanised
• Hook Plate Size L x W mm: 100 x 100
• Material: Carbon Steel
• MOQ: 1
• MOQ Increment: 1
• No. of Carriage Bolts: 4
• No. of Coach Screws: 8
• No. of CSK Screws: 2
• No. of Nuts: 4
• No. of Washers: 4
• Nut Size mm: M10
• Nut Type: Hex Full
• Pack Dimensions L x W x H mm: 178 x 30 x 762
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Plain Bag
• Pack Weight kg: 6.420
• Pallet Qty Packs: 80
• Pin Dia. inch:
• Pin Dia. mm: 19.0
• Product Code: DSFH600G
• SKU Barcode: 5055893361245
• Strap Thickness mm: 6.0
• To Fit Carriage Bolt Dia. mm: M10
• To Suit Gate Thickness inch: 3
• To Suit Gate Thickness mm: 75
• To Suit Gate Width ft: 9 - 12
• To Suit Gate Width mm: 2700 - 3600
• Top Strap L inch: 24
• Top Strap L mm: 600
• Type: Double Strap
• Washer Size mm: M10
• Washer Type: Form A
