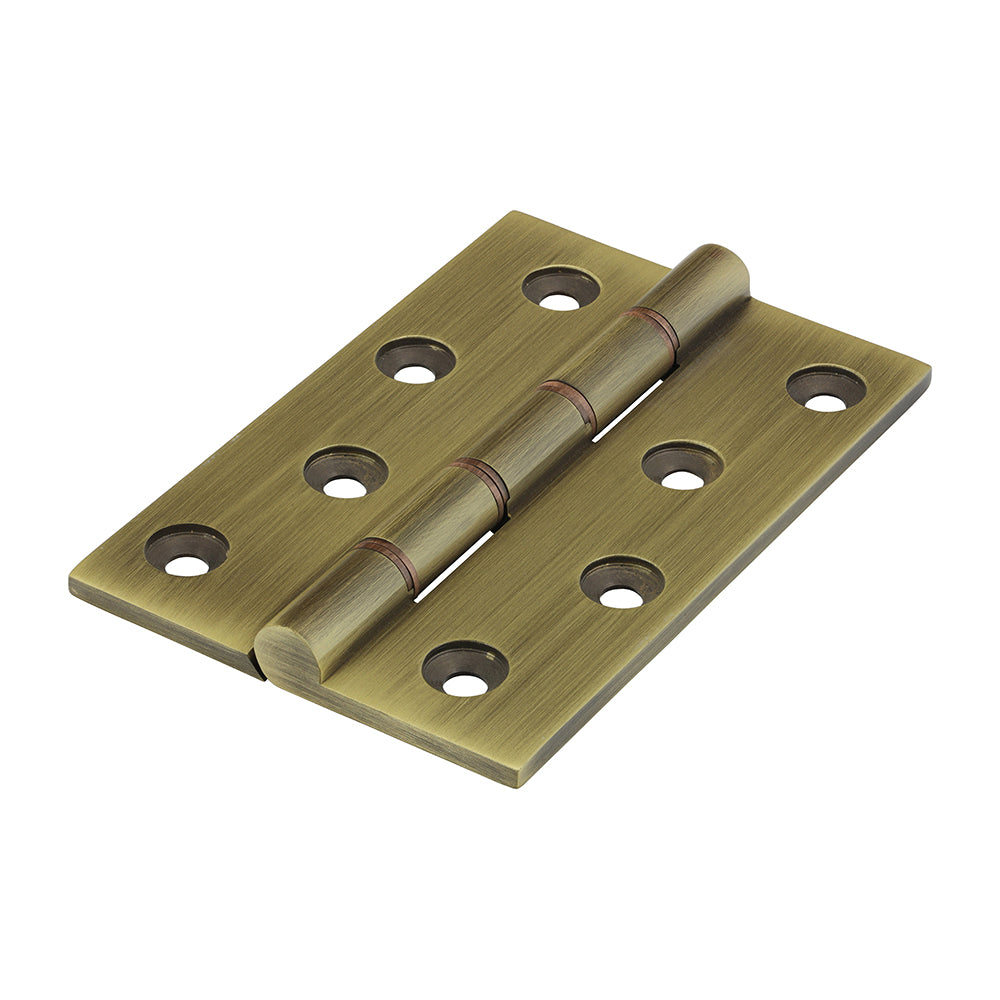

TIMCO Double Phosphor Bronze Washered Butt Hinge - Solid Brass - Bronze - 102 x 67

TIMCO Double Phosphor Bronze Washered Butt Hinge - Solid Brass - Bronze - 102 x 67

Product Code: 234249

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 40
• Corner Type: Square
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• Description: Ideal for hanging internal doors in domestic applications.
• Feature 1: Double washers prevent knuckle wear for long lasting performance
• Feature 2: Brass pin and phosphor bronze washers guarantee no rust
• Feature 3: Hinge manufactured from solid brass to guarantee no rust and a superior finish
• Feature 4: Available in a variety of finishes
• Finish: Bronze
• Hole Dia. mm: 5.3
• Knuckle Dia. mm: 10.0
• Knuckle Type: Washered
• Length inch: 4
• Length mm: 102
• Material: Solid Brass
• MOQ: 1
• MOQ Increment: 1
• No. of CSK Screws: 16
• Offers: Clearance
• Open Width mm: 67
• Pack Dimensions L x W x H mm: 154 x 66 x 32
• Pack Quantity: 1
• Pack Quantity Unit: Pairs
• Pack Type: Box
• Pack Weight kg: 0.520
• Pin Material: Brass
• Product Code: 234249
• Rec Screw Dia. mm: 5.0
• Rec Screw Gauge imp.: 10
• Screw Size imp.: 10 x 1
• Screw Size mm: 5.0 x 30
• Screws Required Per Pair: 16
• Size imp.: 4
• Size L x W mm: 102 x 67
• SKU Barcode: 5056110823294
• Thickness mm: 3.50
• Washer: Phosphor Bronze Washer
