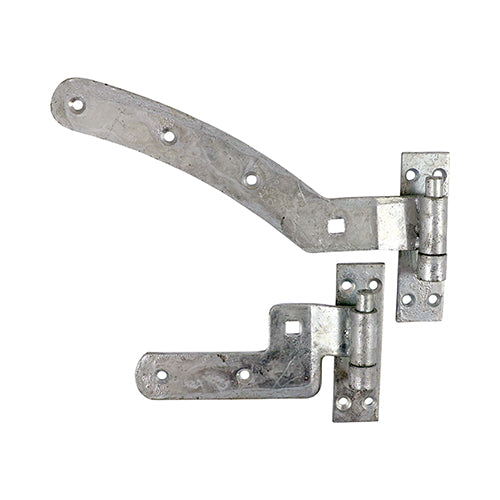

TIMCO Curved Rail Hinge Set Right Hand Hot Dipped Galvanised - 300mm

TIMCO Curved Rail Hinge Set Right Hand Hot Dipped Galvanised - 300mm

Product Code: CRHRG

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Band Thickness mm: 4.8
• Band Width mm: 40
• Bottom Band L mm: 200
• Brand: TIMCO
• Carriage Bolt Size mm: M10 x 100
• Carton Qty Packs: 5 Pairs
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• CSK Screw Size mm: 6.0 x 40
• Description: Curved rail hinge sets are ideal for flush mounted fully framed gates with a curved top ledge. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.
• Finish: Hot Dipped Galvanised
• Hand: Right-Hand
• Hook Plate Size L x W mm: 160 x 50
• Included Items: M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 13)
• Material: Carbon Steel
• MOQ: 1
• MOQ Increment: 1
• No. of Bolt Holes: 2
• No. of Carriage Bolts: 2
• No. of CSK Screws: 13
• No. of Nuts: 2
• No. of Screw Holes: 13
• No. of Washers: 2
• Nut Size mm: M10
• Nut Type: Hex Full
• Pack Dimensions L x W x H mm: 127 x 30 x 406
• Pack Quantity: 1
• Pack Quantity Unit: Pairs
• Pack Type: Plain Bag
• Pack Weight kg: 1.560
• Pallet Qty Packs: 200 Pairs
• Pin Dia. inch:
• Pin Dia. mm: 12.0
• Product Code: CRHRG
• Rec Screw Dia. mm: 6.0
• Rec Screw Gauge imp.: 12
• SKU Barcode: 5055893360460
• To Fit Carriage Bolt Dia. mm: M10
• To Suit Gate Width mm: 600 - 900
• Top Band L inch: 12
• Top Band L mm: 300
• Type: Curved
• Washer Size mm: M10
