TIMCO Corefix 100 Dot & Dab Wall Fixing - 5.0 x 100

TIMCO Corefix 100 Dot & Dab Wall Fixing - 5.0 x 100

Product Code: CFX004T

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Brand: TIMCO Corefix
• Carton Qty Packs: 50
• Core Insert Size Dia. x Length mm: 8.0 x 50
• Corrosion Rating: 1 - Clean, dry & low humidity environments

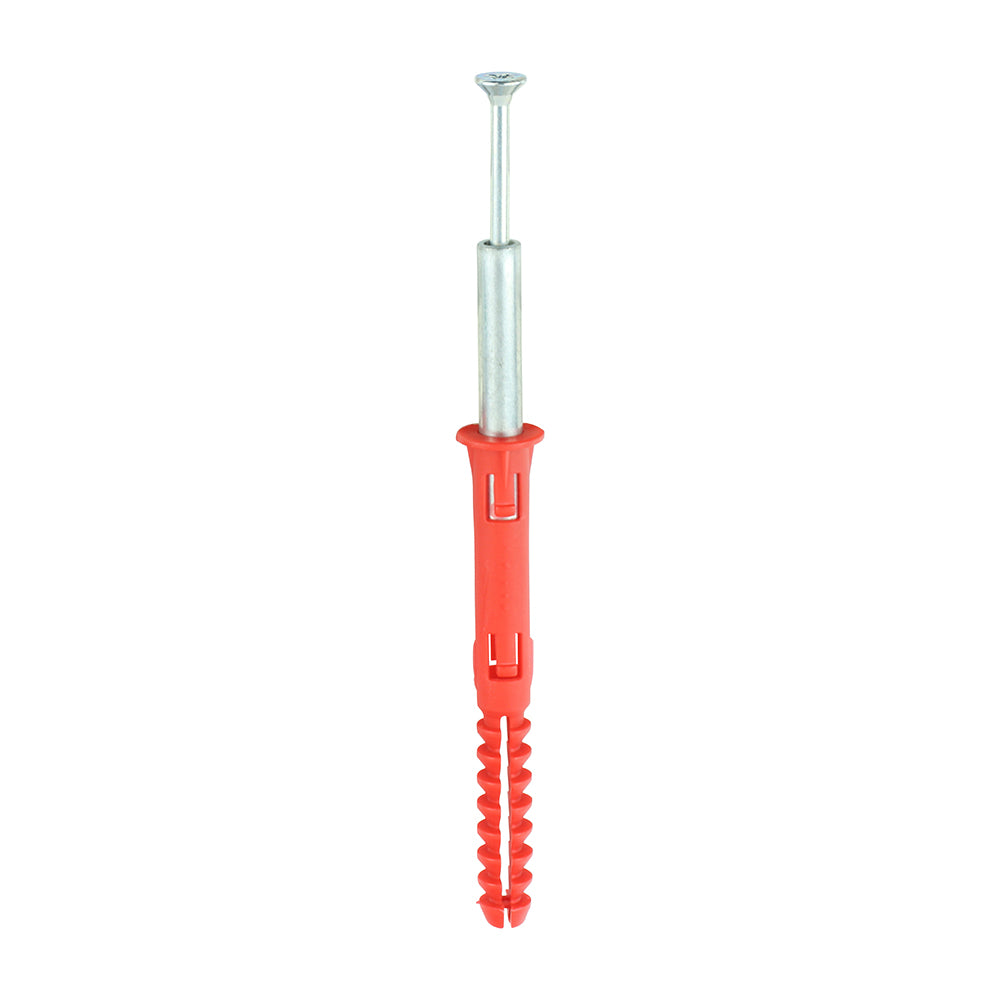

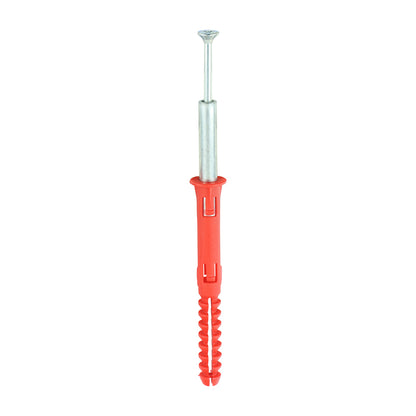

• Description: This highly effective and innovative product was developed to safely secure heavy loads including cabinets and brackets to dot and dab plasterboard walls or board supported on battens. Quick to install, this patented product works by securing the load to the brick or block behind the board, bridging the problematic gap that dot and dab creates, by way of a zinc plated steel tube insert.
• Drill Bit Size mm: -
• Drill Hole Dia. mm: 10.0
• Driver Bit Size: PZ2
• Feature 1: Suitable for most modern homes with plasterboard / dot & dab walls
• Feature 2: Trusted and independently tested
• Feature 3: Fast installation, no specialist tools required, drill, 10mm bit, hammer & screwdriver
• Feature 4: For all wall types, brick, block and light weight concrete
• Finish: Zinc
• Head Type: Countersunk
• Material: Carbon Steel Screw, Impact Resistant PP Copolymer Plug, Carbon Steel Core
• Max Fixture Thickness mm: 10
• Min Drill Hole Depth mm: 100
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 201 x 82 x 16
• Pack Quantity: 4
• Pack Quantity Unit: Pieces
• Pack Type: Bag
• Pack Weight kg: 0.088
• Pallet Qty Packs: 2,000
• Plug Dia. mm: 10
• Plug Length mm: 95
• Plug Size mm: 10 x 95
• Product Code: CFX004T
• Recess Type: Pozi
• Screw Size mm: 5.0 x 100
• SKU Barcode: 5056110852232
• Substrates: Brick, Block, Stone
