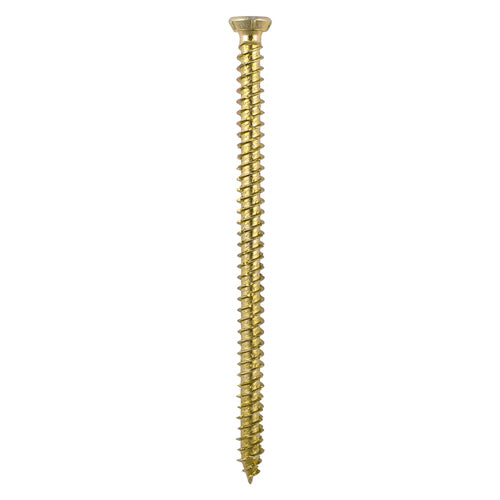

TIMCO Concrete Screws Flat Countersunk Gold - 7.5 x 70

TIMCO Concrete Screws Flat Countersunk Gold - 7.5 x 70

Product Code: 00070TCONB

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Approval: BS 7671:2018
• Brand: TIMCO
• Carton Qty Packs: 5
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.
• Diameter mm: 7.5
• Drill Hole Dia. mm: 6.0
• Driver Bit Size: TX30
• Feature 1: Designed to replace traditional masonry fixings
• Feature 2: TX30 TX Drive recess to reduce driver wear & prevent camming-out
• Feature 3: Serrated V-threads to achieve optimum insertion into all masonry types
• Feature 4: Zinc plated and yellow passivated for increased corrosion resistance
• Feature 5: High-Low thread on first 30mm to aid insertion and reduce torque
• Feature 6: Ideal for fitting windows and door frames
• Feature 7: Flat countersunk head with five locking ribs
• Feature 8: All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
• Finish: Zinc & Yellow
• Fixture Hole Diameter mm: 8.0
• Head Type: Flat Countersunk with Ribs
• Length mm: 70
• Material: Carbon Steel
• Max Fixture Thickness mm: 35
• Min Drill Hole Depth mm: 45
• Min Embedment Depth mm: 35
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 265 x 152 x 50
• Pack Quantity: 75
• Pack Quantity Unit: Pieces
• Pack Type: TIMbag
• Pack Weight kg: 0.720
• Pallet Qty Packs: 600
• Point Type: Sharp
• Product Code: 00070TCONB
• Recess Type: TX Drive
• Size Dia. x L mm: 7.5 x 70
• SKU Barcode: 5056110845319
• Substrates: Concrete, Brick, Stone, Block, Wood
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 7.5
• Thread Type: High-Low Start with V Flutes
