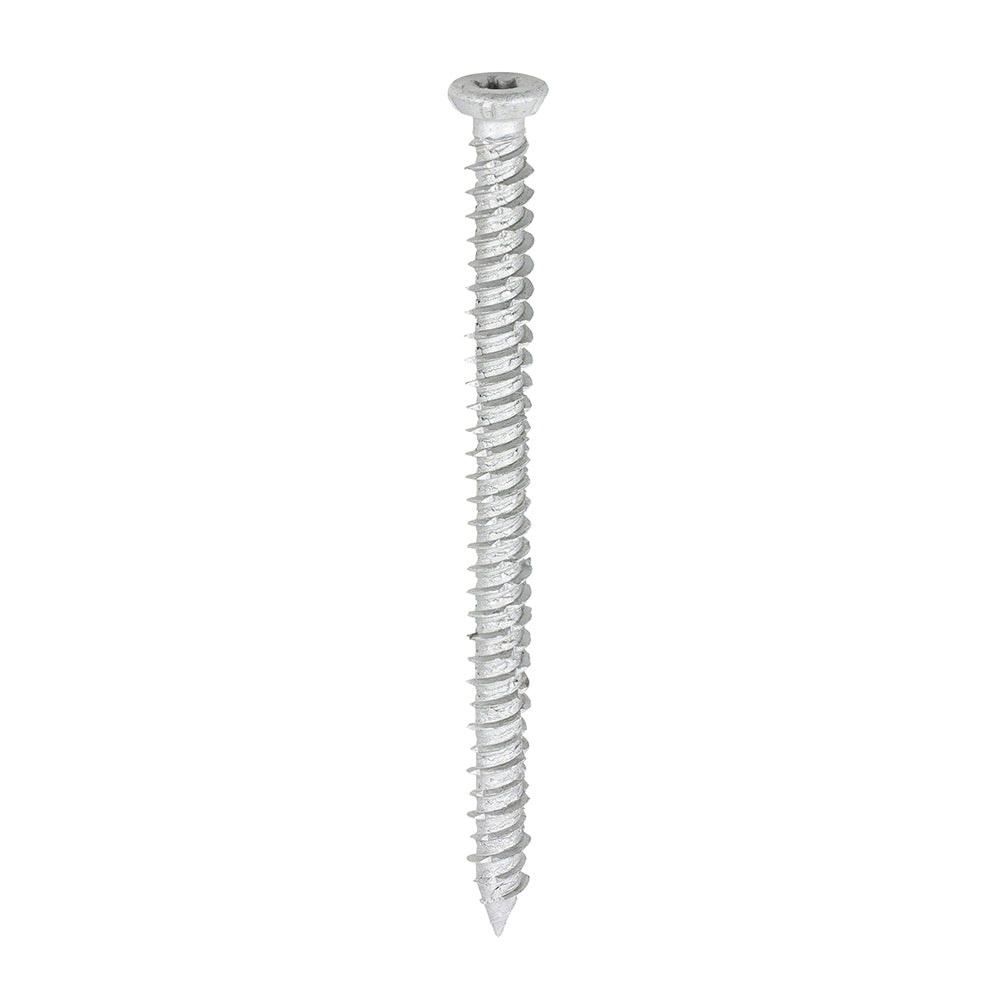

TIMCO Concrete Screws Flat Countersunk Exterior Silver - 7.5 x 100

TIMCO Concrete Screws Flat Countersunk Exterior Silver - 7.5 x 100

Product Code: 100TCONR

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Approval: BS 7671:2018
• Brand: TIMCO
• Carton Qty Packs: 10
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.
• Diameter mm: 7.5
• Drill Hole Dia. mm: 6.0
• Driver Bit Size: TX30
• Feature 1: Designed to replace traditional masonry fixings
• Feature 2: TX30 TX Drive recess to reduce driver wear & prevent camming out
• Feature 3: Serrated V-threads to achieve optimum insertion into all masonry types
• Feature 4: Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray.
• Feature 5: High Low threads for ease of insertion
• Feature 6: Ideal for fitting windows and door frames
• Feature 7: All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
• Finish: Exterior (Silver Organic)
• Fixture Hole Diameter mm: 8.0
• Head Type: Flat Countersunk with Ribs
• Included Items: TX30 S2 Bit (Qty 1)
• Length mm: 100
• Material: Carbon Steel
• Max Fixture Thickness mm: 50
• Min Embedment Depth mm: 50
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 132 x 88 x 84
• Pack Quantity: 100
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.98
• Pallet Qty Packs: 360
• Point Type: Sharp
• Product Code: 100TCONR
• Recess Type: TX Drive
• Size Dia. x L mm: 7.5 x 100
• SKU Barcode: 5055893363324
• Substrates: Concrete, Brick, Stone, Block, Wood
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 7.5
• Thread Type: High-Low Start with V Flutes
