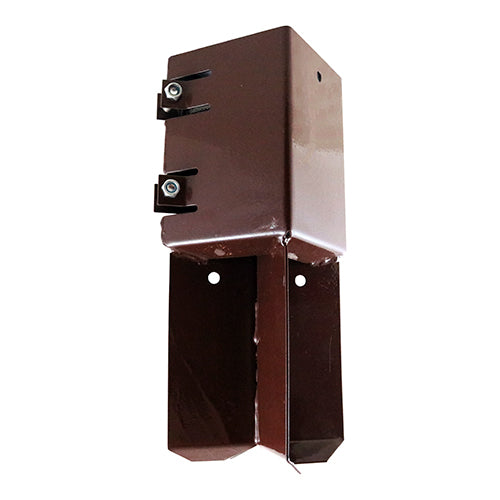

TIMCO Concrete In Shoe Bolt Post Support Bolt Secure Oxide Red - 100mm (Pack of 10)

TIMCO Concrete In Shoe Bolt Post Support Bolt Secure Oxide Red - 100mm

Product Code: CSB100

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Brand: TIMCO
• Carriage Bolt Size mm: M8 x 35
• Carton Qty Packs: 10
• Colour Reference: (RAL) 8015
• Description: Concrete in fence post shoes are designed to be set into concrete when ground conditions won’t allow for a drive in spike or the post is to be fitted in a hard standing area. The bolt secure version features 2x 8mm carriage bolts that tighten and clamp the post firmly into the post holder section to prevent any post movement as well as allowing for over / under sized post tolerance. The bolt system also allows for removal of the post at a later
• Feature 1: Features 4 fins at the bottom to hold the support firmly in concrete
• Feature 2: Red oxide powder coat to blend in with fencing whilst also providing a medium rust protection
• Feature 3: Can be painted over
• Finish: Oxide Red Powder Coated
• Included Items: M8 x 35mm Carriage Bolts (Qty 2) ?M8 Nylon - Type T Nuts (Qty 2)
• Material: Carbon Steel
• MOQ: 10
• MOQ Increment: 10
• No. of Carriage Bolts: 2
• No. of Nuts: 2
• Nut Size mm: M8
• Nut Type: Nylon - Type T
• Pack Dimensions L x W x H mm: 350 x 120 x 120
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Unit
• Pack Weight kg: 1.640
• Pallet Qty Packs: 160
• Post Holder Length mm: 150
• Product Code: CSB100
• SKU Barcode: 5055893364888
• Spike Length inch: 8
• Spike Length mm: 200
• To Suit Post Size inch: 4 x 4
• To Suit Post Size mm: 100 x 100
• Total Length mm: 350
• Type: Bolt Secure
