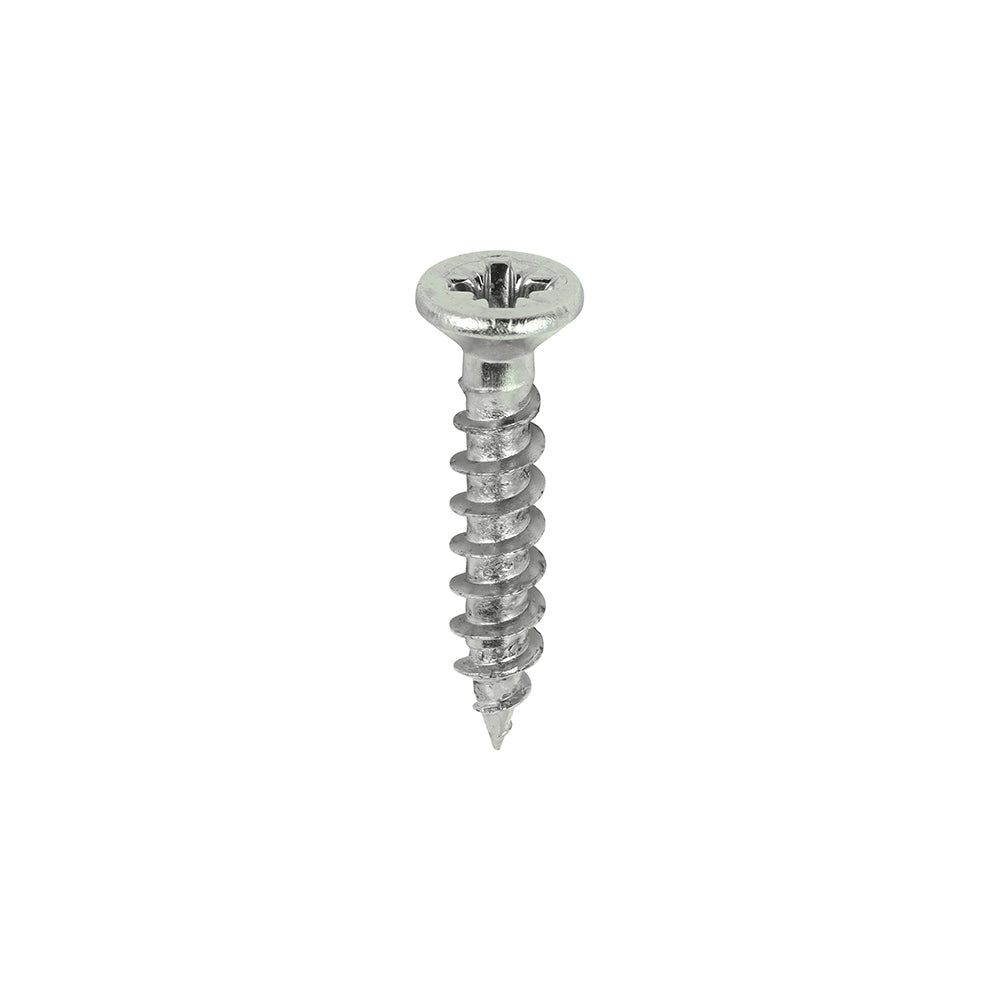

TIMCO Classic Multi-Purpose Reduced Head Countersunk Nickel Piano Hinge Woodscrews - 3.0 x 16

TIMCO Classic Multi-Purpose Reduced Head Countersunk Nickel Piano Hinge Woodscrews - 3.0 x 16

Product Code: 30016CLAHN

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 140
• CE Standard Web: BS EN 14592:2008
• Corrosion Rating: 2 - Occasionally damp/wet, rural and sheltered areas
• Description: Classic Multi-Purpose Screw featuring a reduced 5mm head for specific use with continuous/piano hinges. NOTE: Sharp point only.
• Diameter mm: 3.0
• Driver Bit Size: PZ1
• Finish: Nickel
• Gauge: 4
• Head Dia. mm: 5.08
• Head Type: Countersunk
• Inner Thread Dia. mm: 2.00
• Length inch:
• Length mm: 16
• Material: Carbon Steel
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 52 x 42 x 34
• Pack Quantity: 200
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 0.140
• Pallet Qty Packs: 5,040
• Point Type: 25° Sharp
• Product Code: 30016CLAHN
• Recess Type: Pozi
• Size imp.: 4 x
• Size mm: 3.0 x 16
• SKU Barcode: 5055017557349
• Substrates: Hardwood, Softwood, Chipboard, MDF, Thin Sheet Metal, Plastic
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 3.0
• Thread Length mm: 11
• Thread Type: Single Coarse 40°
