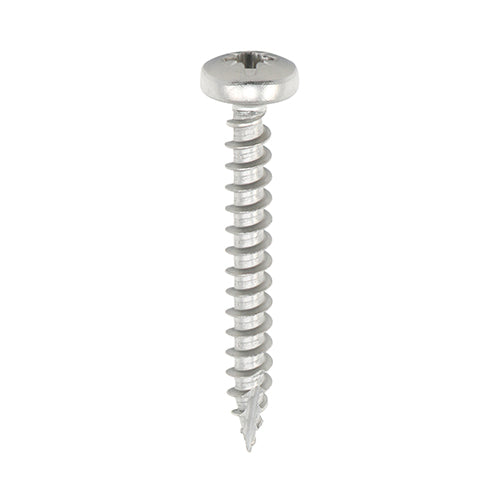

TIMCO Classic Multi-Purpose Pan Head A2 Stainless Steel Woodcrews - 6.0 x 40

TIMCO Classic Multi-Purpose Pan Head A2 Stainless Steel Woodcrews - 6.0 x 40

Product Code: 60040CLAPSS

Brand: TIMCO

Category: Screws

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 15
• CE Standard Web: BS EN 14592:2008
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• Description: All the features and superior performance of the Classic Multi-Purpose Screw. Manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
• Diameter mm: 6.0
• Driver Bit Size: PZ3
• Feature 1: Pan head for improved clamping
• Feature 2: 40° deep single thread to provide a secure fixing with high pull-out resistance
• Feature 3: Single slash point to reduce torque and the risk of timber splitting at low edge distance
• Feature 4: All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
• Gauge: 12
• Head Dia. mm: 11.70
• Head Type: Pan
• Inner Thread Dia. mm: 3.69
• Length inch: 1
• Length mm: 40
• Material: Austenitic Stainless Steel (A2-304)
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 135 x 90 x 60
• Pack Quantity: 200
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.220
• Pallet Qty Packs: 540
• Point Type: 25° Sharp with Single Slash
• Product Code: 60040CLAPSS
• Recess Type: Pozi
• Size imp.: 12 x 1
• Size mm: 6.0 x 40
• SKU Barcode: 5056110817019
• Substrates: Hardwood, Softwood, Chipboard, MDF, Thin Sheet Metal, Plastic, Corrosive Wood (e.g. Oak, Cedar)
• Thread Coverage: Fully Threaded
• Thread Dia. mm: 6.0
• Thread Length mm: 40
• Thread Type: Single Coarse 40°
