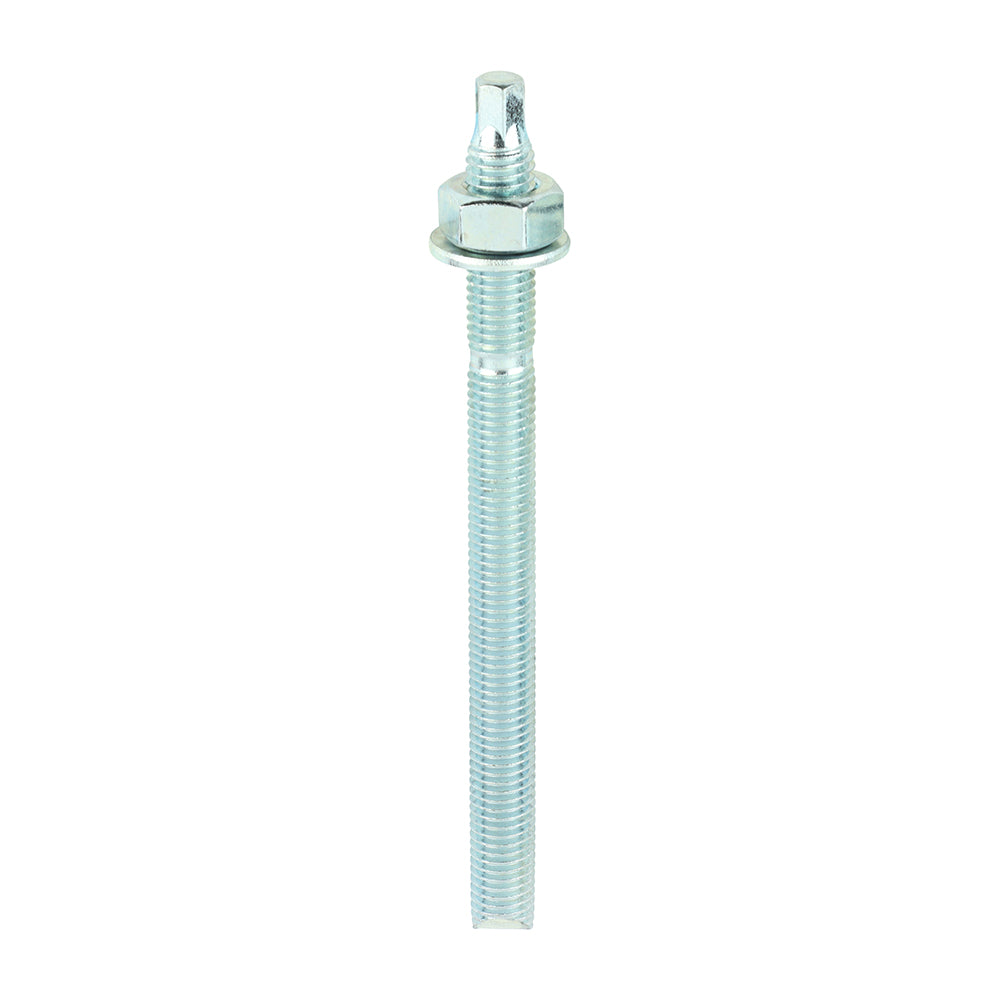

TIMCO Chemical Anchor Studs Silver - M12 x 160

TIMCO Chemical Anchor Studs Silver - M12 x 160

Product Code: 12160CS

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 10
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: Designed for use when fixing with chemical resins. (Nut setter included)
• Drill Hole Dia. mm: 14.0
• Feature 1: Chisel point, prevents the rod turning when tightening
• Feature 2: External hex drive
• Feature 3: Embedment depth mark
• Feature 4: Manufactured from grade 5.8 carbon steel
• Finish: Zinc
• Fixture Hole Diameter mm: 14.0
• Hole Depth mm: 110
• Included Items: 8mm Nut Setter (Qty 1)
• Length mm: 160
• Material: Carbon Steel
• Max Fixture Thickness mm: 25
• MOQ: 1
• MOQ Increment: 1
• Nut Size mm: M12
• Nut Type: Hex Full
• Pack Dimensions L x W x H mm: 64 x 42 x 170
• Pack Quantity: 10
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.362
• Pallet Qty Packs: 600
• Point Type: Chisel
• Product Code: 12160CS
• Size Thread Dia. x L mm: M12 x 160
• SKU Barcode: 5055017564965
• Thread Dia. mm: M12
• Thread Type: Metric
• Washer Size mm: M12
• Washer Type: Form A
