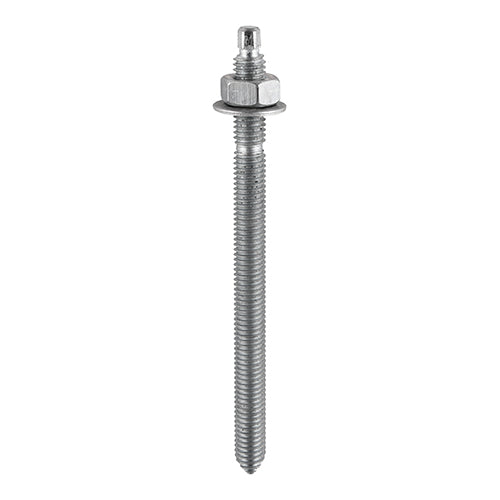

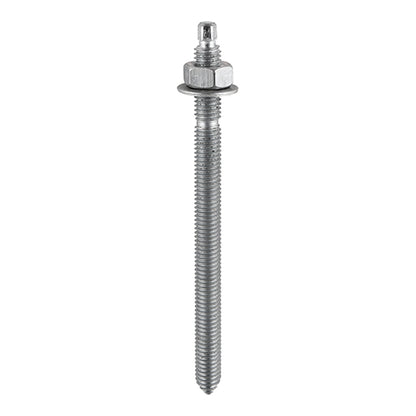

TIMCO Chemical Anchor Studs Hot Dipped Galvanised - M8 x 110

TIMCO Chemical Anchor Studs Hot Dipped Galvanised - M8 x 110

Product Code: 08110CSG

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 30
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• Description: Designed for use when fixing with chemical resins. (Nut setter included)
• Drill Hole Dia. mm: 10.0
• Feature 1: Chisel point, prevents the rod turning when tightening
• Feature 2: External hex drive
• Feature 3: Embedment depth mark
• Feature 4: Manufactured from grade 5.8 carbon steel
• Finish: Hot Dipped Galvanised
• Fixture Hole Diameter mm: 10.0
• Hole Depth mm: 80
• Included Items: 5mm Nut Setter (Qty 1)
• Length mm: 110
• Material: Carbon Steel
• Max Fixture Thickness mm: 13
• MOQ: 1
• MOQ Increment: 1
• Nut Size mm: M8
• Nut Type: Hex Full
• Pack Dimensions L x W x H mm: 130 x 42 x 26
• Pack Quantity: 10
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 0.410
• Pallet Qty Packs: 2,400
• Point Type: Chisel
• Product Code: 08110CSG
• Size Thread Dia. x L mm: M8 x 110
• SKU Barcode: 5055017586080
• Thread Dia. mm: M8
• Thread Type: Metric
• Washer Size mm: M8
• Washer Type: Form A
