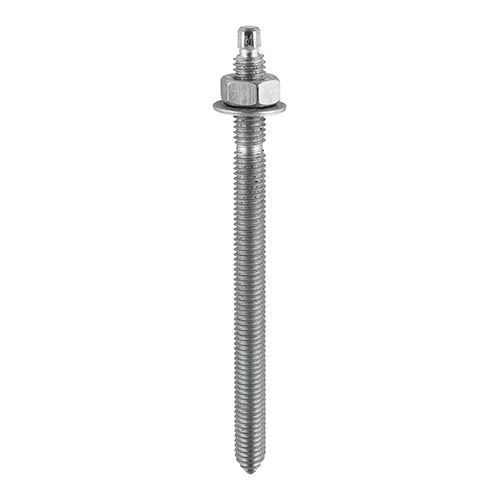

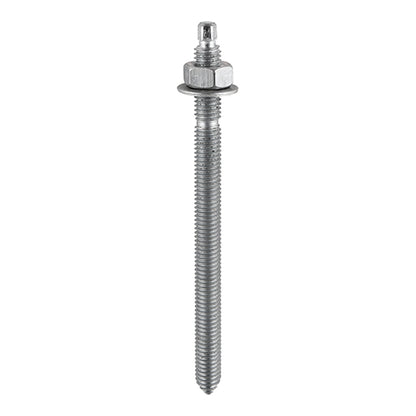

TIMCO Chemical Anchor Studs Hot Dipped Galvanised - M16 x 190

TIMCO Chemical Anchor Studs Hot Dipped Galvanised - M16 x 190

Product Code: 16190CSG

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 8
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• Description: Designed for use when fixing with chemical resins. (Nut setter included)
• Drill Hole Dia. mm: 18.0
• Feature 1: Chisel point, prevents the rod turning when tightening
• Feature 2: External hex drive
• Feature 3: Embedment depth mark
• Feature 4: Manufactured from grade 5.8 carbon steel
• Finish: Hot Dipped Galvanised
• Fixture Hole Diameter mm: 18.0
• Hole Depth mm: 125
• Included Items: 12mm Nut Setter (Qty 1)
• Length mm: 190
• Material: Carbon Steel
• Max Fixture Thickness mm: 35
• MOQ: 1
• MOQ Increment: 1
• Nut Size mm: M16
• Nut Type: Hex Full
• Pack Dimensions L x W x H mm: 206 x 80 x 49
• Pack Quantity: 10
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 2.853
• Pallet Qty Packs: 304
• Point Type: Chisel
• Product Code: 16190CSG
• Size Thread Dia. x L mm: M16 x 190
• SKU Barcode: 5055017586110
• Thread Dia. mm: M16
• Thread Type: Metric
• Washer Size mm: M16
• Washer Type: Form A
