TIMCO Carriage Bolts DIN603 & Hex Full Nuts DIN934 Silver - M16 x 150

TIMCO Carriage Bolts DIN603 & Hex Full Nuts DIN934 Silver - M16 x 150

Product Code: 16150CB

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 6
• CE Standard Web: BS EN 14592:2008
• Corrosion Rating: 1 - Clean, dry & low humidity environments

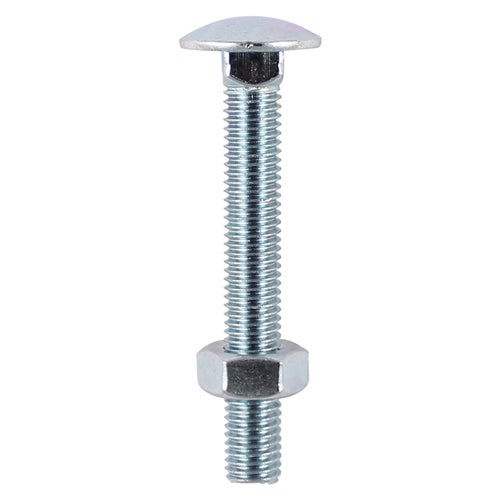

• Description: A domed head bolt with a square anti spin shoulder mainly used for clamping timber or attaching ironmongery to timber. NOTE: Nuts included and markings visible on the domed head. All sizes up to and including 150mm are fully threaded and lengths 160mm and above all have 150mm thread length.
• DIN Standard: DIN 603, DIN 934
• Feature 1: Manufactured from grade 4.8 carbon steel
• Finish: Zinc
• Head Dia. mm: 38.00
• Head Type: Dome
• Included Items: M16 Hex Full Nuts
• Inner Thread Dia. mm: 15.85
• Length mm: 150
• Material: Carbon Steel
• Material Grade: 4.8
• MOQ: 1
• MOQ Increment: 1
• Nut Size mm: M16
• Nut Socket Size mm: 24
• Nut Type: Hex Full
• Pack Dimensions L x W x H mm: 184 x 92 x 128
• Pack Quantity: 10
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 2.880
• Pallet Qty Packs: 192
• Point Type: B Point
• Product Code: 16150CB
• Size mm: M16 x 150
• SKU Barcode: 5055893317839
• Substrates: Hardwood, Softwood
• Thread Coverage: Fully Threaded
• Thread Dia. mm: M16
• Thread Pitch mm: 2.00
• Thread Type: Metric
