TIMCO Carriage Bolts DIN603 & Hex Full Nuts DIN934 Hot Dipped Galvanised - M12 x 200

TIMCO Carriage Bolts DIN603 & Hex Full Nuts DIN934 Hot Dipped Galvanised - M12 x 200

Product Code: 12200CBG

Brand: TIMCO

Category: Fasteners & Fixings

Product Specifications:

• Brand: TIMCO
• Carton Qty Packs: 10
• CE Standard Web: BS EN 14592:2008
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere

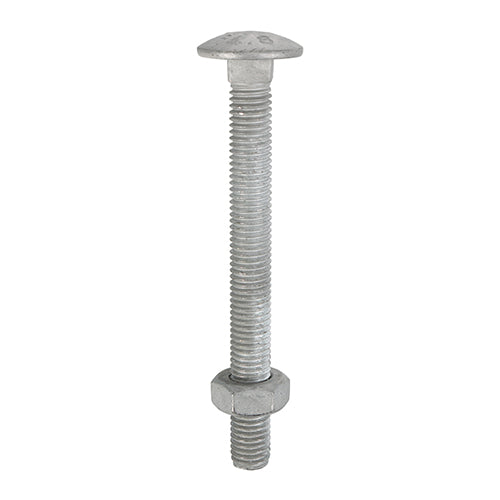

• Description: A domed head bolt with a square anti spin shoulder mainly used for clamping timber or attaching ironmongery to timber. NOTE: Nuts included. Fully threaded up to and including 150mm, partially threaded thereafter.
• DIN Standard: DIN 603, DIN 934
• Feature 1: Manufactured from grade 4.8 carbon steel
• Feature 2: Hot dipped galvanised finish to withstand up to 500 hours salt spray
• Finish: Hot Dipped Galvanised
• Head Dia. mm: 30.00
• Head Type: Dome
• Included Items: M12 Hex Full Nuts
• Inner Thread Dia. mm: 11.90
• Length mm: 200
• Material: Carbon Steel
• Material Grade: 4.8
• MOQ: 1
• MOQ Increment: 1
• Nut Size mm: M12
• Nut Socket Size mm: 19
• Nut Type: Hex Full
• Pack Dimensions L x W x H mm: 268 x 76 x 64
• Pack Quantity: 10
• Pack Quantity Unit: Pieces
• Pack Type: Box
• Pack Weight kg: 1.960
• Pallet Qty Packs: 320
• Point Type: B Point
• Product Code: 12200CBG
• Size mm: M12 x 200
• SKU Barcode: 5056110833286
• Substrates: Hardwood, Softwood
• Thread Coverage: Partially Threaded
• Thread Dia. mm: M12
• Thread Pitch mm: 1.75
• Thread Type: Metric
