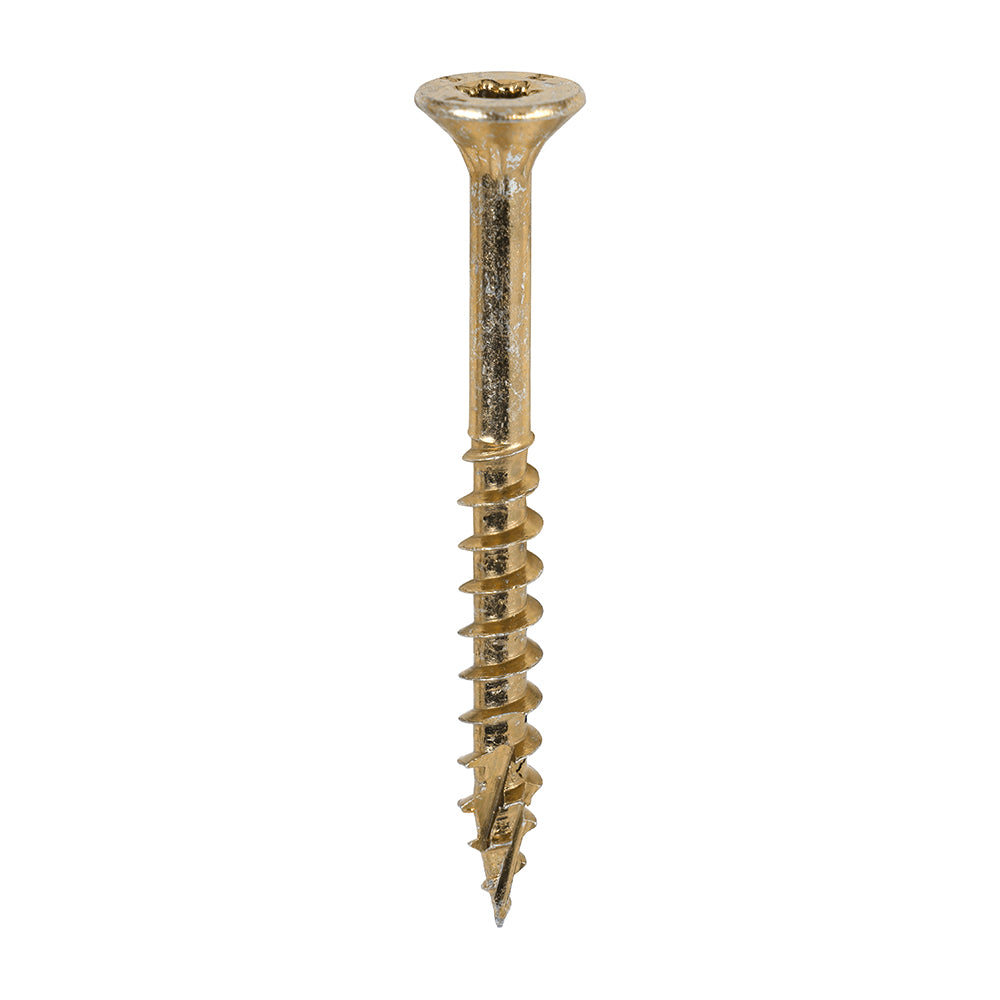

TIMCO C2 Clamp-Fix Multi-Purpose Premium Countersunk Gold Woodscrews - 5.0 x 50

TIMCO C2 Clamp-Fix Multi-Purpose Premium Countersunk Gold Woodscrews - 5.0 x 50

Product Code: 50050C2CTUB

Brand: TIMCO

Category: Screws

Product Specifications:

• Application: Joinery, Carpentry, Timber Construction, Furniture Manufacturing
• Brand: TIMCO
• CE Standard Web: BS EN 14592:2008
• Colour: Yellow
• Corrosion Rating: 2 - Occasionally damp/wet, rural and sheltered areas
• Description: The C2 Clamp-Fix provides a high performance clamping solution that is specifically designed to prevent timber "jacking”. Ideal for timber-to-timber applications where a secure and stable connection is required. ?C2 is a revolutionary high-performance screw designed using modern manufacturing methods and an innovative twin-cut point, ensuring consistent and rapid pick-up while reducing timber splitting. Its superior h
• Diameter mm: 5.0
• Driver Bit Size: TX25
• Feature 1: Precision TX drive recess to prevent 'cam-out', giving a precise and positive drive control on every screw
• Feature 2: Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
• Feature 3: Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
• Feature 4: Dual angle thread for ultimate performance and exceptionally high pull-out resistance
• Feature 5: Patented twin cut technology for rapid "pick-up" and reduces timber splitting
• Feature 6: Partially threaded from 40mm
• Finish: Zinc & Yellow
• Gauge: 10
• Head Dia. mm: 9.70
• Head Type: Double Countersunk with Ribs

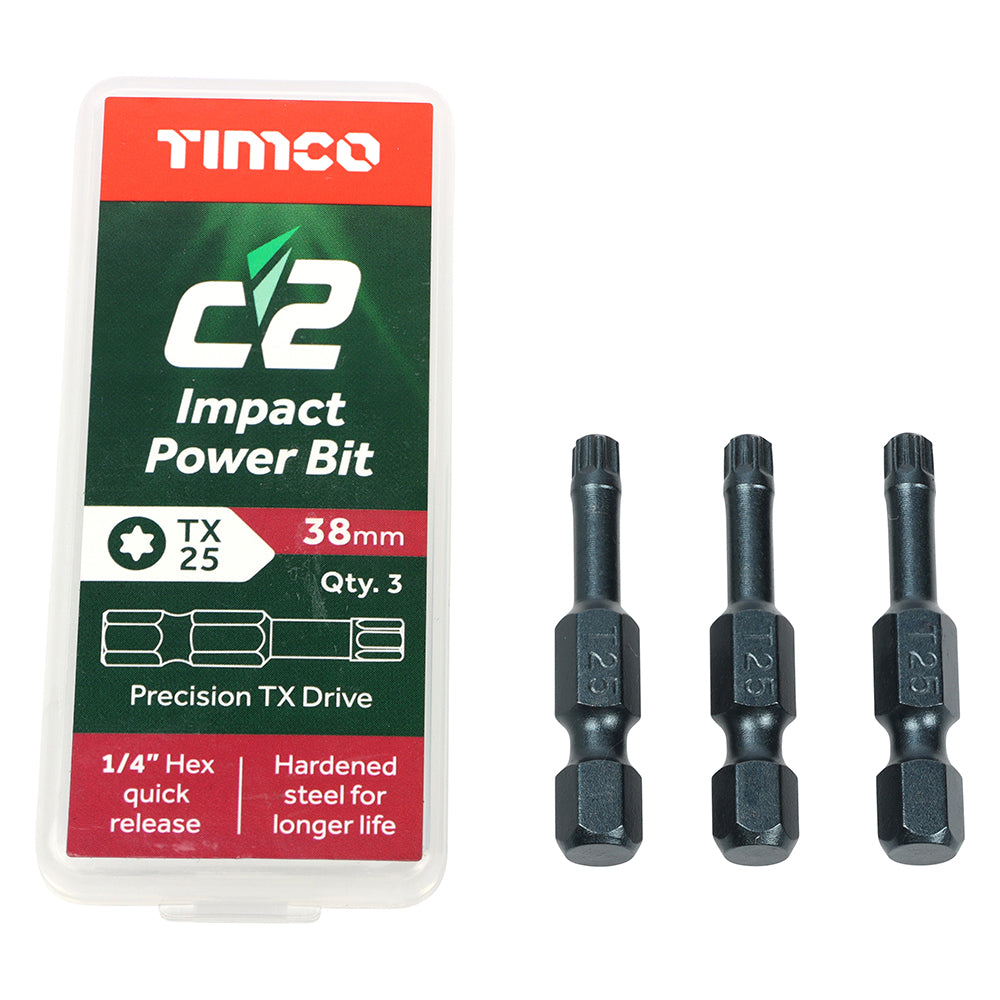

• Included Items: TX25 38mm Impact Power Bit (Qty 3)
• Indoor Outdoor Usage: Indoor
• Inner Thread Dia. mm: 2.95
• Length inch: 2
• Length mm: 50
• Lubrication: Gleitmo
• Material: Hardened Steel
• Max Clamping Fixture Thickness mm: 20
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 160 x 140 x 118
• Pack Quantity: 600
• Pack Quantity Unit: Pieces

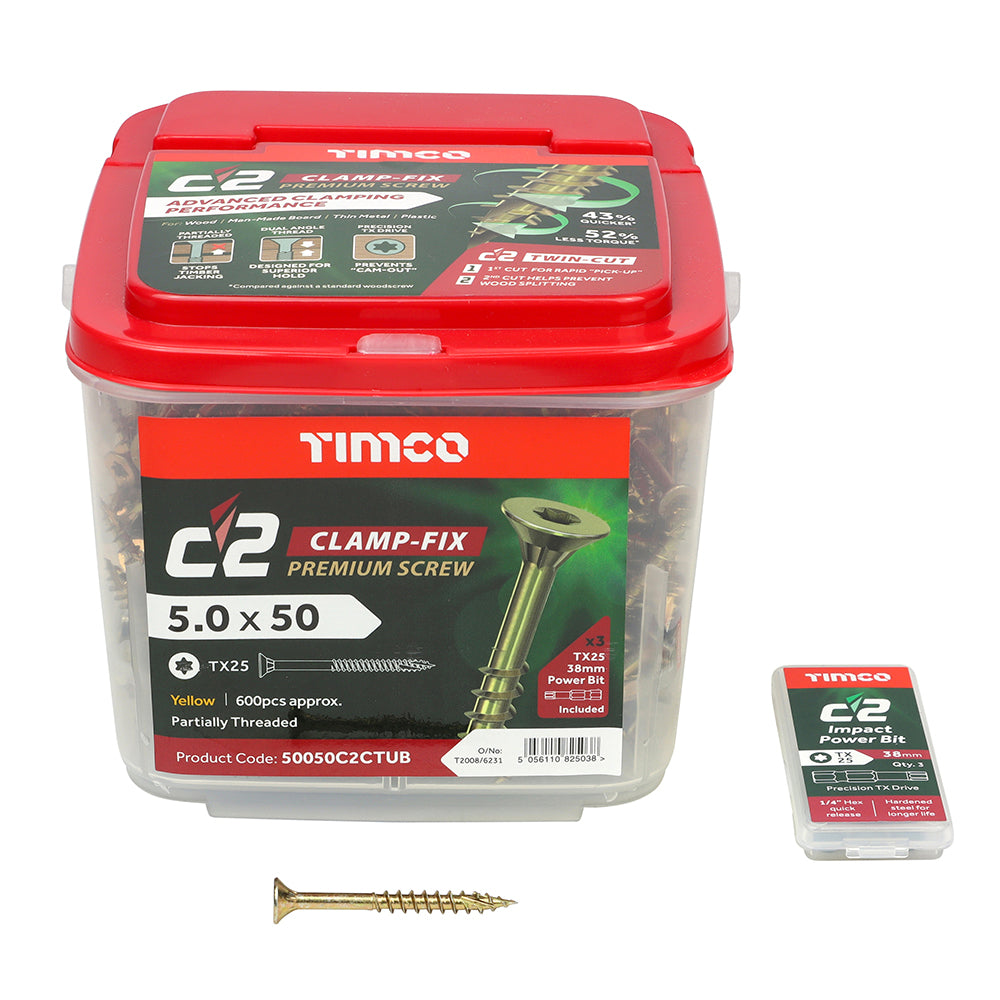

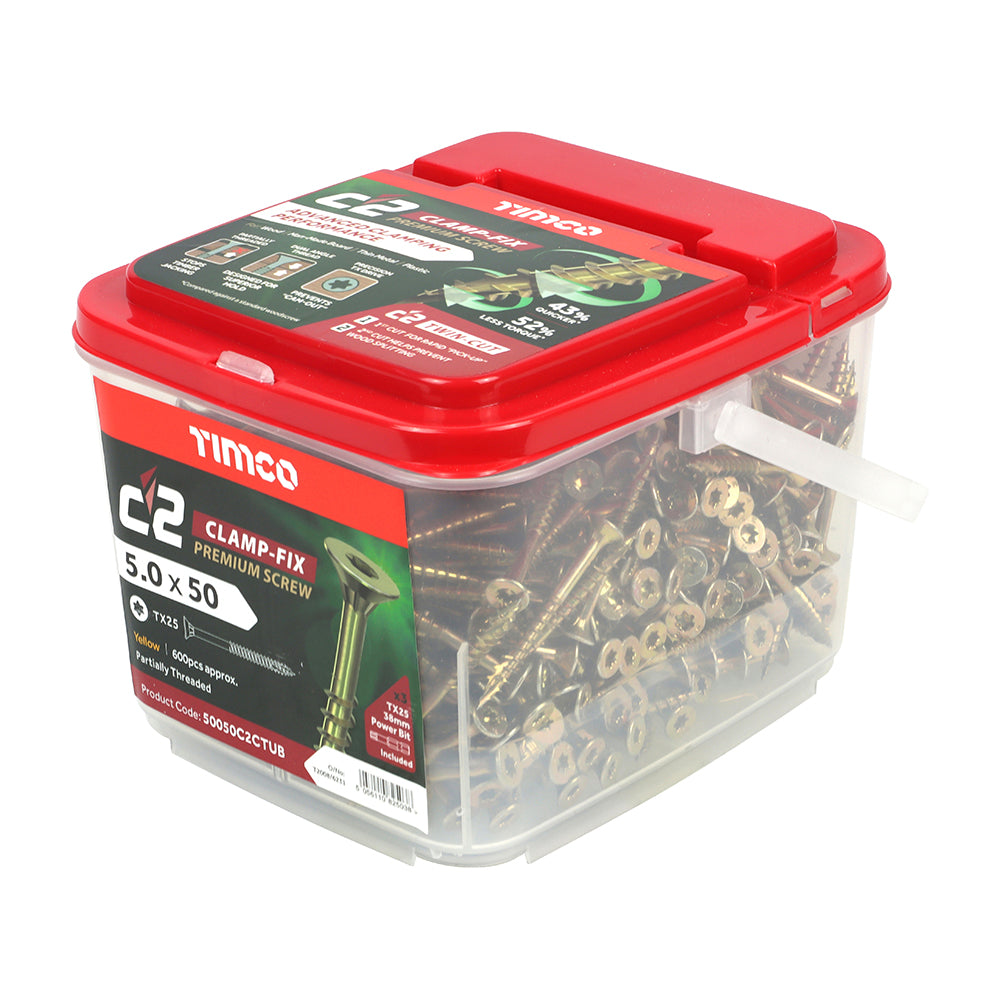

• Pack Type: Tub
• Pack Weight kg: 2.666
• Pallet Qty Packs: 180
• Point Type: Twin-Cut
• Product Code: 50050C2CTUB
• Recess Type: TX Drive
• Resistant Type: Corrosion-Resistant
• Size: 5.0 x 50
• Size imp.: 10 x 2
• Size mm: 5.0 x 50
• SKU Barcode: 5056110825038
• Substrates: Hardwood, Softwood, Chipboard, MDF, Thin Sheet Metal, Plastic
• Thread Coverage: Partially Threaded
• Thread Dia. mm: 5.0
• Thread Length mm: 30
• Thread Type: 40° Single
