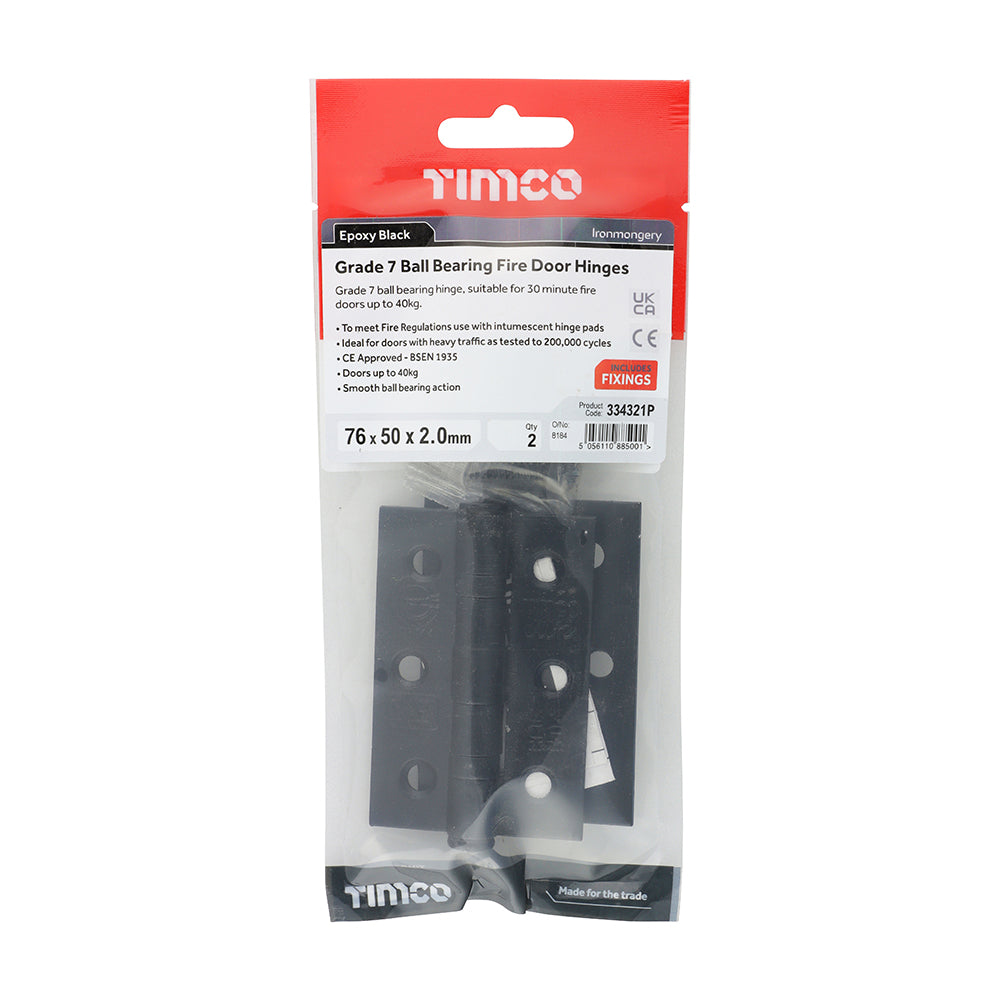

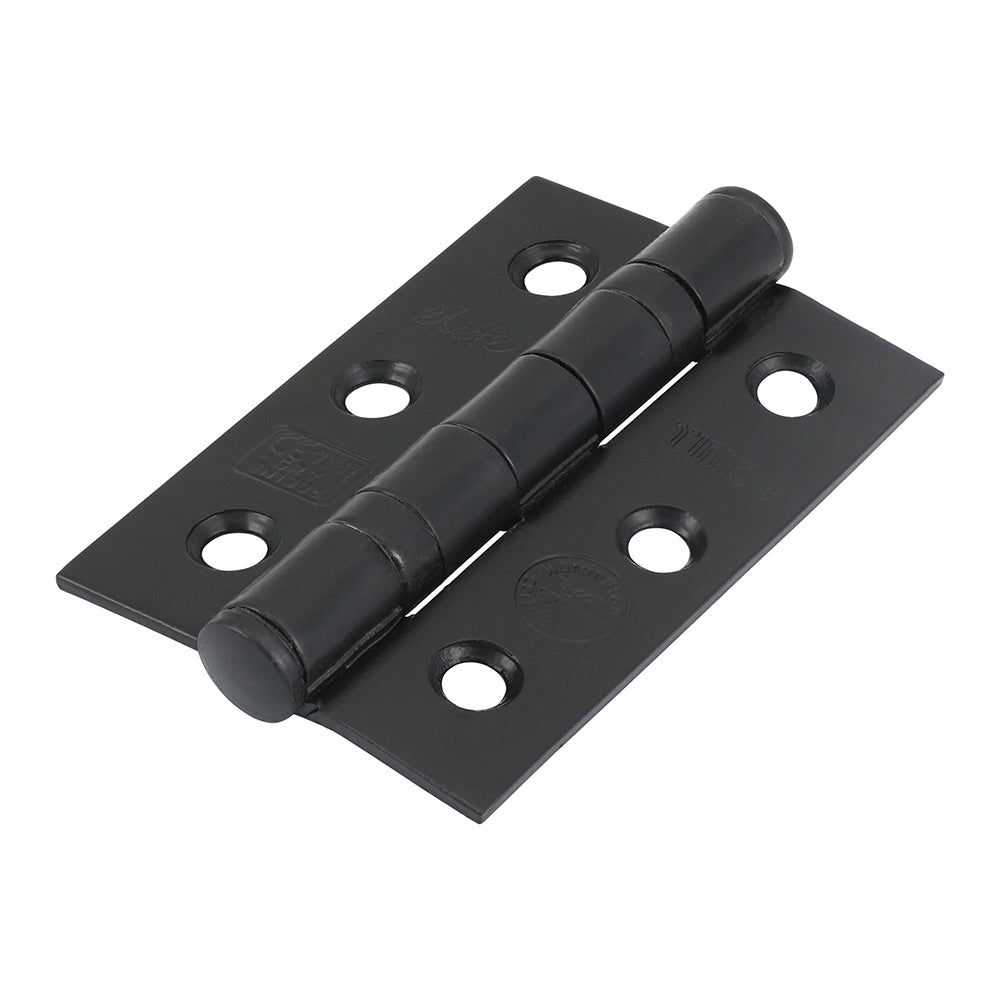

TIMCO Ball Bearing Hinges Grade 7 Steel Epoxy Black - 76 x 51 x 2.2

TIMCO Ball Bearing Hinges Grade 7 Steel Epoxy Black - 76 x 51 x 2.2

Product Code: 334321P

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Brand: TIMCO
• BS EN Classification: 27211207
• Carton Qty Packs: 10
• CE Standard Web: BS EN 1935:2002
• Certifire Number: CF714
• Corner Type: Square
• Corrosion Rating: 2 - Occasionally damp/wet, rural and sheltered areas
• Description: Grade 7 ball bearing hinge, suitable for 30 minute fire doors up to 40kg, when used in conjunction with intumescent hinge pads.
• Feature 1: Suitable for 30 minute fire doors
• Feature 2: Doors up to 40kg
• Feature 3: Smooth ball bearing action
• Feature 4: Fixings included
• Finish: Epoxy Black
• Fire Rating: 30 & 60 Minutes
• Grade: 7
• Hole Dia. mm: 6.2
• Knuckle Dia. mm: 11.0
• Knuckle Type: Ball Bearing
• Length inch: 3
• Length mm: 76
• Material: Carbon Steel
• Max Door Weight kg: 40
• MOQ: 1
• MOQ Increment: 1
• No. of CSK Screws: 12
• Open Width mm: 50
• Pack Dimensions L x W x H mm: 194 x 86 x 23
• Pack Quantity: 1
• Pack Quantity Unit: Pairs
• Pack Type: TIMpac
• Pack Weight kg: 0.23
• Product Code: 334321P
• Rec Screw Dia. mm: 4.5
• Rec Screw Gauge imp.: 9
• Screw Size imp.: 9 x 1
• Screw Size mm: 4.0 x 25
• Screws Required Per Pair: 12
• Size imp.: 3
• Size L x W mm: 76 x 50
• SKU Barcode: 5056110885001
• Thickness mm: 2
