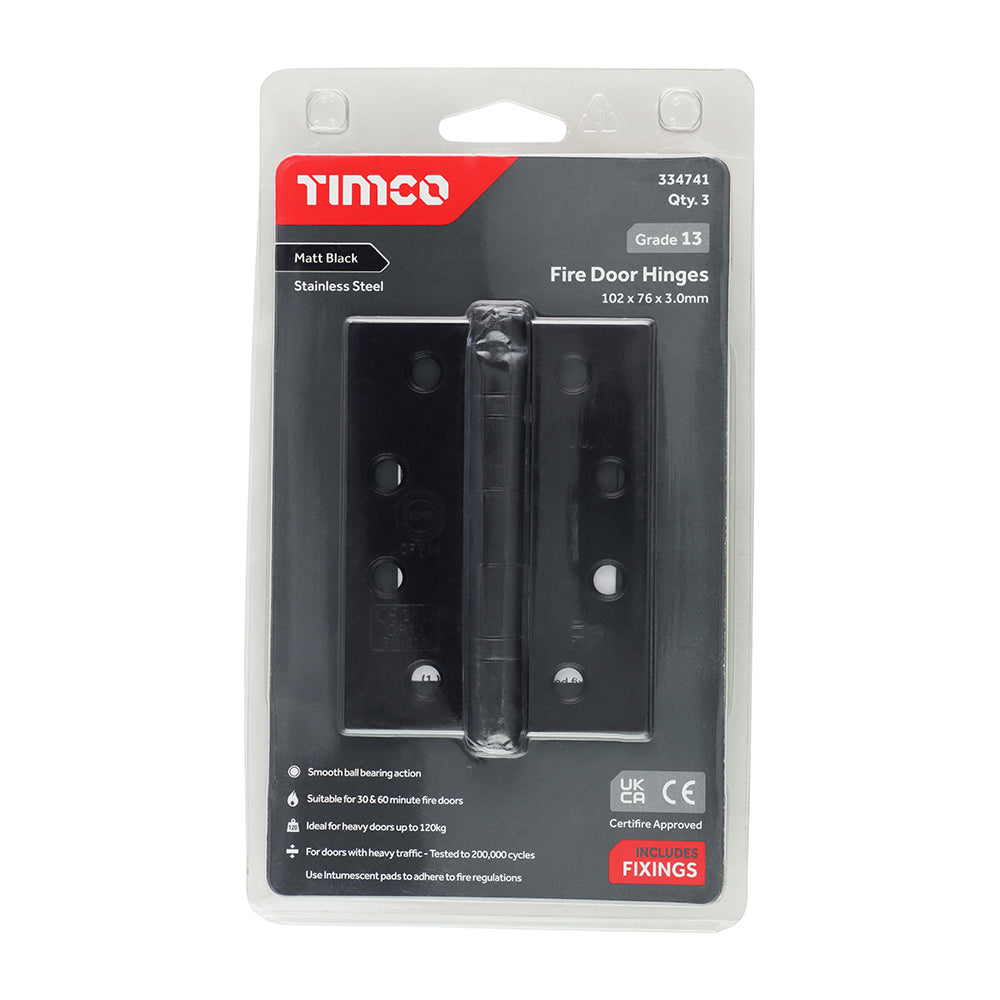

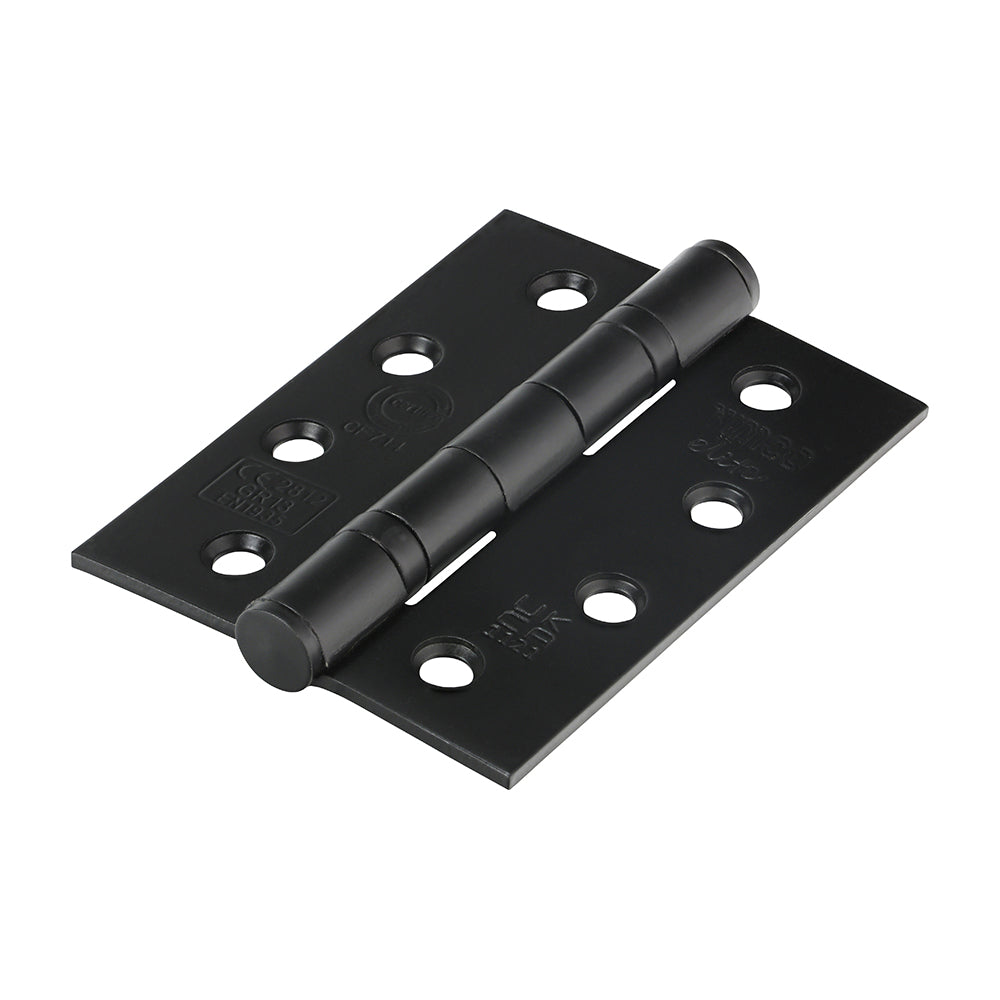

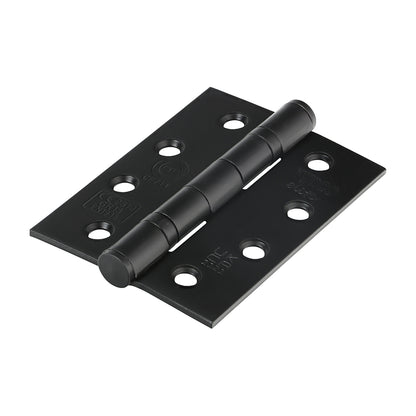

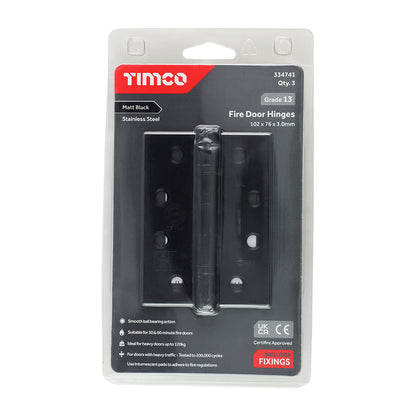

TIMCO Ball Bearing Hinges Grade 13 Stainless Steel Matt Black - 101 x 76 x 3.0

TIMCO Ball Bearing Hinges Grade 13 Stainless Steel Matt Black - 101 x 76 x 3.0

Product Code: 334741

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Brand: TIMCO
• BS EN Classification: 476114013
• Carton Qty Packs: 5
• CE Standard Web: BS EN 1935:2002
• Certifire Number: CF714
• Corner Type: Square
• Corrosion Rating: 3 - Urban & industrial areas with a low salt atmosphere
• Description: Designed for use on heavy duty fire doors in public buildings. Lubricated ball bearing washers provide a lifetime of smooth door operation making them ideal for use with door closers as they reduce closing friction. Fixings included. *Fit with intumescent hinge pads (not included, sold separately product code 487385) when fitting fire doors to adhere to fire regulations.
• Feature 1: Smooth ball bearing action
• Feature 2: Suitable for 30 & 60 minute fire doors weighing up to 120kg
• Feature 3: For doors with heavy traffic - tested to 200,000 cycles
• Feature 4: CE Approved - BS EN 1935
• Finish: Matt Black
• Fire Rating: 30 & 60 Minutes
• Grade: 13
• Knuckle Type: Ball Bearing
• Length mm: 101
• Material: Stainless Steel
• Max Door Weight kg: 120
• MOQ: 1
• MOQ Increment: 1
• No. of CSK Screws: 24
• Pack Dimensions L x W x H mm: 210 x 120 x 32
• Pack Quantity: 1.5
• Pack Quantity Unit: Pairs
• Pack Type: Blister Pack
• Pack Weight kg: 0.846
• Pallet Qty Packs: 560
• Product Code: 334741
• Rec Screw Dia. mm: 5.0
• Rec Screw Gauge imp.: 10
• Screw Size imp.: 10.0
• Screw Size mm: 5.0 x 30
• Size imp.: 4 x 3
• Size L x W mm: 101 x 76
• SKU Barcode: 5056110885391
• Thickness mm: 3.0
• Width mm: 76
