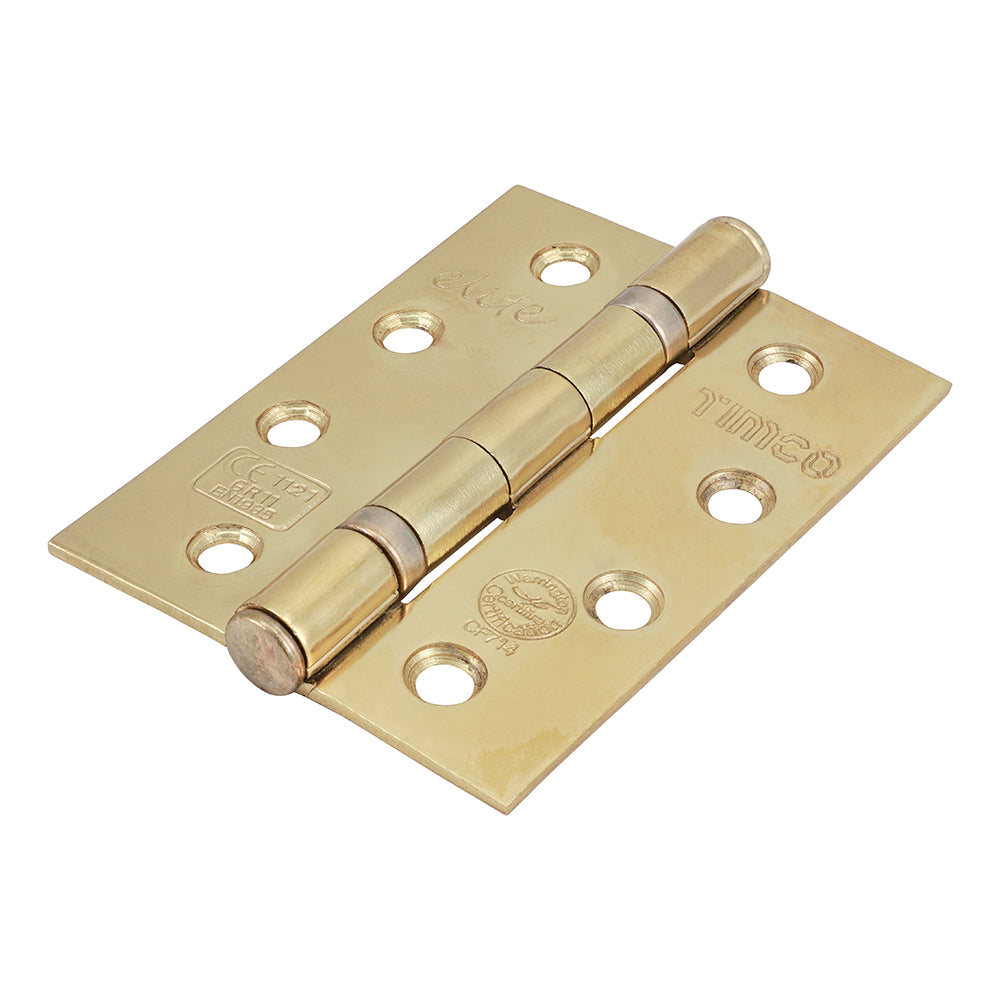

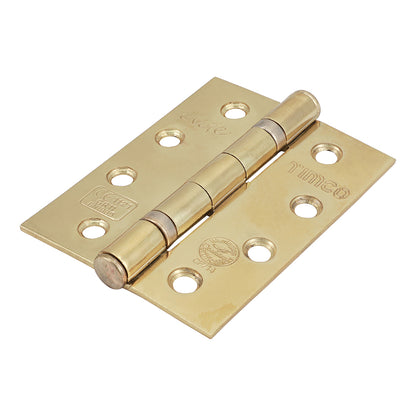

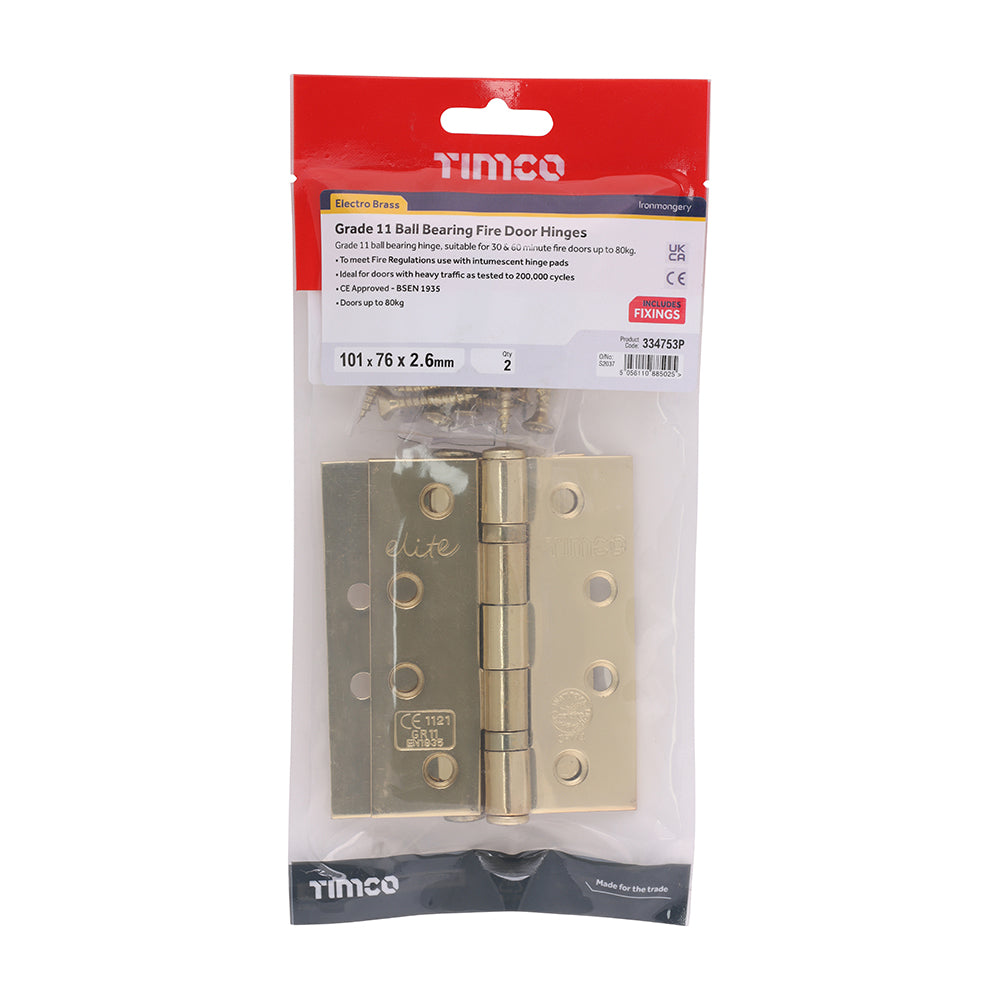

TIMCO Ball Bearing Hinges Grade 11 Steel Electro Brass - 102 x 76 x 2.7

TIMCO Ball Bearing Hinges Grade 11 Steel Electro Brass - 102 x 76 x 2.7

Product Code: 334753P

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Brand: TIMCO
• BS EN Classification: 374113011
• Carton Qty Packs: 10
• CE Standard Web: BS EN 1935:2002
• Certifire Number: CF714
• Corner Type: Square
• Corrosion Rating: 2 - Occasionally damp/wet, rural and sheltered areas
• Description: Grade 11 ball bearing hinge, suitable for 30 & 60 minute fire doors up to 80kg, when used in conjunction with intumescent hinge pads.
• Feature 1: Suitable for 30 & 60 minute fire doors
• Feature 2: Doors up to 80kg
• Feature 3: Smooth ball bearing action
• Feature 4: Fixings included
• Finish: Electro Brass
• Fire Rating: 30 & 60 Minutes
• Grade: 11
• Hole Dia. mm: 7.2
• Knuckle Dia. mm: 12.5
• Knuckle Type: Ball Bearing
• Length inch: 4
• Length mm: 101
• Material: Carbon Steel
• Max Door Weight kg: 80
• MOQ: 1
• MOQ Increment: 1
• No. of CSK Screws: 16
• Open Width mm: 76
• Pack Dimensions L x W x H mm: 237 x 116 x 20
• Pack Quantity: 1
• Pack Quantity Unit: Pairs
• Pack Type: TIMbag
• Pack Weight kg: 0.466
• Product Code: 334753P
• Rec Screw Dia. mm: 5.0
• Rec Screw Gauge imp.: 10
• Screw Size imp.: 10 x 1 1/4
• Screw Size mm: 5.0 x 30
• Screws Required Per Pair: 16
• Size imp.: 4
• Size L x W mm: 101 x 76
• SKU Barcode: 5056110885025
• Thickness mm: 2.6
