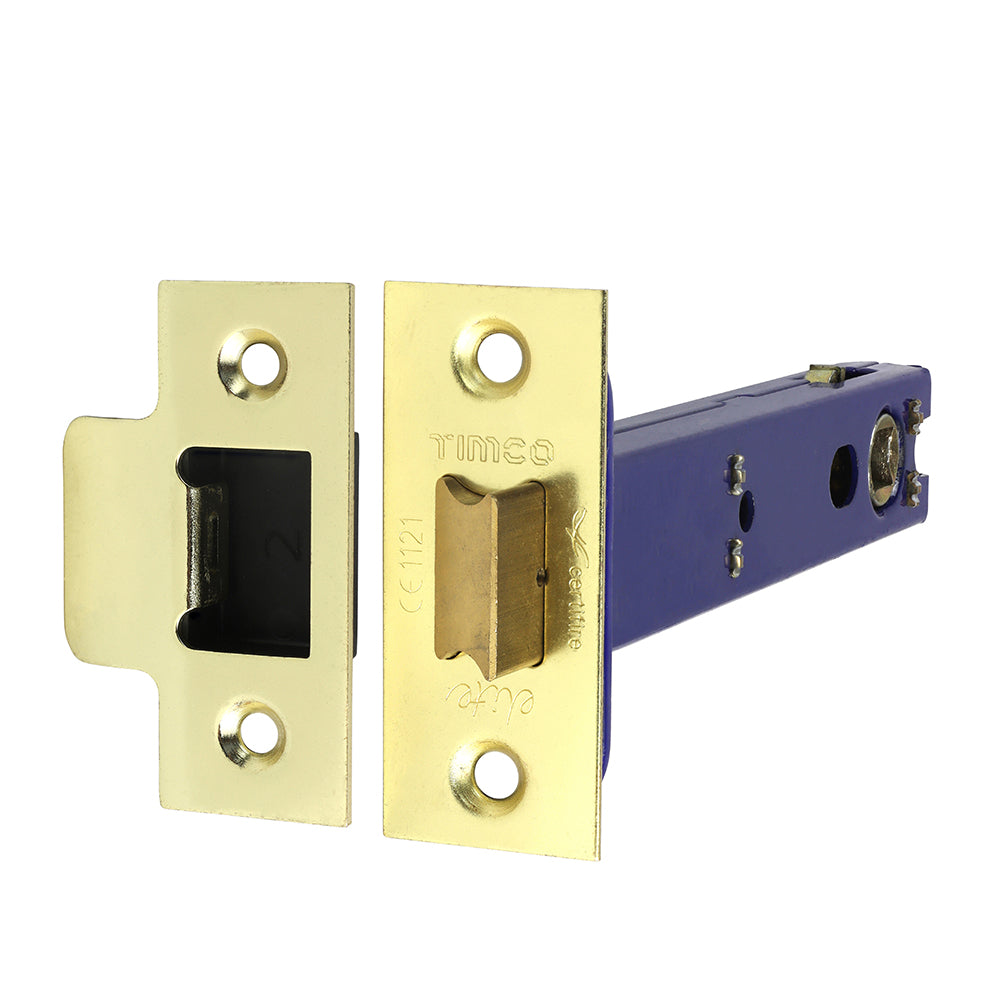

TIMCO Architectural Tubular Latch - Electro Brass & Satin Nickel - 128mm

TIMCO Architectural Tubular Latch - Electro Brass & Satin Nickel - 128mm

Product Code: 675015P

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Backset mm: 107.5
• Brand: TIMCO
• BS EN Classification: 1M410F-B010
• Carton Qty Packs: 10
• CE Standard Web: BS EN 12209:2003
• Certifire Number: CF5531
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: A heavy duty architectural pattern tubular latch for use in high use domestic and commercial applications. The latch features a heavy duty spring mechanism and be used with sprung and unsprung door handles.
• Faceplate Size H x W mm: 60 x 25
• Faceplate Type: Square
• Feature 1: Suitable for 30 & 60 minute fire doors
• Feature 2: Easily reversible by turning the live latch/bolt, suitable for both left and right hand operation
• Feature 3: Fixings for electro brass & satin nickel furniture
• Feature 4: Use with sprung or unsprung furniture
• Feature 5: Bolt through
• Feature 6: Complete with dust box and fixing screws
• Finish: Electro Brass, Satin Nickel
• Fire Rating: 30 & 60 Minutes
• Keep Size H x W mm: 65 x 25
• Lock Case Depth mm: 128
• Lock Case Height mm: 22.5
• Lock Case Size H x D mm: 22.5 x 128
• Lock Case Width mm: 15
• Lock Follower Backset mm: 107.5
• Material: Steel
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 236 x 115 x 28
• Pack Quantity: 1
• Pack Quantity Unit: Each

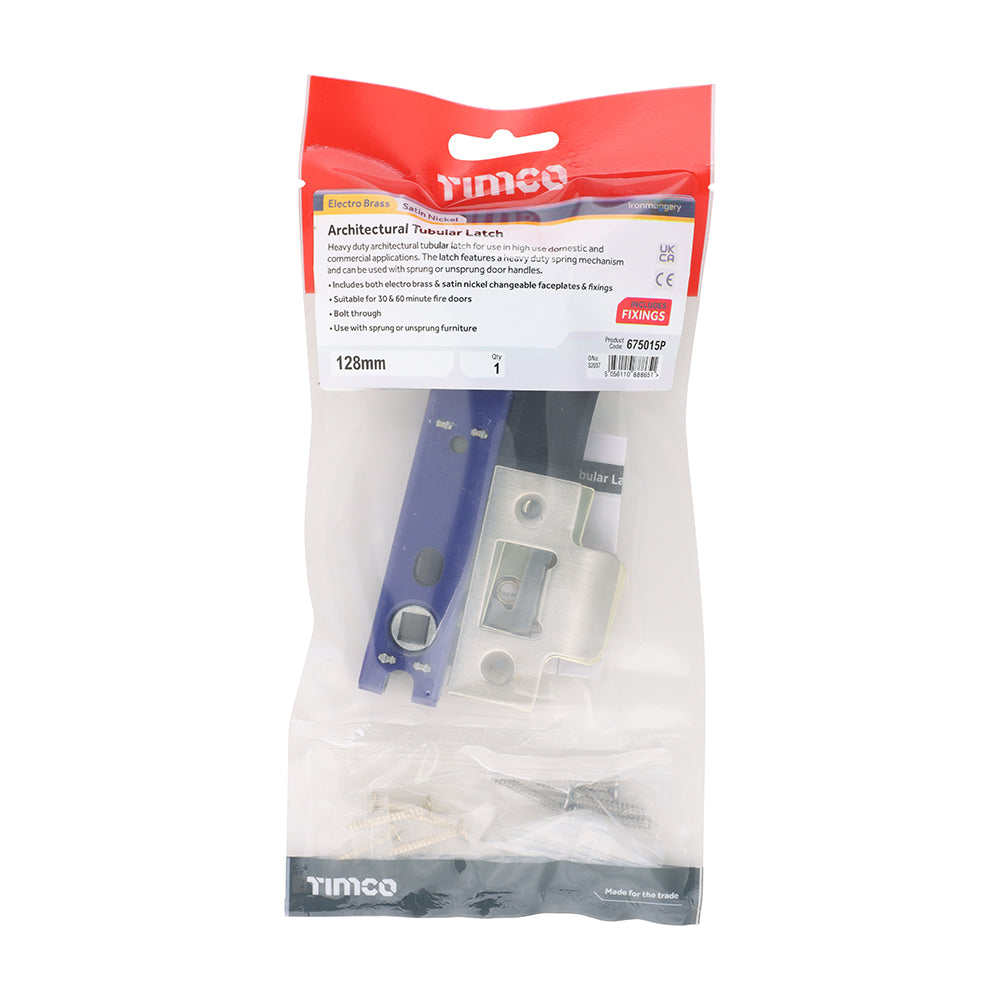

• Pack Type: TIMbag
• Pack Weight kg: 0.230
• Product Code: 675015P
• Screw Size imp.: 8 x 1
• Screw Size mm: 4.0 x 25
• Size imp.: 5
• Size mm: 128 / 107.5
• SKU Barcode: 5056110888651
