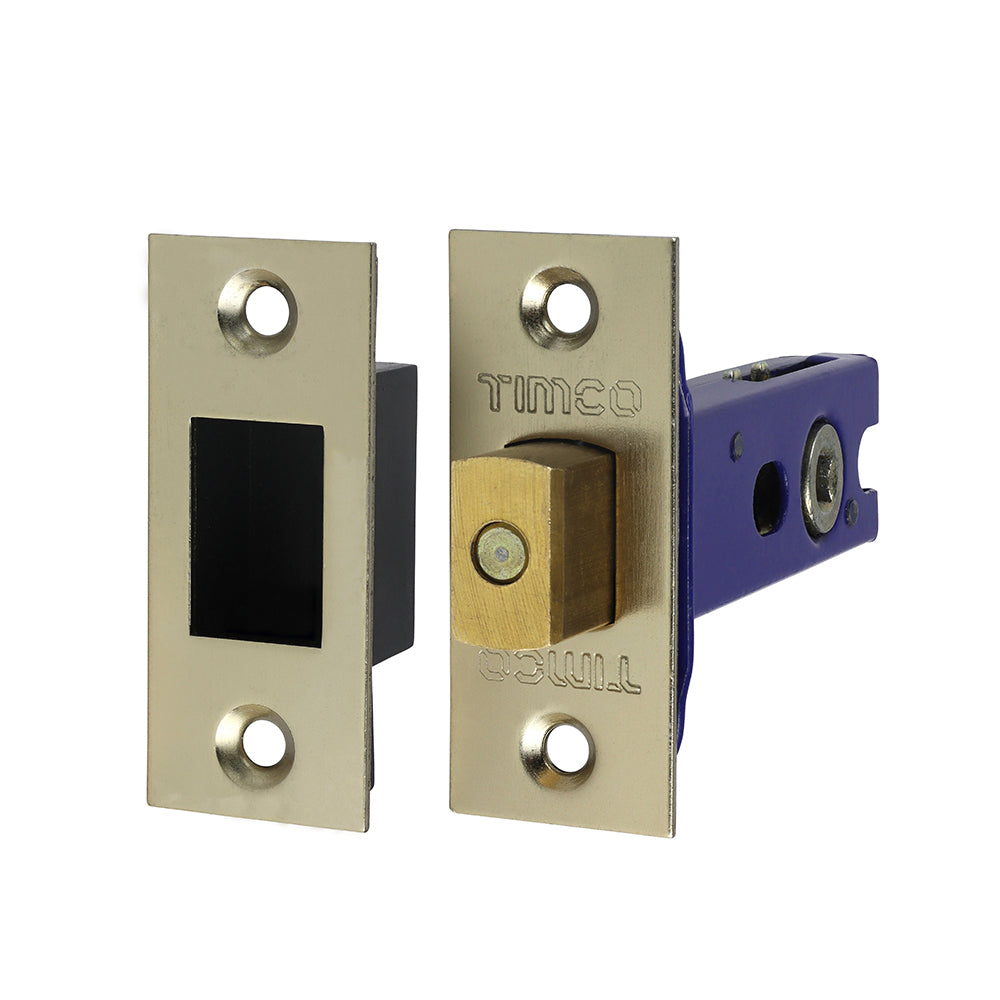

TIMCO Architectural Tubular Deadbolt Electro Brass & Satin Nickel - 78mm

TIMCO Architectural Tubular Deadbolt Electro Brass & Satin Nickel - 78mm

Product Code: 675606

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Backset mm: 57.0
• Bolt Throw mm: 15
• Brand: TIMCO
• Carton Qty Packs: 10
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: A heavy duty architectural pattern tubular deadbolt for use in high use domestic and commercial applications. The deadbolt is to be used in conjunction with a bathroom turn that has a 5mm spindle.
• Faceplate Size H x W mm: 60 x 25
• Faceplate Type: Square
• Feature 1: Fixings for electro brass & satin nickel furniture
• Feature 2: Use with sprung or unsprung furniture
• Feature 3: Dust box
• Feature 4: Complete with fixing screws
• Finish: Electro Brass, Satin Nickel
• Keep Size H x W mm: 60 x 25
• Lock Case Depth mm: 78
• Lock Case Height mm: 22.5
• Lock Case Size H x D mm: 22.5 x 78
• Lock Case Width mm: 15
• Lock Follower Backset mm: 57.0
• MOQ: 1
• MOQ Increment: 1
• No. of CSK Screws: 4
• Pack Dimensions L x W x H mm: 28 x 78 x 54
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Plain Bag
• Pack Weight kg: 0.184
• Pallet Qty Packs: 1,600
• Product Code: 675606
• Rec Screw Dia. mm: 4.0
• Rec Screw Gauge imp.: 8
• Screw Size imp.: 8 x 1
• Screw Size mm: 4.0 x 25
• Screws Required Per Pair: 4
• Size mm: 78 / 57
• SKU Barcode: 5056110837598
