TIMCO Architectural Tubular Deadbolt - Electro Brass & Satin Nickel - 103.5mm

TIMCO Architectural Tubular Deadbolt - Electro Brass & Satin Nickel - 103.5mm

Product Code: 675481P

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Backset mm: 82.5
• Bolt Throw mm: 15
• Brand: TIMCO
• Carton Qty Packs: 10
• Corrosion Rating: 1 - Clean, dry & low humidity environments

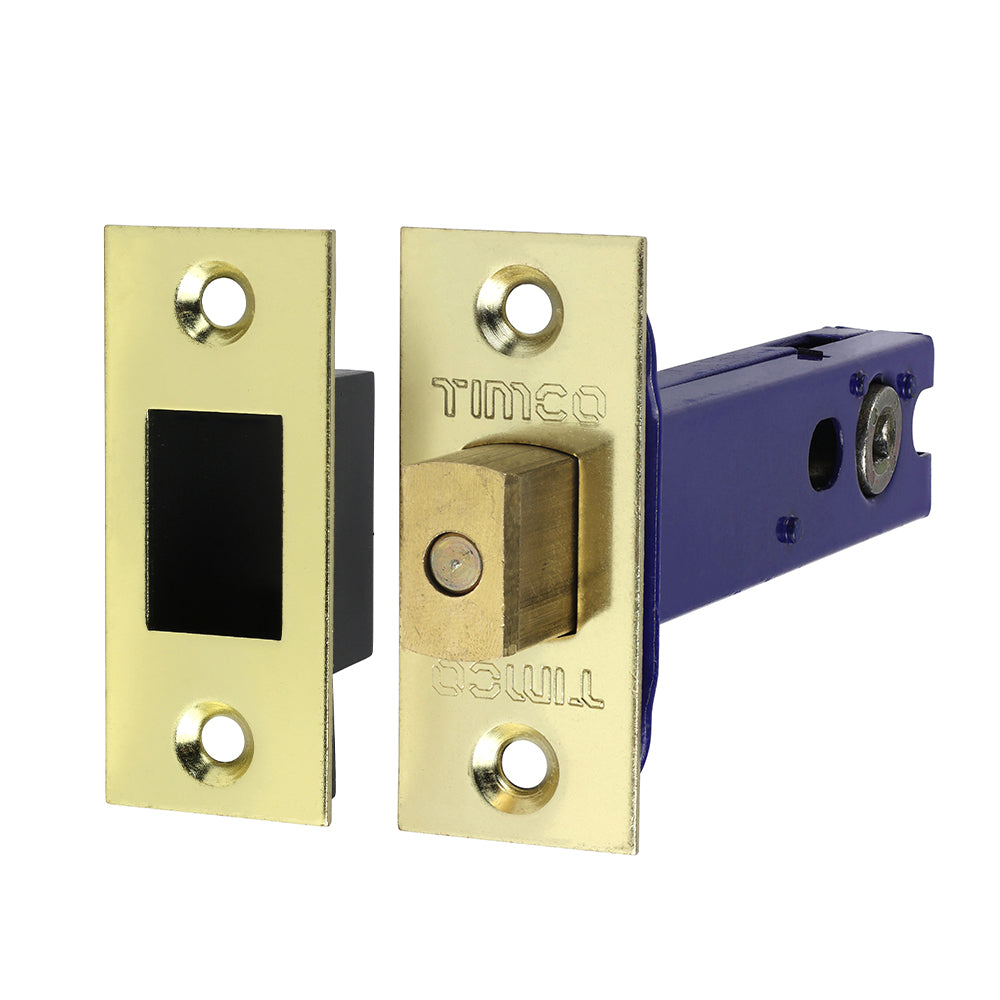

• Description: A heavy duty architectural pattern tubular deadbolt for use in high use domestic and commercial applications. The deadbolt is to be used in conjunction with a bathroom turn that has a 5mm spindle.
• Faceplate Size H x W mm: 60 x 25
• Faceplate Type: Square
• Feature 1: Fixings for electro brass & satin nickel furniture
• Feature 2: Use with sprung or unsprung furniture
• Feature 3: Dust box
• Feature 4: Complete with fixing screws
• Finish: Electro Brass, Satin Nickel
• Keep Size H x W mm: 60 x 25
• Lock Case Depth mm: 103.5
• Lock Case Height mm: 22.5
• Lock Case Size H x D mm: 22.5 x 103.5
• Lock Case Width mm: 15
• Lock Follower Backset mm: 82.5
• Material: Steel
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 235 x 115 x 29
• Pack Quantity: 1
• Pack Quantity Unit: Each

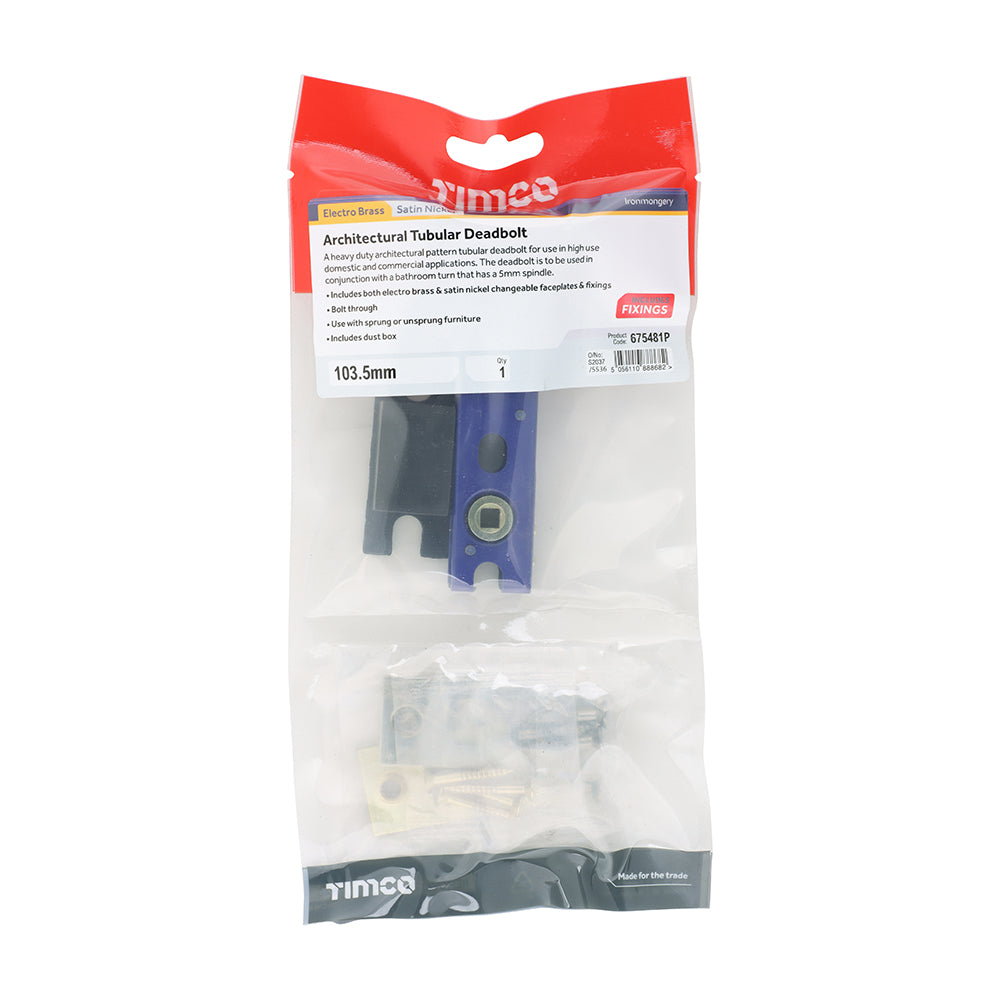

• Pack Type: TIMbag
• Pack Weight kg: 0.210
• Product Code: 675481P
• Screw Size imp.: 8 x 1
• Screw Size mm: 4.0 x 25
• Size imp.: 4
• Size mm: 103.5 / 82.5
• SKU Barcode: 5056110888682
