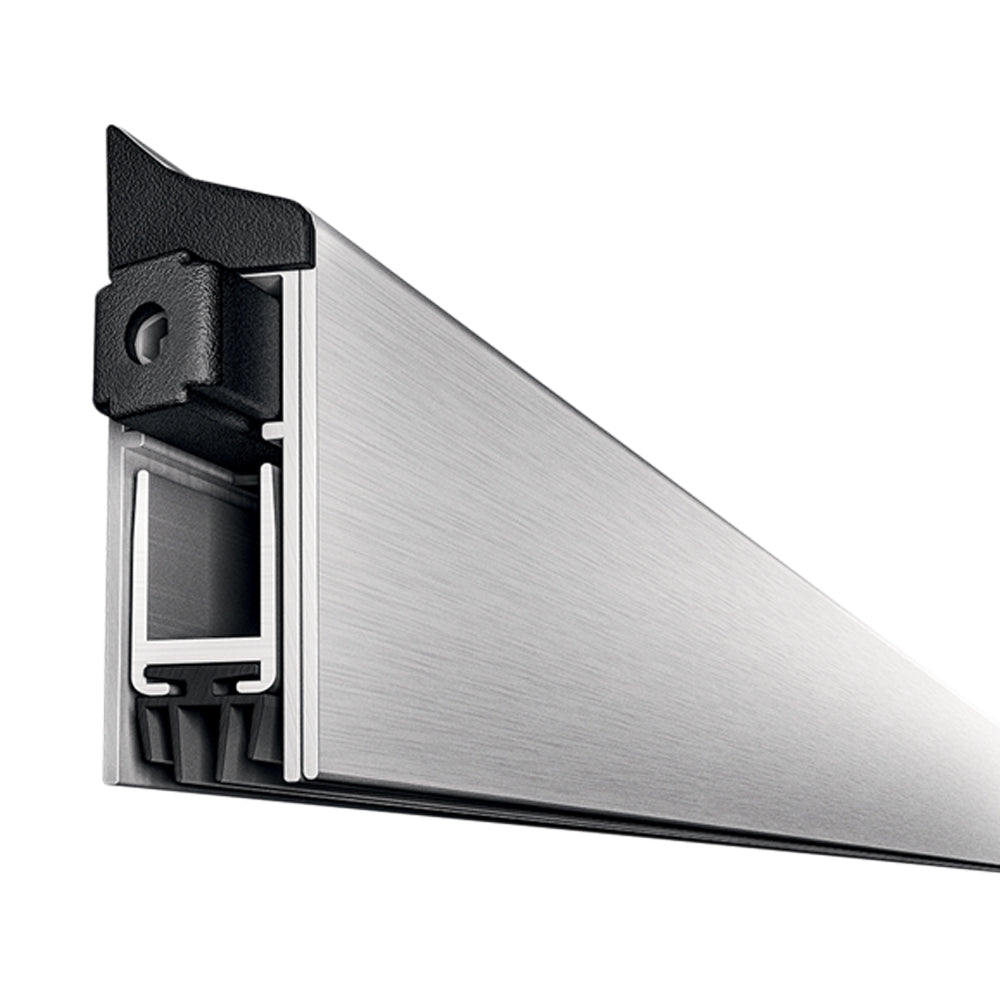

TIMCO Applique Automatic Drop Down Seal Satin Anodised Aluminium - 1160 x 40mm

TIMCO Applique Automatic Drop Down Seal Satin Anodised Aluminium - 1160 x 40mm

Product Code: 487333

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Acoustic Rating: 37dB Rw
• Approval: BS EN ISO 140-3: 1995, BS476: Part 20/22: 1987, BS EN 1634-3: 2004
• Brand: TIMCO
• Carton Qty Packs: 5
• Description: The seals are activated by the closing action of the door, dropping down to seal only when the door is closed. This leaves the door threshold clear and flat, without the need for high fixed thresholds. Designed to form an effective barrier against the outside climate, noise, light, fire, smoke and insects. They provide a cost-effective solution for document part E and part M of the latest UK building regulations relating to disability access and
• Feature 1: Surface mounted for retro fitting on timber door sets
• Feature 10: Smoke tested to BS EN 1634-3: 2004
• Feature 11: Fixings included
• Feature 2: Screw fix (screws supplied)
• Feature 3: Can be fitted to inside (lock side) using bumper provided or outside of the door (non lock side)
• Feature 4: Seal drops on hinge side before lock side
• Feature 5: Galvanised steel flat springs and reinforced actuators
• Feature 6: 4-fin high quality 'V' zero class PVC rubber seal, self extinguishing
• Feature 7: 14mm maximum drop
• Feature 8: Acoustic testing BS EN ISO 140-3: 1995 rating of up to 37dB Rw
• Feature 9: Fire tested to BS476: Part 20/22: 1987 to 60 minutes
• Fire Rating: 60 Minutes
• Height mm: 40
• Length mm: 1030
• Material: Satin Anodised Aluminium
• Max. Drop mm: 14
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 1130 x 59 x 28
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Bag
• Pack Weight kg: 0.530
• Pallet Qty Packs: 400
• Product Code: 487333
• Size mm: 1030 x 40 x 13
• SKU Barcode: 5056110899527
• Width mm: 13
