TIMCO Adjustable Gate Hinge Set With Hook On Plate Hot Dipped Galvanised - 300mm

TIMCO Adjustable Gate Hinge Set With Hook On Plate Hot Dipped Galvanised - 300mm

Product Code: AFHP300G

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Brand: TIMCO
• Carriage Bolt Size mm: M10 x 95
• Carton Qty Packs: 4
• Coach Screw Size mm: M10 x 65

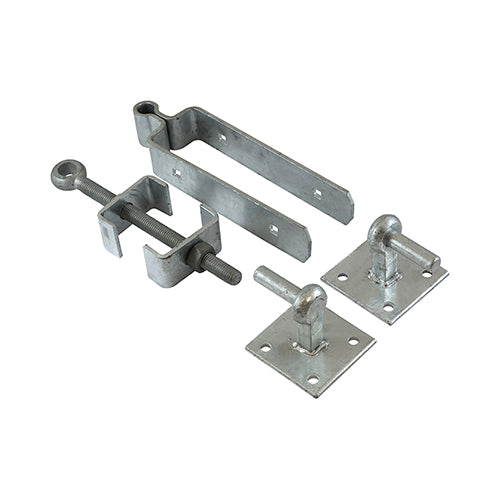

• Contents: 300mm Top Strap (Qty 1) ?M19 x 250mm Adjustable Bottom Fitting (Qty 1) ?100 x 100mm Hook on Plates (Qty 2) ?M10 x 95mm Carriage Bolts (Qty 2) ?M10 x 65mm Coach Screws (Qty 8) ?M10 Full Hex Nuts (Qty 2) ?M10 Washers (Qty 2)
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• Description: Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band wraps around the gate and are fixed with cup square bolts to firmly secure in place. The bottom fitting clamps around the heel of the gate and is adjustable to allow for easy gate alignment after fitting. This is particularly useful when hanging pairs of gates. Depending o
• Feature 1: Hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate being lifted off
• Feature 2: Hooks to drive are barbed, preventing the gate from working loose
• Finish: Hot Dipped Galvanised
• Gate Eye Dia. x L mm: M19 x 250
• Heel Clip Size L x W x D mm: 86 x 50 x 32
• Hook Plate Size L x W mm: 100 x 100
• Material: Carbon Steel
• MOQ: 1
• MOQ Increment: 1
• No. of Carriage Bolts: 2
• No. of Coach Screws: 8
• No. of Nuts: 2
• No. of Washers: 2
• Nut Size mm: M10
• Nut Type: Hex Full
• Pack Dimensions L x W x H mm: 178 x 30 x 457
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Plain Bag
• Pack Weight kg: 5.260
• Pallet Qty Packs: 120
• Pin Dia. inch:
• Pin Dia. mm: 19.0
• Product Code: AFHP300G
• SKU Barcode: 5055893361160
• Strap Thickness mm: 6.0
• To Fit Carriage Bolt Dia. mm: M10
• To Suit Gate Thickness inch: 3
• To Suit Gate Thickness mm: 75
• To Suit Gate Width ft: 3 - 4
• To Suit Gate Width mm: 900 - 1200
• Top Strap L inch: 12
• Top Strap L mm: 300
• Type: Adjustable
• Washer Size mm: M10
• Washer Type: Form A
