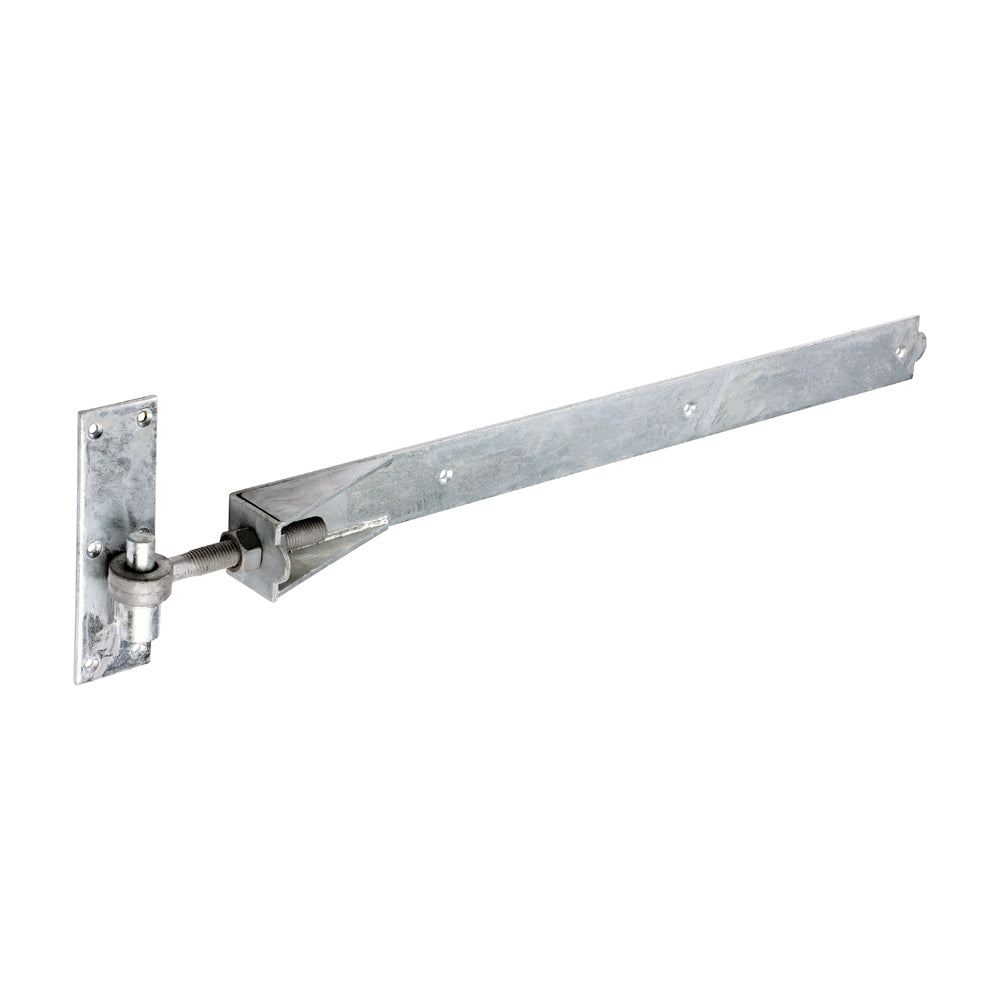

TIMCO Adjustable Band & Hook on Plates Hinges Hot Dipped Galvanised - 750mm

TIMCO Adjustable Band & Hook on Plates Hinges Hot Dipped Galvanised - 750mm

Product Code: ABH750G

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Band Length inch: 30
• Band Length mm: 750
• Band Thickness mm: 5.0
• Band Width mm: 60
• Brand: TIMCO
• Carriage Bolt Size mm: M12 x 65
• Carton Qty Packs: 4 Pairs
• Corrosion Rating: 4 - Urban & industrial areas with a moderate salt atmosphere
• CSK Screw Size mm: 6.0 x 40
• Description: Adjustable hook and band hinges are for hanging doors or gates flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic, commercial and agricultural applications. They feature an adjustable eye bolt to allow for gate alignment whilst being fitted or at a later stage if any movement occurs. Fixings included.
• Finish: Hot Dipped Galvanised
• Hook Plate Size L x W mm: 200 x 60
• Included Items: M12 x 65mm Carriage Bolts (Qty 2) ?M12 Hex Full Nuts (Qty 2) ?M12 Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 14)
• Material: Carbon Steel
• MOQ: 1
• MOQ Increment: 1
• No. of Bolt Holes: 2
• No. of Carriage Bolts: 2
• No. of CSK Screws: 14
• No. of Nuts: 2
• No. of Screw Holes: 14
• No. of Washers: 2
• Nut Size mm: M12
• Nut Type: Hex Full
• Pack Dimensions L x W x H mm: 152 x 30 x 914
• Pack Quantity: 1
• Pack Quantity Unit: Pairs
• Pack Type: Plain Bag
• Pack Weight kg: 7.280
• Pallet Qty Packs: 80 Pairs
• Pin Dia. inch: 3/4
• Pin Dia. mm: 19.0
• Product Code: ABH750G
• Rec Screw Dia. mm: 6.0
• Rec Screw Gauge imp.: 12
• SKU Barcode: 5055893360569
• To Fit Carriage Bolt Dia. mm: M12
• To Suit Gate Width mm: 1500 - 2250
• Type: Adjustable
• Washer Size mm: M12
