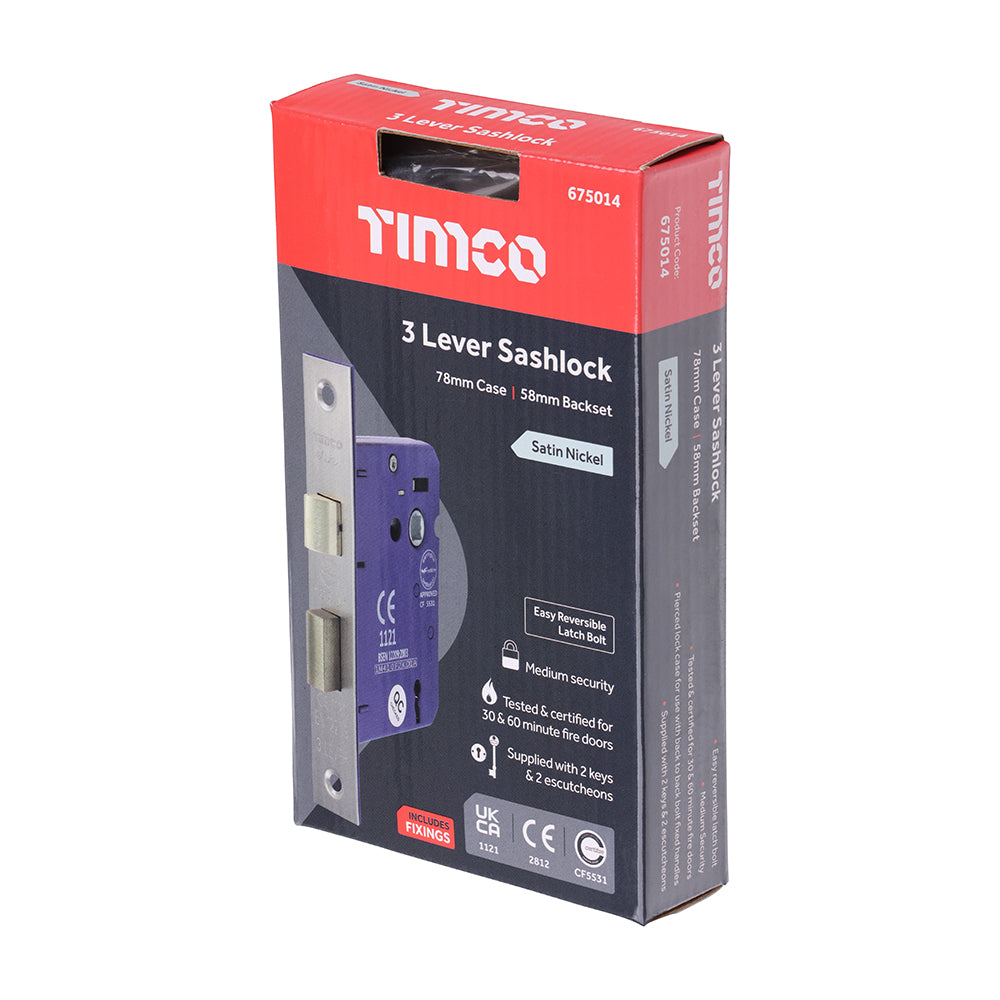

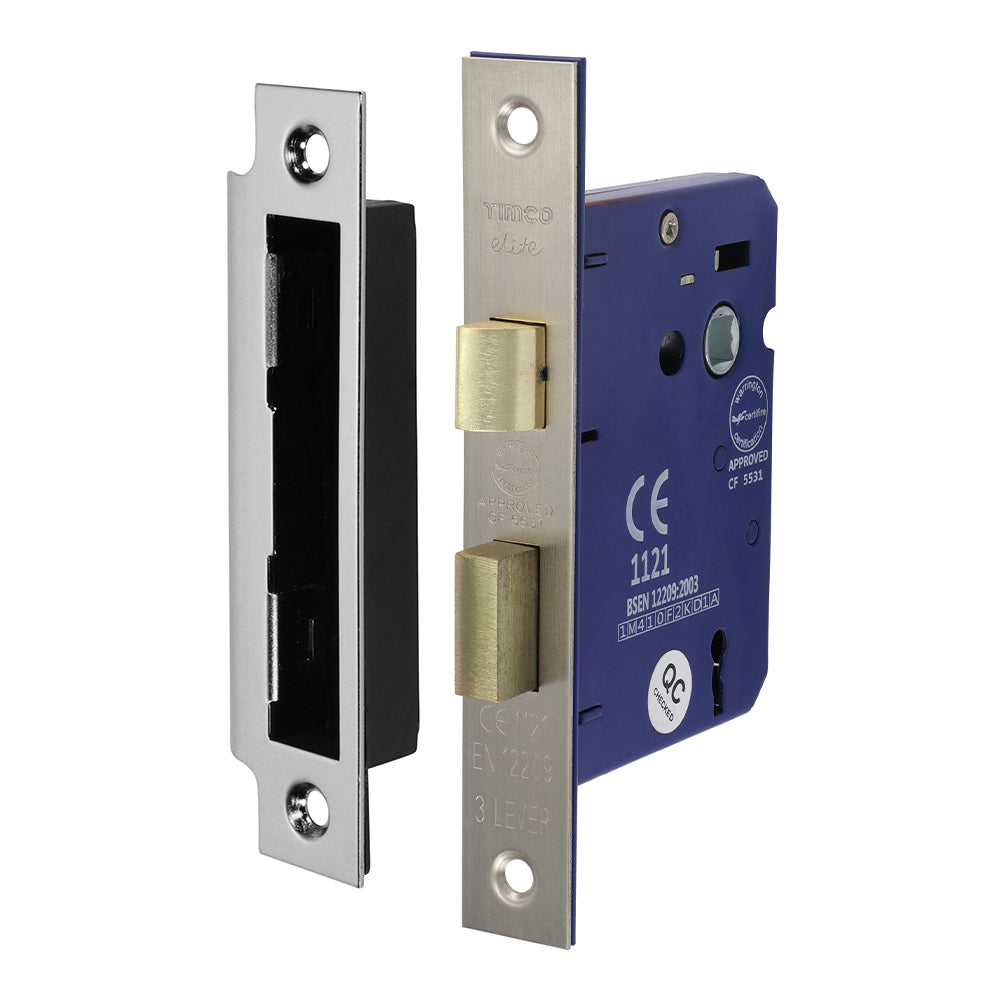

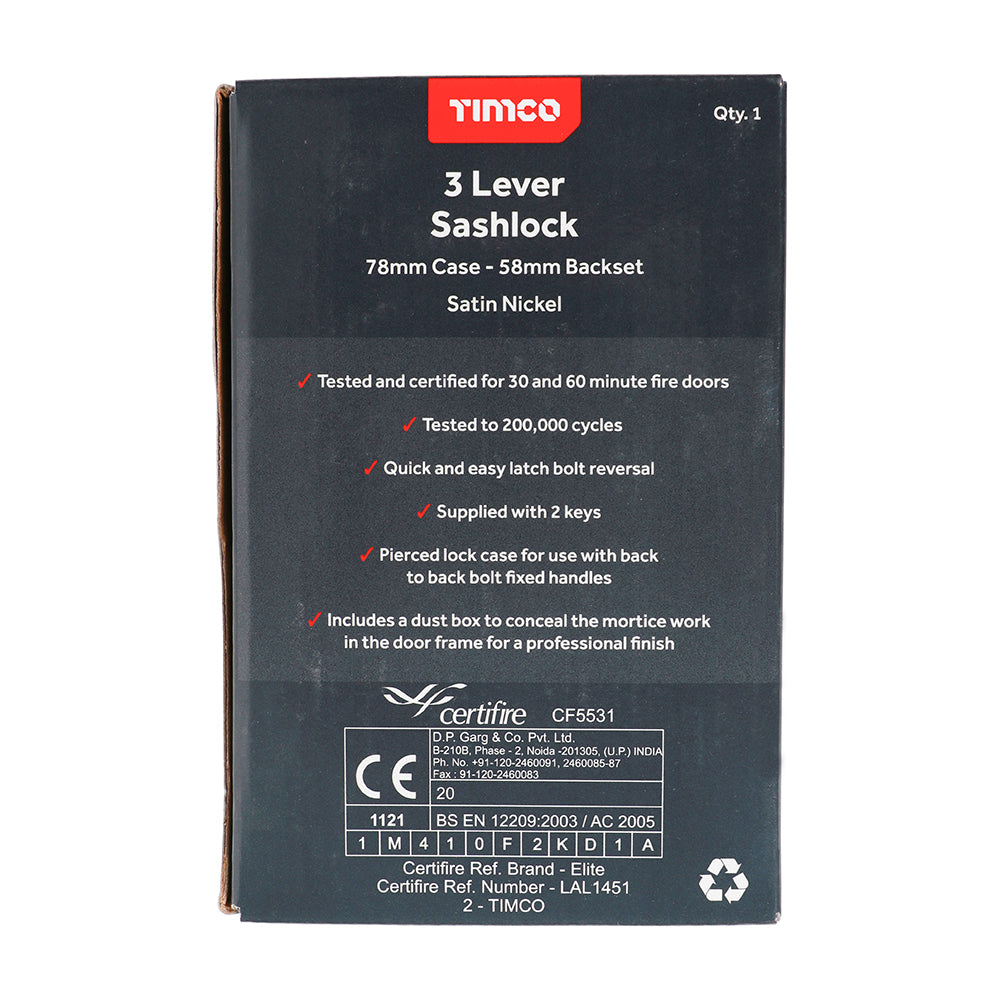

TIMCO 3 Lever Satin Nickel Mortice Sashlock 78mm Case 58mm Backset

TIMCO 3 Lever Satin Nickel Mortice Sashlock 78mm Case 58mm Backset

Product Code: 675014

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Backset mm: 58.0
• Bolt Throw mm: 13
• Brand: TIMCO
• BS EN Classification: 1M410F2KD1A
• Carton Qty Packs: 10
• CE Standard Web: BS EN 12209:2003
• Centres mm: 57.0
• Certifire Number: CF5531
• Corrosion Rating: 1 - Clean, dry & low humidity environments
• Description: A medium security sashlock that is ideal for use in domestic and commercial applications. The lock features a medium duty spring mechanism and is recommended to be used with sprung door handles.
• Faceplate Size H x W mm: 152 x 22
• Faceplate Type: Square
• Finish: Satin Nickel
• Fire Rating: 30 & 60 Minutes
• Keep Size H x W mm: 125 x 24
• Key Qty: 2
• Lock Case Depth mm: 78
• Lock Case Height mm: 102
• Lock Case Size H x D mm: 102 x 78
• Lock Case Width mm: 14
• Lock Follower Backset mm: 58.0
• MOQ: 1
• MOQ Increment: 1
• No. of CSK Screws: 4
• Pack Dimensions L x W x H mm: 162 x 98 x 32
• Pack Quantity: 1
• Pack Quantity Unit: Each
• Pack Type: Box
• Pack Weight kg: 0.420
• Pallet Qty Packs: 850
• Product Code: 675014
• Rec Screw Dia. mm: 4.0
• Rec Screw Gauge imp.: 8
• Screw Size imp.: 8 x 1
• Screw Size mm: 4.0 x 25
• Screws Required Per Pair: 4
• Size mm: 78 / 58
• SKU Barcode: 5056110837314
