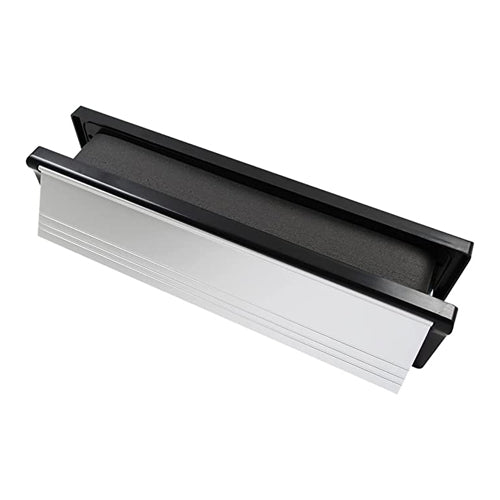

TIMCO 10" Intumescent Letterbox - Polished Silver (Black Frame) 272 x 70mm

TIMCO 10" Intumescent Letterbox - Polished Silver (Black Frame) 272 x 70mm

Product Code: 487457

Brand: TIMCO

Category: Security & Ironmongery

Product Specifications:

• Acoustic Rating: 32dB Rw
• Aperture Depth mm: 40 - 80
• Aperture Size W x L mm: 220 x 37.5
• Approval: BS EN 1634-1, BS 476 part 31/1: 1983, BS EN ISO 140-3: 1995, BS EN 13724 Clause 6.6.5
• Brand: TIMCO
• Carton Qty Packs: 10
• Centres mm: 238
• Description: A stylish ABS framed, telescopic letterbox, with metal flaps and fitted with a high performance intumescent liner. In the event of fire the intumescent liner expands rapidly and seals off the letterbox opening, preventing the spread of fire and smoke whilst maintaining the integrity of the fire door assembly.
• External Size W x L mm: 272 x 70
• Feature 1: Letterbox flap opens to 180° angle
• Feature 10: Ergonomic curved edge design
• Feature 11: Fixings included
• Feature 2: Smoke tested to BS 476 part 31/1: 1983
• Feature 3: Fire tested to BS 476 part 22: 1987 & BS EN 1634-1
• Feature 4: Acoustic tested to BS EN ISO 140-3: 1995 Achieving 32dB Rw
• Feature 5: Security tested to BS EN 13724 Clause 6.6.5 (Compliant within scope of PAS 23/24)
• Feature 6: Adjustable telescopic sleeve to suit 40mm - 80mm door thickness
• Feature 7: Fitted brush pile draught excluders
• Feature 8: Integral sound dampening bumpers
• Feature 9: Fully sealed backplate
• Finish: Polished Silver
• Fire Rating: 30 Minutes
• Frame Colour: Black
• Hole Dia. mm: 5.0
• Length mm: 70
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Max Door Thickness mm: 80
• MOQ: 1
• MOQ Increment: 1
• Pack Dimensions L x W x H mm: 300 x 84 x 80
• Pack Quantity: 1
• Pack Quantity Unit: Each

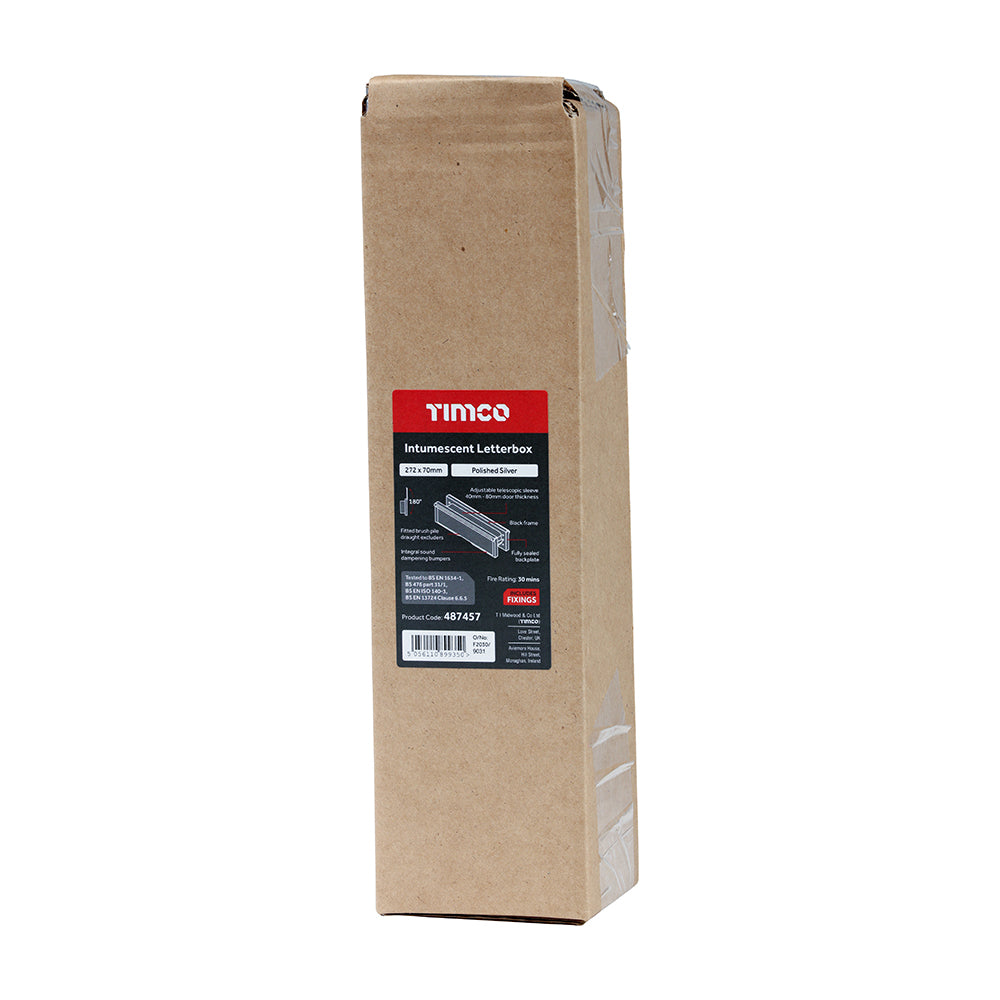

• Pack Type: Box
• Pack Weight kg: 0.540
• Pallet Qty Packs: 270
• Product Code: 487457
• Size inch: 10
• Size mm: 272 x 70
• SKU Barcode: 5056110899350
• Width inch: 10
• Width mm: 272
